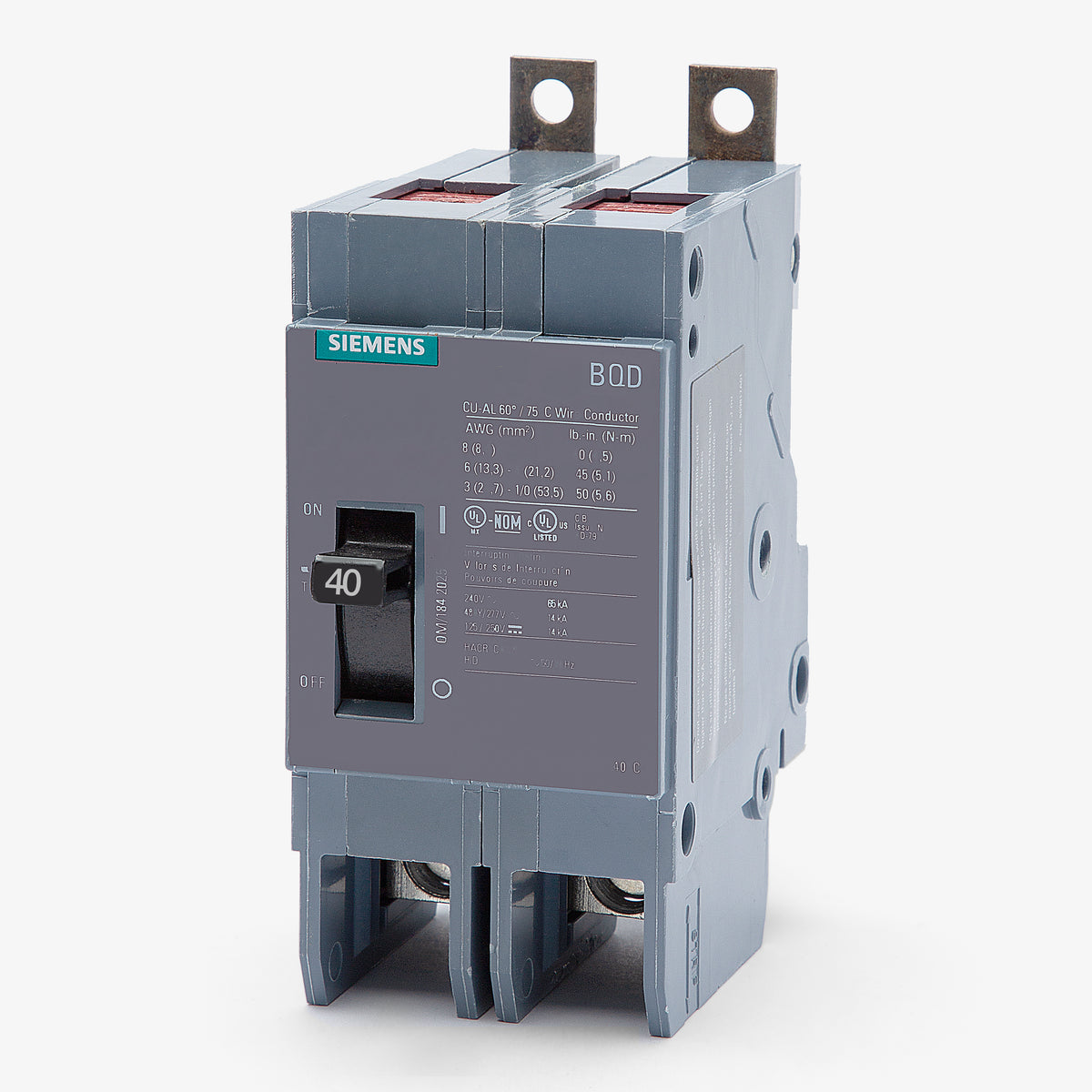

Siemens BQD240 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
BQD240
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD240 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD240 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD240 |
| Series | BQD |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens BQD240 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD240-R |
| Series | BQD |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable power distribution, the Siemens BQD240 is a 40A, 2-pole molded case circuit breaker. It protects commercial branch circuits using proven thermal-magnetic trip technology. Designed for seamless integration, this breaker mounts into Siemens P1-P5 panelboards. It utilizes a bolt-on connection and includes load-side lugs accommodating 14-6 AWG copper wire. Rated 65 kAIC at 240V and 14 kAIC at 480Y/277V, it provides robust fault protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD240 |
| Series | BQD |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the BQD240 circuit breaker?
The BQD240 is a bolt-on breaker designed specifically for installation in Siemens P1, P2, P3, P4, and P5 commercial panelboards.
Can the BQD240 be used as a back-fed main breaker?
Yes, this breaker can be configured as a back-fed main in Siemens P1 panelboards when installed with the Siemens MBKBFA hold-down kit to ensure code compliance.
Is the Siemens BQD240 suitable for reverse feed applications?
Yes, Siemens BQD series molded case circuit breakers are rated for reverse feed applications.
Is this breaker HACR rated for HVAC equipment?
Yes, the BQD240 is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
What is the difference between Siemens BQD and CQD circuit breakers?
BQD breakers are designed to bolt directly onto the bus of Siemens commercial panelboards. CQD breakers share the same electrical characteristics but are designed for independent surface mounting or DIN rail installation in OEM equipment.
