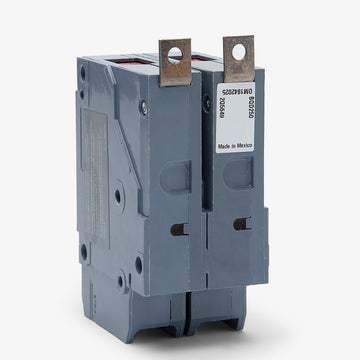

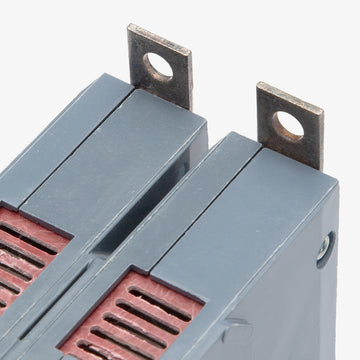

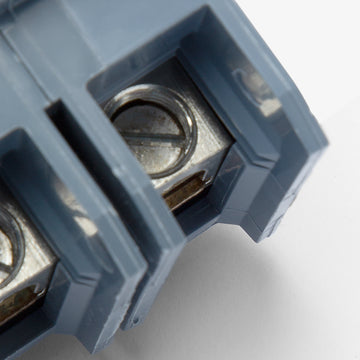

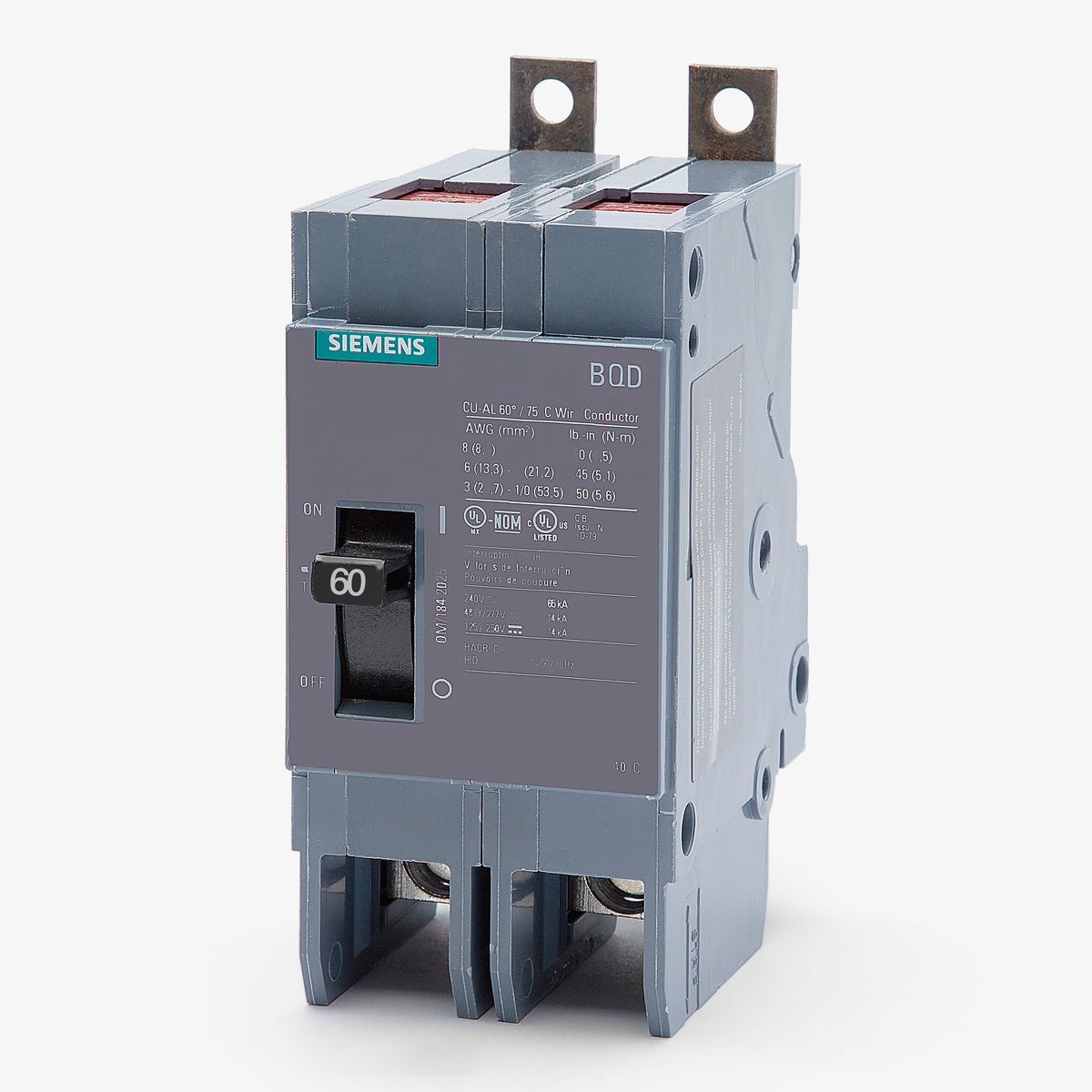

Siemens BQD260 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
BQD260
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD260 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD260 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD260 |
| Series | BQD |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens BQD260 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD260-R |
| Series | BQD |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, this 2-pole 60A molded case circuit breaker provides reliable thermal-magnetic protection. It features a 14kAIC interrupt rating at 480Y/277VAC, making it ideal for standard industrial environments. Designed for seamless integration, the breaker mounts into Siemens P1, P2, P3, P4, and P5 panelboards. The bolt-on connection ensures a stable and secure fit for continuous power distribution. This BQD frame breaker is HACR rated for HVAC system compatibility.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD260 |
| Series | BQD |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersIs the Siemens BQD260 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the BQD260 be reverse fed?
Yes, Siemens BQD circuit breakers are suitable for reverse feed applications.
Can I use the BQD260 on an ungrounded or corner-grounded 480V Delta system?
No. The BQD260 has a slash voltage rating of 480Y/277VAC, meaning it is only suitable for solidly grounded Wye systems. It is not rated for 3-phase 480V Delta applications.
What is the difference between the Siemens BQD260 and CQD260?
Both are 60A, 2-pole breakers with identical electrical ratings, but they have different mounting styles. The BQD260 is a bolt-on breaker for Siemens panelboards, while the CQD260 is designed for DIN rail or surface mounting.
Can the BQD260 be used as a main breaker in a Siemens P1 panelboard?
Yes, but when used as a back-fed main breaker, it requires a separate hold-down kit (such as the Siemens MBKBFA) to secure it to the panelboard in compliance with electrical code.
