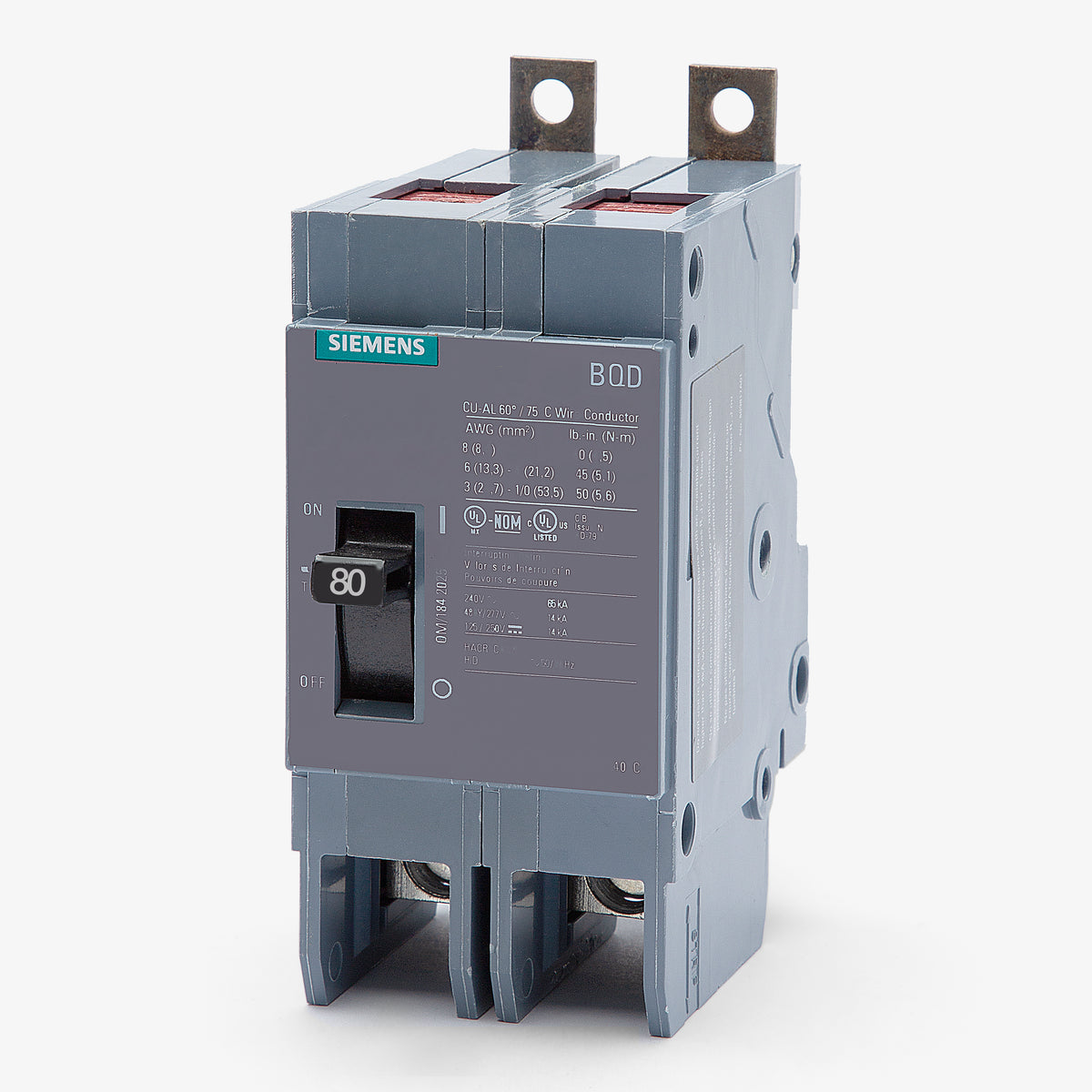

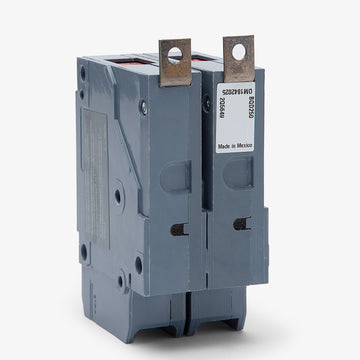

Siemens BQD280 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
BQD280
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD280 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD280 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD280 |
| Series | BQD |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Sold out
Quantity
Siemens BQD280 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD280-R |
| Series | BQD |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial use, this 80-amp Siemens MCCB utilizes fixed thermal-magnetic trip technology to guard against overloads. The compact BQD frame maximizes available space within the enclosure. This unit is specifically manufactured to mount into Siemens P1 through P5 panelboards. Its bolt-on configuration guarantees a stable mechanical and electrical bond to the panel bus. Capable of interrupting 65 kAIC at 240V, it meets rigorous safety standards and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD280 |
| Series | BQD |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Product FAQs
8 answersWhich panelboards are compatible with the Siemens BQD280 circuit breaker?
The BQD280 is a bolt-on molded case circuit breaker designed specifically for use with Siemens P1, P2, P3, P4, and P5 panelboards.
What wire sizes are accepted by the lugs on the BQD280?

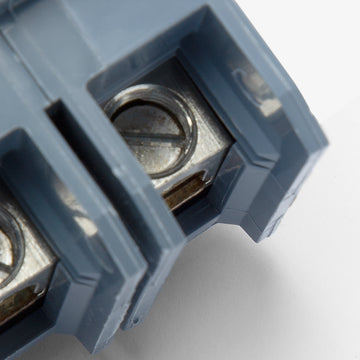

The factory-installed lugs on the BQD280 accept 8-1 AWG copper (Cu) or 6-1/0 AWG aluminum (Al) conductors.
What is the difference between Siemens BQD and CQD frame circuit breakers?
While both share the same frame size and electrical ratings, BQD breakers like the BQD280 are designed for bolt-on installation in panelboards. CQD breakers are designed for independent mounting on a standard DIN rail or for surface mounting.
Is the Siemens BQD280 suitable for reverse feed applications?
Yes, Siemens BQD series circuit breakers, including the 80A BQD280, are suitable for reverse feed applications.
Is the BQD280 HACR rated?
Yes, Siemens BQD breakers in the 15A to 100A range are HACR rated, making the BQD280 suitable for use with heating, air conditioning, and refrigeration equipment.
Can the BQD280 be used in DC electrical systems?
Yes, the BQD280 is rated for DC applications up to 125/250VDC, providing an interrupting capacity of 14kAIC for direct current circuits.
Does the BQD280 feature adjustable trip settings?
No, the BQD280 has a fixed thermal magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory-set and cannot be adjusted in the field.
How does the BQD280 mount into the panelboard?

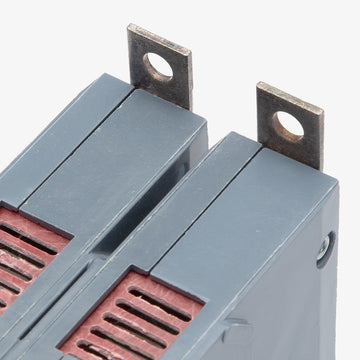

The BQD280 features a bolt-on connection type, securing directly to the busbars of compatible Siemens panelboards rather than snapping into place.
