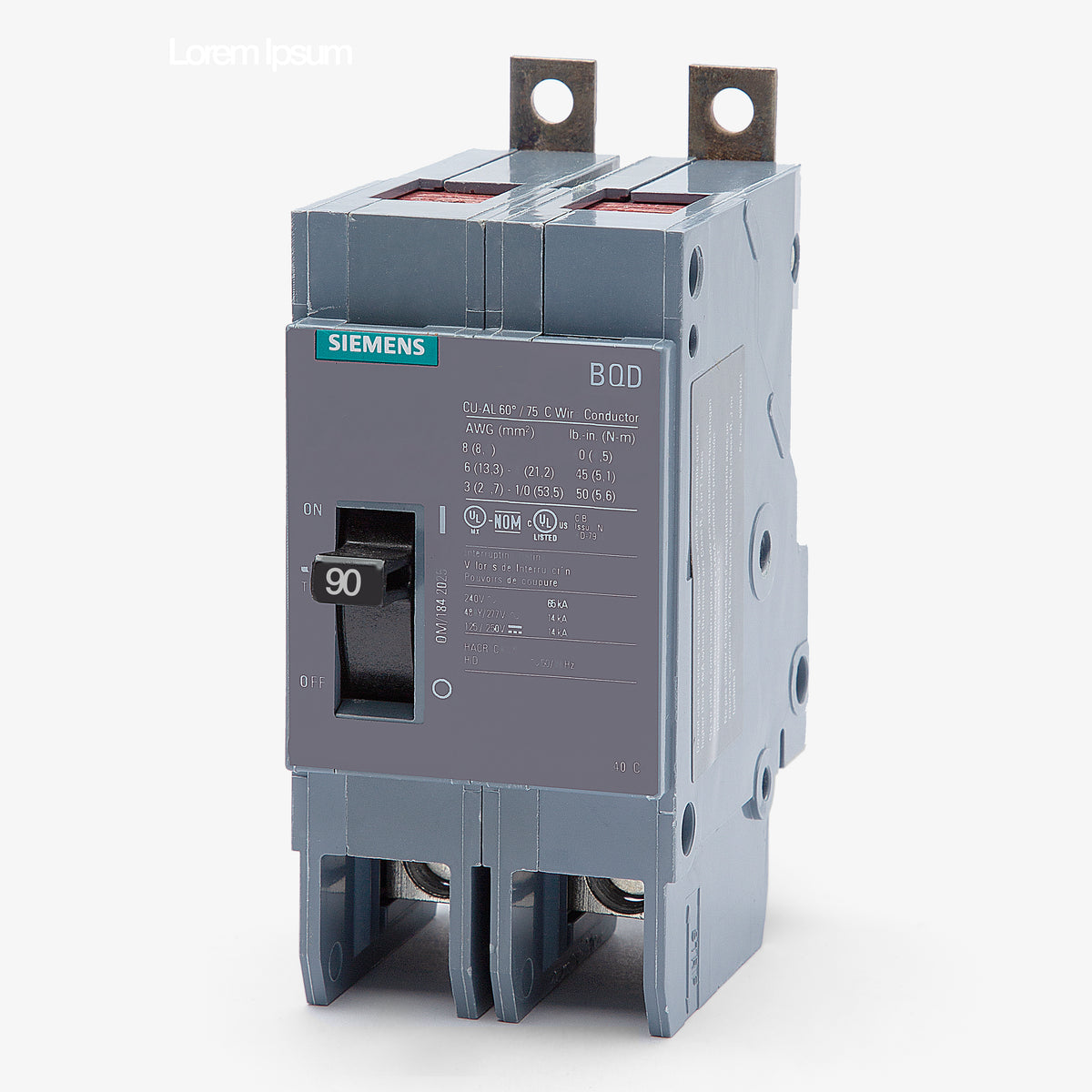

Siemens BQD290 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
BQD290
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD290 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD290 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD290 |
| Series | BQD |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Sold out
Quantity
Siemens BQD290 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD290-R |
| Series | BQD |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, the Siemens BQD290 delivers reliable 90-amp thermal-magnetic protection in a compact bolt-on frame. It handles demanding electrical loads with an interrupt rating of 65kA at 240VAC and 14kA at 480Y/277VAC. The unit mounts seamlessly into Siemens P1, P2, P3, P4, and P5 panelboards, utilizing a low-tab connection for secure installation. This HACR-rated MCCB includes load side lugs and features a trip-free mechanism for enhanced safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD290 |
| Series | BQD |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Product FAQs
6 answersCan I install the Siemens BQD290 in a standard residential load center?
No. The BQD290 is a bolt-on molded case circuit breaker designed specifically for Siemens P1, P2, P3, P4, and P5 commercial panelboards. It is not compatible with plug-on residential load centers.
Is there a DIN rail mountable version of the BQD290?
Yes. The Siemens CQD series is the DIN rail and surface-mountable equivalent to the BQD series. You will need to source the CQD equivalent for those specific mounting applications.
What does the LI trip function indicate on this breaker?
The LI designation means this thermal-magnetic breaker includes fixed Long-Time (thermal) protection against overloads and Instantaneous (magnetic) protection against short circuits.
Can the BQD290 be used in DC power systems?
Yes, this breaker is rated for use in DC applications up to 125/250VDC, providing an interrupting capacity of 14kAIC at those voltages.
Is the BQD290 HACR rated for HVAC applications?
Yes, Siemens BQD breakers in 1, 2, and 3-pole configurations from 15A to 100A are HACR marked for use with heating, air conditioning, and refrigeration equipment.
Is the Siemens BQD290 suitable for reverse feed applications?
Yes, Siemens BQD series molded case circuit breakers are UL listed and suitable for reverse feed applications.
