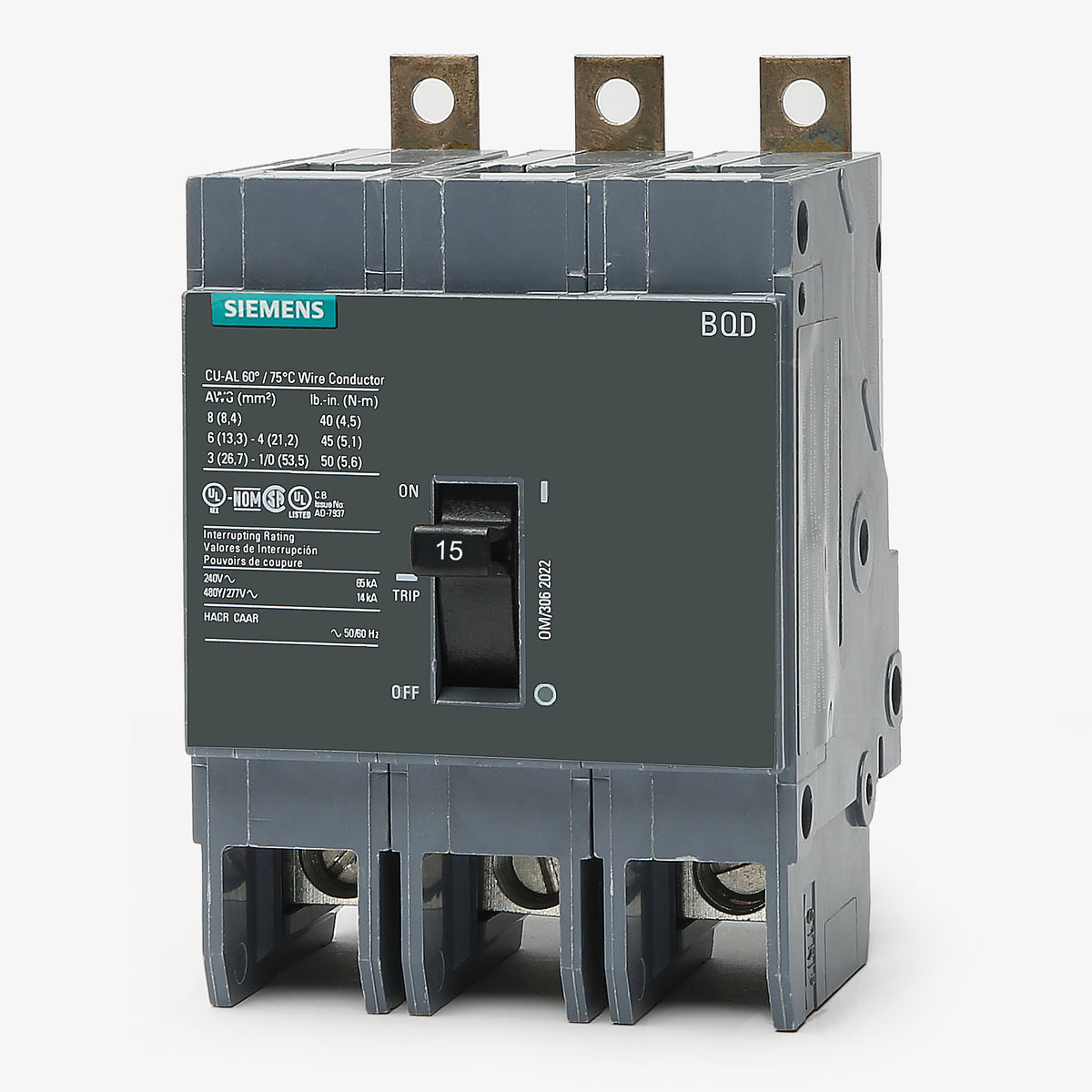

Siemens BQD315 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
BQD315
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens BQD315 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD315 |
| Series | BQD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Reverse Feed |
Quantity
Siemens BQD315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD315-R |
| Series | BQD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Reverse Feed |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON family, this 15A, three-pole molded case circuit breaker delivers robust overcurrent protection for commercial applications. It features fixed thermal and magnetic trip units to ensure consistent performance. Installation utilizes a bolt-on mounting style designed for Siemens P1 through P5 panelboards. The unit includes load side lugs accommodating 14-6 AWG copper wire. Rated for 65kAIC at 240VAC and 14kAIC at 480Y/277VAC, it is HACR rated for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD315-R |
| Series | BQD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersCan I use the BQD315 in a standard Siemens residential load center?
No. BQD breakers feature a bolt-on connection designed for commercial P-series panelboards (P1 through P5). They are not compatible with residential EQ or PL load centers, which require plug-on or QP-style breakers.
Is the BQD315 circuit breaker suitable for reverse feed applications?
Yes, standard Siemens BQD molded case circuit breakers are approved and listed for reverse feed installations.
What does the HACR rating on this breaker signify?
The HACR designation indicates the breaker is tested and UL listed for safe use with Heating, Air Conditioning, and Refrigeration equipment, meaning it can safely handle the specific motor inrush currents associated with those loads.
Does this breaker carry an SWD (Switching Duty) rating?
No. While Siemens provides SWD ratings for 1-pole 15A and 20A BQD breakers used to switch fluorescent lighting, 3-pole models like the BQD315 do not carry the SWD mark.
What is the difference between Siemens BQD and CQD series breakers?
Both series share identical dimensions and internal trip mechanisms, but their mounting configurations differ. BQD breakers are built for bolt-on panelboard mounting, while CQD breakers are designed for surface mounting or attachment to a standard DIN rail.
Is the BQD315 rated for 100% continuous duty?
No. Like most standard commercial molded case circuit breakers, the BQD315 carries an 80% continuous duty rating. Continuous loads should not exceed 80% of its 15-amp rating, which equals 12 amps.
Is this breaker approved for High-Intensity Discharge (HID) lighting?
Yes, 3-pole Siemens BQD circuit breakers in the 15A to 50A range carry an HID rating at 480Y/277V AC, making them fully suitable for high-intensity discharge lighting circuits.
Can I install the BQD315 on a 3-phase delta 480V grounded B phase system?
No, Siemens specifically restricts BQD circuit breakers from being used in 3-phase delta 480V grounded B phase applications. They are intended for use on 480Y/277V solidly grounded Wye systems.
