Siemens BQD32000S01 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Siemens
BQD32000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD32000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

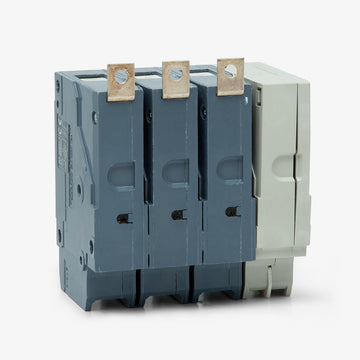

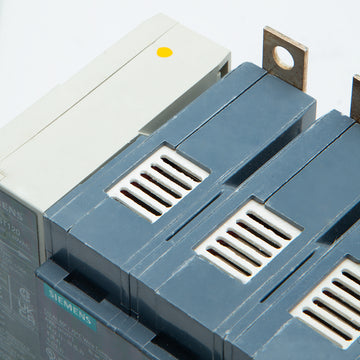

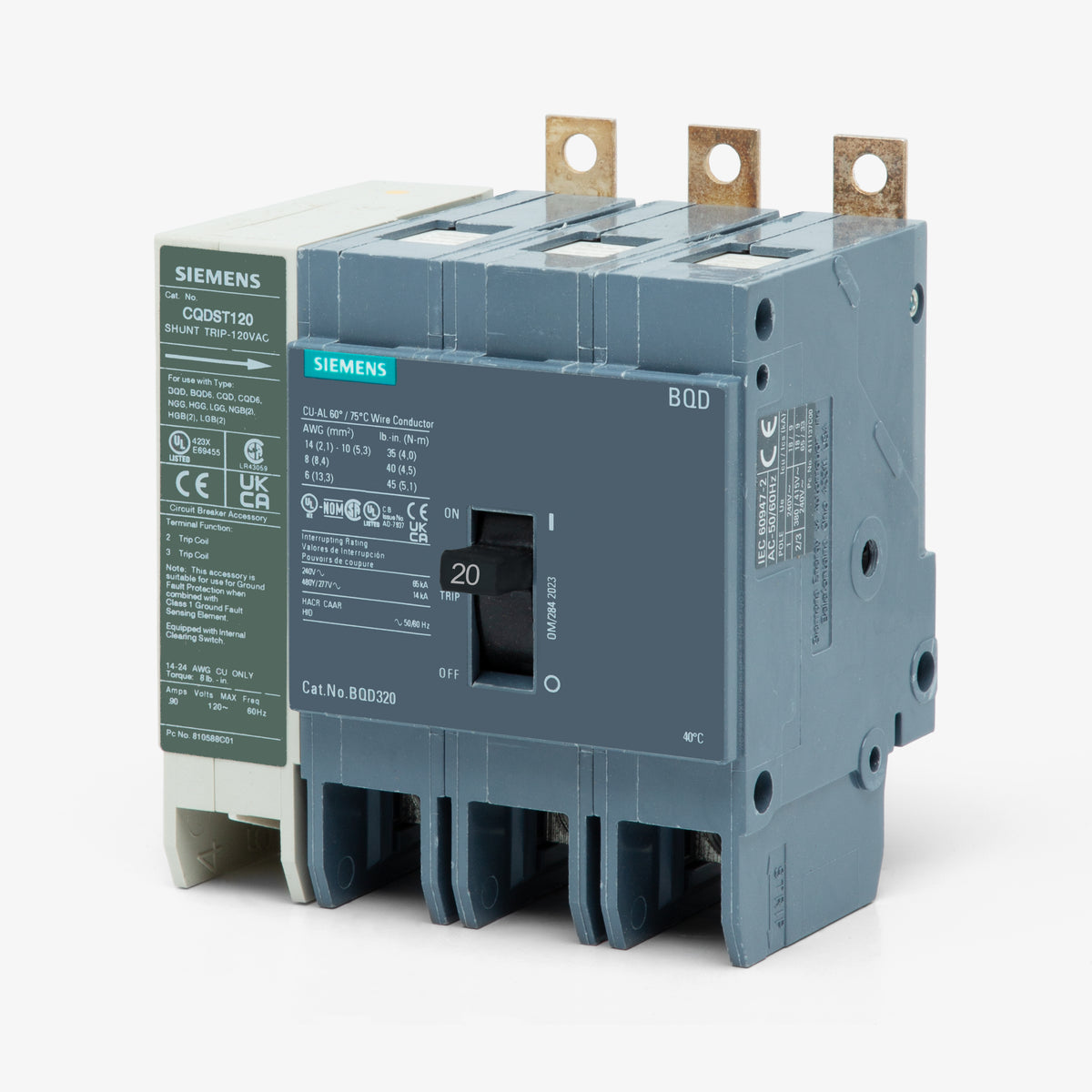

Siemens BQD32000S01 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens BQD32000S01 is a 3-pole, 20A molded case circuit breaker from the SENTRON family. It provides reliable long-time and instantaneous thermal-magnetic protection for demanding electrical systems. This bolt-on MCCB installs seamlessly into Siemens P1, P2, P3, P4, and P5 panelboards. It includes load-side lugs for straightforward wiring.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the BQD32000S01?
This BQD frame breaker is designed for bolt-on installation in Siemens SENTRON P1, P2, P3, P4, and P5 panelboards.
How does the S01 suffix change the functionality of the standard BQD32000 breaker?
The S01 designation means this breaker includes a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely via a control signal, which is commonly used for emergency stops or automated load shedding.

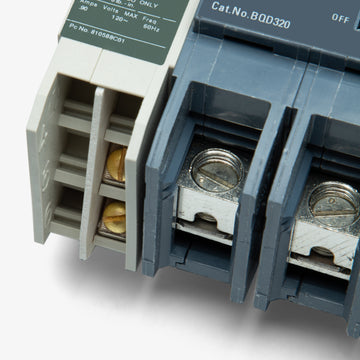

What type of conductors can be landed on the BQD32000S01 load lugs?
The factory-installed lugs are dual-rated for both copper and aluminum wire. They accept 14 to 6 AWG copper or 12 to 6 AWG aluminum conductors.
Can the trip curve be adjusted in the field for the BQD32000S01?
No, this thermal-magnetic breaker has fixed long-time and instantaneous (LI) trip functions. The thermal and magnetic trip points cannot be adjusted.
Is the BQD32000S01 suitable for high-fault applications at 240V?
Yes, while it is rated for 14kA at 480Y/277VAC, it carries a fully rated interrupting capacity of 65kA at 240VAC, making it suitable for higher fault current applications at the lower voltage.
Does the BQD32000S01 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker providing overload and short-circuit protection. It does not include GFCI or AFCI capabilities.
