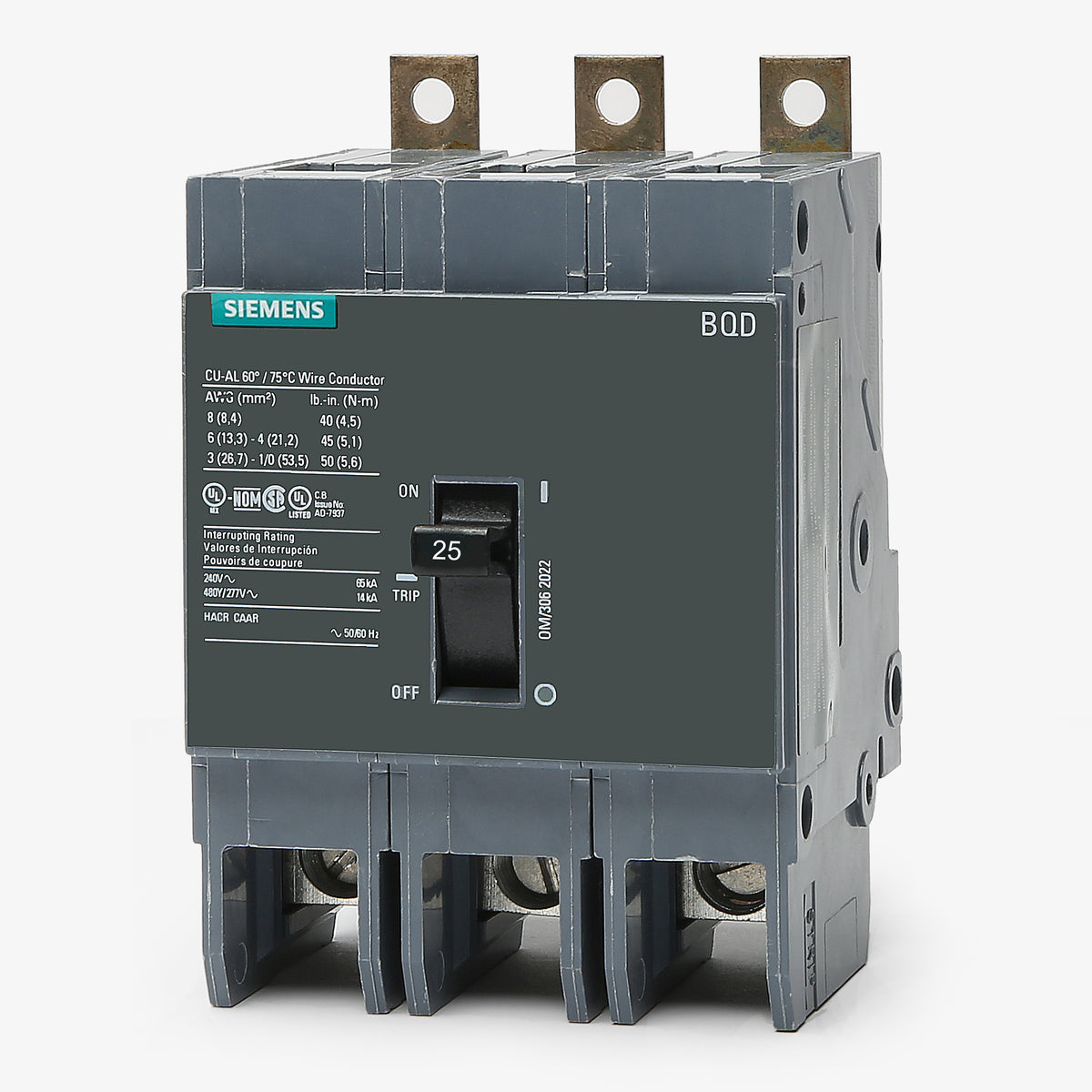

Siemens BQD325 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
BQD325
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD325 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD325 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD325 |
| Series | BQD |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Sold out
Quantity
Siemens BQD325 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD325-R |
| Series | BQD |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding environments, the Siemens BQD325 is a 25A, 3-pole molded case circuit breaker from the SENTRON family. It provides essential long-time and instantaneous thermal-magnetic protection for commercial and industrial electrical systems. This bolt-on MCCB is fully compatible with Siemens P1, P2, P3, P4, and P5 panelboards. It comes equipped with load-side lugs for efficient installation. Rated at 14kAIC at 480Y/277V, this breaker is HACR and HID rated for versatile use.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD325 |
| Series | BQD |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Product FAQs
6 answersWhich Siemens panelboards accept the BQD325 circuit breaker?
The BQD325 is designed for installation in Siemens P1, P2, P3, P4, and P5 series panelboards.
What wire sizes are accepted by the load lugs on the BQD325?

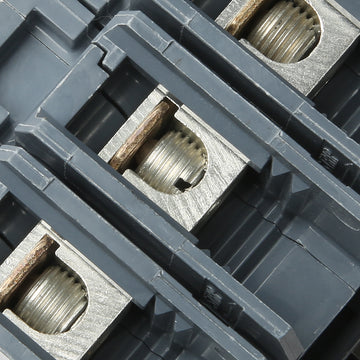

The load terminals accommodate 14 to 6 AWG copper (Cu) wire or 12 to 6 AWG aluminum (Al) wire. The connectors are UL listed for 60 and 75 degree Celsius conductors.
Does the BQD325 include both line and load lugs?

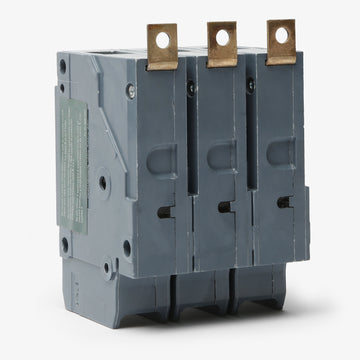

No. Because it is a panelboard-mounted breaker, the BQD325 has a bolt-on connection for the line side to attach directly to the panel bus. It features standard wire lugs on the load side only.
Will the modern Siemens BQD325 replace an older I-T-E branded BQD325?
Yes. Siemens acquired I-T-E and maintained the BQD product frame. The current Siemens BQD325 serves as a direct, drop-in replacement for legacy I-T-E breakers with the exact same catalog number.
Can this 480Y/277VAC breaker be applied on a 480V Delta system?
No. Circuit breakers with a 480Y/277V slash rating are designed specifically for solidly grounded Wye systems. They must not be used on ungrounded Delta or corner-grounded Delta systems, as the line-to-ground voltage on those systems exceeds the 277V maximum rating of the breaker.
What is the difference between the BQD325 and CQD325 breakers?
Both are 25A, 3-pole thermal-magnetic breakers within the same frame group, but they have different mounting styles. The BQD325 is a bolt-on breaker for panelboards, whereas the CQD325 is designed for DIN rail or surface mounting and includes lugs on both the line and load ends.
