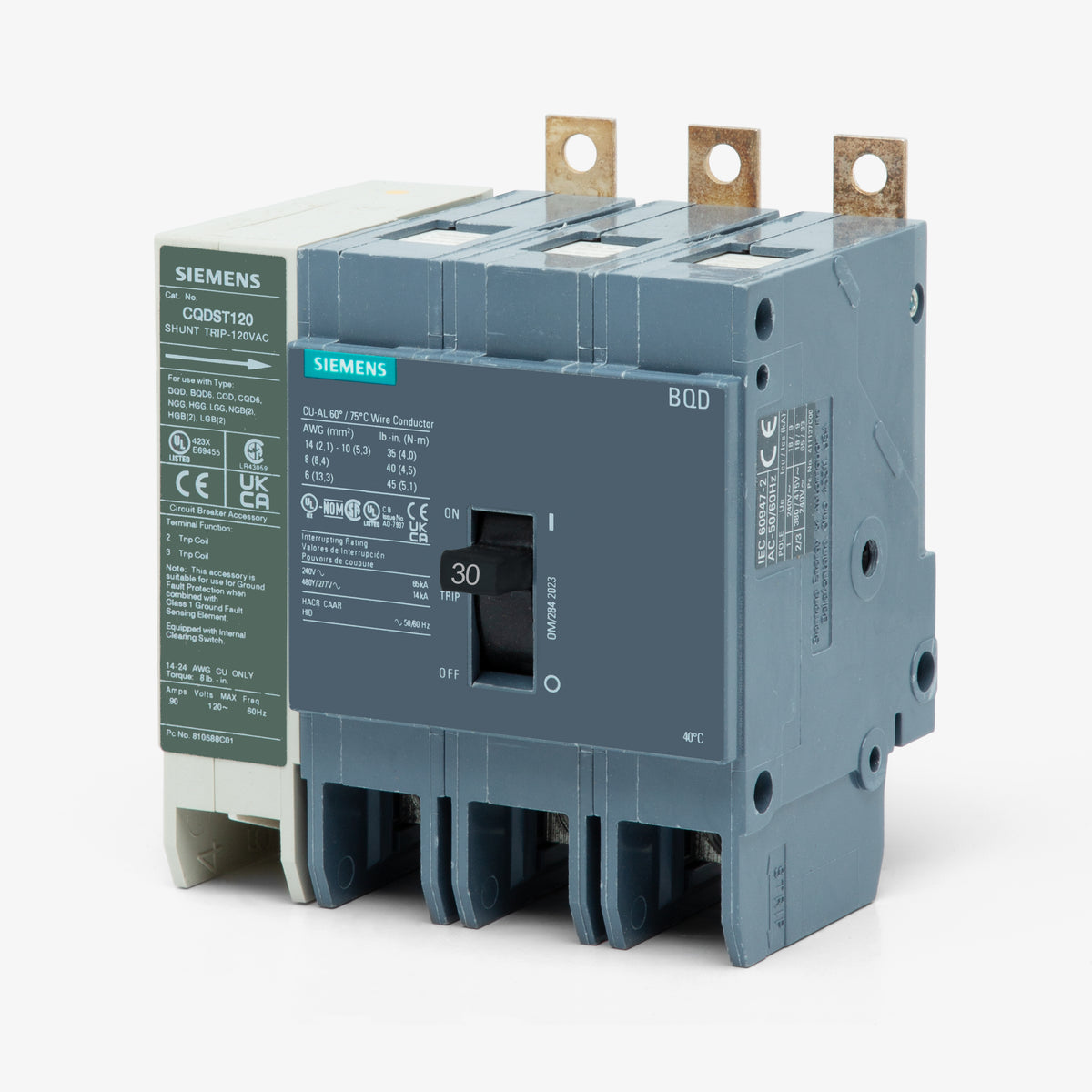

Siemens BQD33000S01 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
BQD33000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD33000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD33000S01 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description

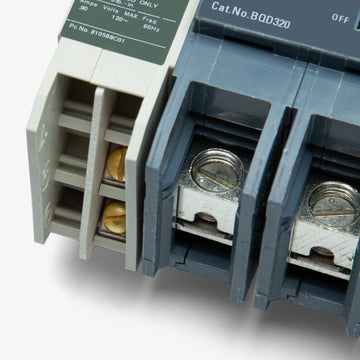

Featuring an integrated 120VAC shunt trip mechanism, this 30-amp molded case breaker enables remote circuit disconnection for safety or control purposes. The thermal-magnetic trip unit delivers precise overcurrent and short-circuit protection. The device mounts securely into Siemens P1, P2, P3, P4, and P5 panelboards using a standard bolt-on configuration. Included load-side lugs accommodate a wide range of copper and aluminum wire gauges.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat does the S01 suffix indicate on the BQD33000S01?
The S01 suffix means this breaker is factory equipped with a 120VAC shunt trip. This allows the breaker to be tripped remotely by applying voltage to the shunt trip coil, which is often required for emergency shutdown systems.
Which Siemens panelboards accept the BQD33000S01?
This bolt-on breaker is designed for direct installation into Siemens P1, P2, P3, P4, and P5 panelboards.
Can this breaker be used in a 3-phase delta 480V grounded B phase system?
No. Siemens BQD frame breakers are not suitable for 3-phase delta 480V grounded B phase applications. They are intended for use on solid grounded Wye systems up to 480Y/277VAC.
Is the BQD33000S01 suitable for reverse feed applications?
Yes, Siemens BQD circuit breakers are rated for reverse feed applications. This allows you to wire the line and load connections in either direction without compromising the thermal-magnetic trip unit performance.
Does this 3-pole breaker carry an HACR rating?
Yes, Siemens BQD breakers from 15 to 100 amps are HACR marked. This makes the BQD33000S01 suitable for protecting heating, air conditioning, and refrigeration motor group circuits.
What is the physical width of this 3-pole breaker?
The BQD frame features a 1-inch pole width. As a 3-pole device, the total width is 3 inches.
How is the line connection secured in the panelboard?

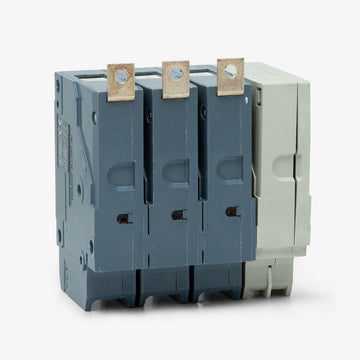

The breaker utilizes a bolt-on connection with an interlocking design. This allows for a one-screw installation that fastens the line end bus tab directly to the panelboard busbar.
Can I use this breaker for switching high-intensity discharge (HID) lighting?
No. While certain 1-pole BQD breakers carry HID and SWD ratings, the 3-pole BQD33000S01 is not marked for switching duty or HID lighting applications.
