Siemens BQD35000S01 Molded Case Circuit Breaker
- 50A
- 3 Pole

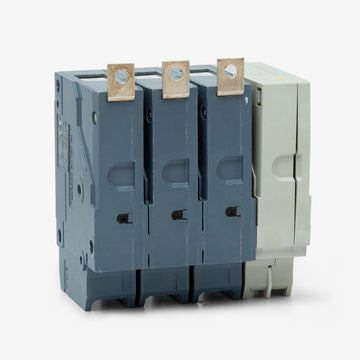

- Bolt-On
Siemens
BQD35000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD35000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

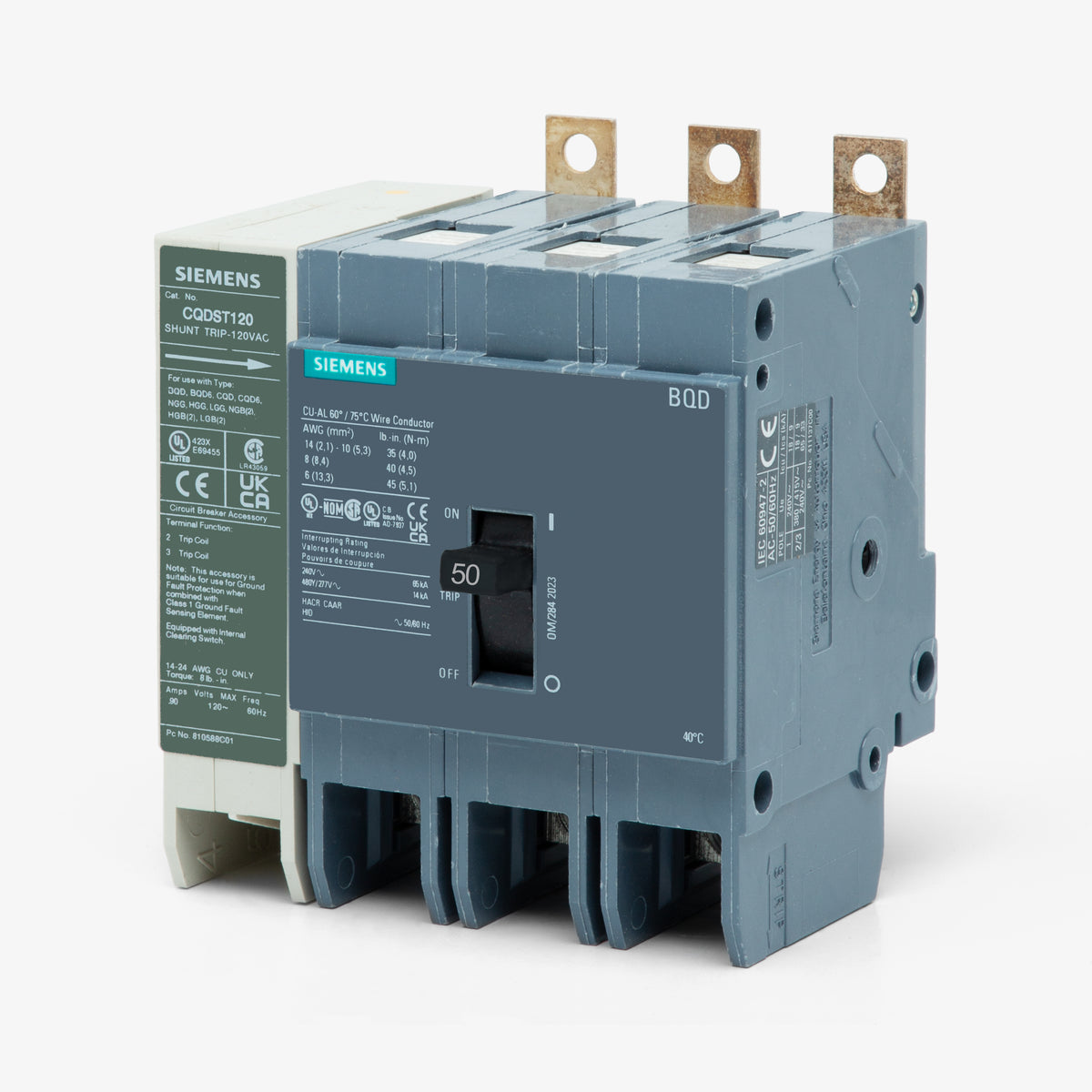

Siemens BQD35000S01 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens BQD35000S01 is a 3-pole, 50A molded case circuit breaker equipped with a 120VAC shunt trip mechanism. This thermal-magnetic breaker delivers reliable overload and short-circuit protection for demanding applications. It installs into Siemens P1, P2, P3, P4, and P5 panelboards using a secure bolt-on connection. The unit carries a 14kAIC rating at 480Y/277V and a 65kAIC rating at 240V, ensuring robust fault clearing.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards accept the BQD35000S01 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards.
What does the S01 suffix indicate on the BQD35000S01 catalog number?

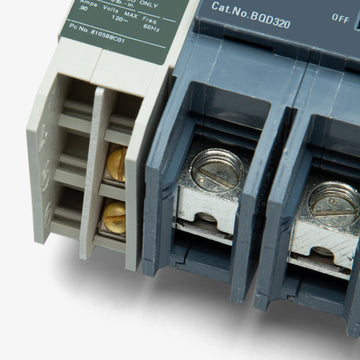

The S01 suffix designates that this breaker is equipped with a factory-installed 120VAC shunt trip mechanism for remote tripping capabilities.
What wire sizes are supported by the lugs on this 50A breaker?
The factory-installed lugs accommodate 8 to 1 AWG copper (Cu) conductors or 6 to 1/0 AWG aluminum (Al) conductors.
Are Siemens BQD series breakers suitable for reverse feed applications?
Yes, Siemens BQD molded case circuit breakers are suitable for reverse feed applications.
Can the BQD35000S01 be used in a 3-phase delta 480V grounded B phase system?
No, Siemens BQD breakers are not suitable for 3-phase delta 480VAC grounded B phase applications.
Is the trip unit on the BQD35000S01 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit that cannot be adjusted or interchanged.
What is the physical width of the BQD35000S01 breaker?
Siemens BQD series circuit breakers feature a 1-inch pole width, making this 3-pole breaker 3 inches wide overall.
