Siemens CQD320 Molded Case Circuit Breaker
- 20A
- 3 Pole
- DIN Rail
Siemens
CQD320
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD320
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

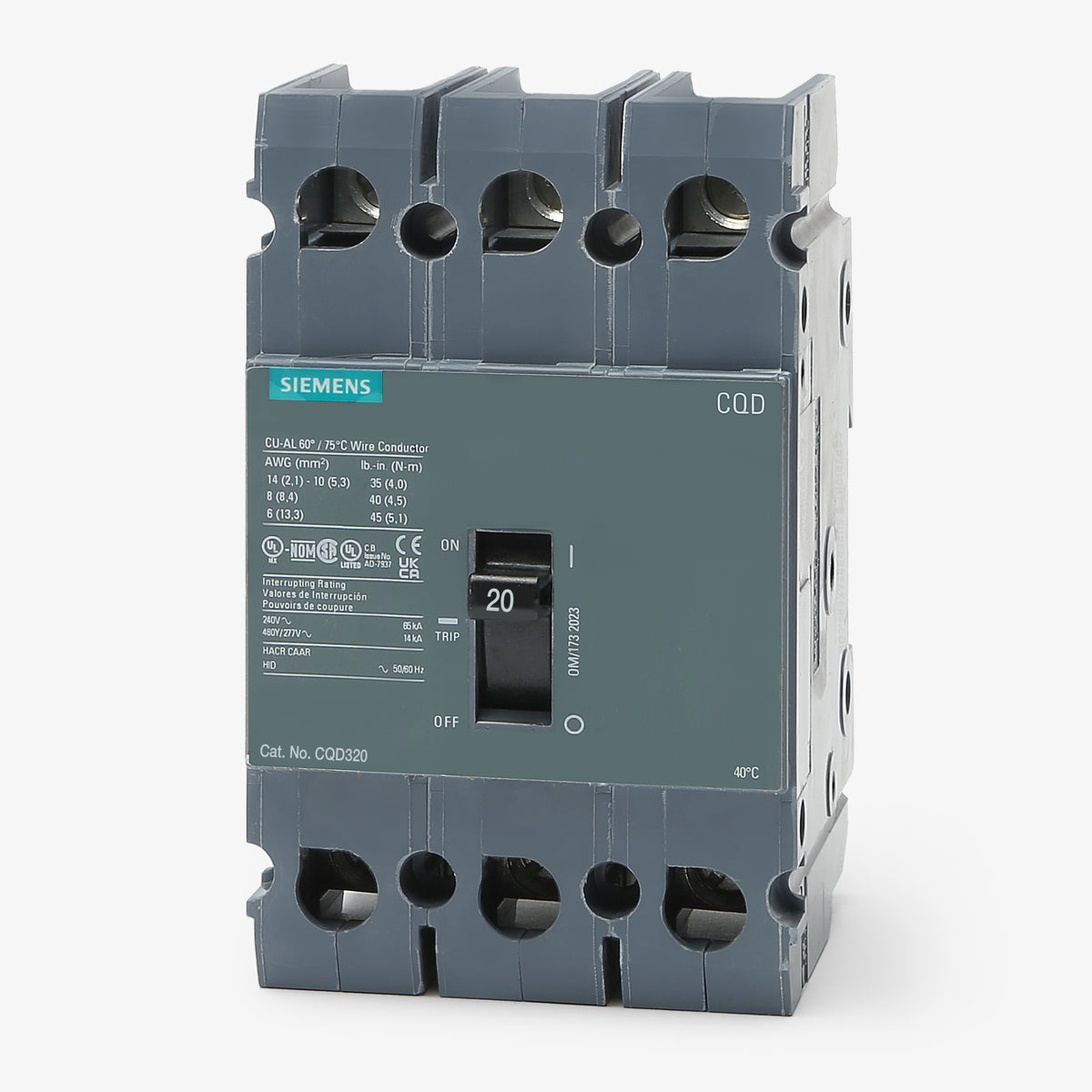

Siemens CQD320 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
The Siemens CQD320 is a 3-pole, 20-amp molded case circuit breaker engineered for robust commercial and industrial power distribution. It utilizes a non-interchangeable thermal-magnetic trip unit to protect against overloads and short circuits. Designed for flexible integration, this breaker mounts onto standard DIN rails. It is an excellent choice for OEM control panels, machinery, and compatible DIN rail enclosures. With an interrupting capacity of 14 kAIC at 480Y/277VAC, it is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CQD320 |
| Series | CQD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | CQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Enclosures, OEM Panels |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs

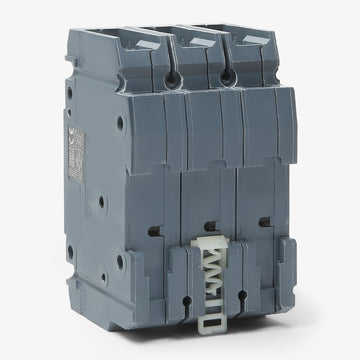

6 answersHow does the Siemens CQD320 mount inside an enclosure?
The CQD320 is designed to snap directly onto a standard 35mm DIN rail. This makes it ideal for OEM control panels and machinery where DIN rail mounting is used, rather than traditional panelboard bolt-on connections.
What is the difference between Siemens CQD and BQD circuit breakers?
Both series share the same 1-inch per pole width and internal mechanisms, but they use different mounting styles. The CQD series is designed for DIN rail mounting, while the BQD series is designed for panelboard or bolt-on installations.
Can the CQD320 breaker be reverse fed?
Yes, Siemens CQD circuit breakers are UL Listed for reverse feed applications. Because they feature a non-interchangeable trip unit, power can be supplied to either the line or load side terminals safely.

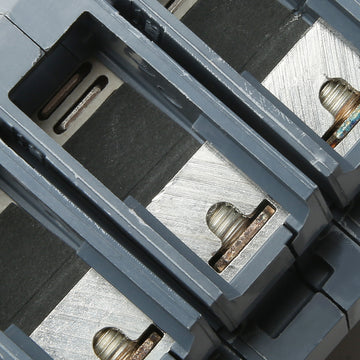

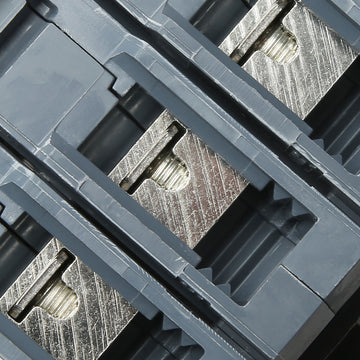

What type of wire connections does this breaker use?
It features a feed-thru connection with factory-installed mechanical lugs on both the line and load sides. The lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire.
Can I add accessories like a shunt trip to the CQD320?
Yes, the CQD frame supports field-installable internal accessories such as shunt trips, auxiliary switches, and alarm switches. These accessory modules mount to the left side of the circuit breaker.
Is this breaker suitable for direct current (DC) applications?
Yes, in addition to its AC ratings, the CQD320 is rated for use on 125/250VDC systems with an interrupting capacity of 14kAIC.
