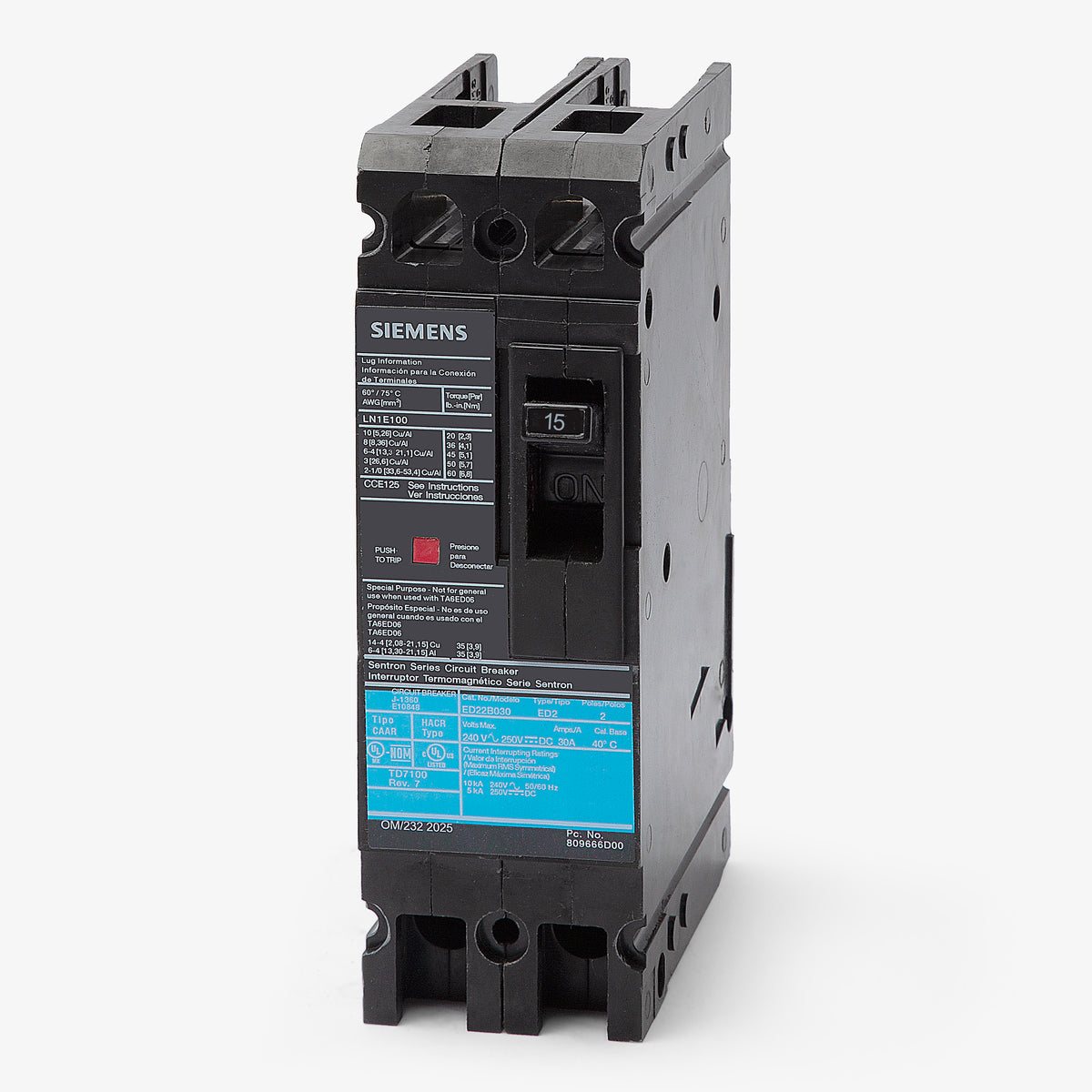

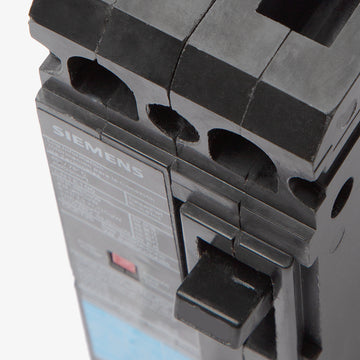

Siemens ED22B015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
ED22B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B015 |
| Series | ED2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED22B015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B015-R |
| Series | ED2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description

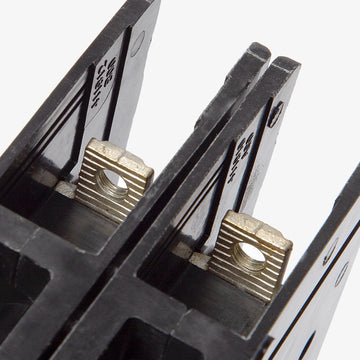

Rated at 10 kAIC at 240VAC, the Siemens ED22B015 is a 2-pole, 15A MCCB built for commercial applications. It utilizes fixed thermal-magnetic trip technology to deliver consistent protection. The ED2 frame breaker installs into Siemens P1, P2, P3, and Sentron panelboards. It features bolt-on mounting and includes load lugs that accept 14-10 AWG copper or 12-10 AWG aluminum wire. This unit is HACR rated and reverse feed capable, providing installation flexibility while meeting UL 489 standards.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B015 |
| Series | ED2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
4 answersCan the Siemens ED22B015 replace an older I-T-E breaker with the same catalog number?
Yes. Siemens acquired I-T-E and continued the ED frame product line. A modern Siemens ED22B015 is a direct replacement for an I-T-E ED22B015.
Is the ED22B015 circuit breaker HACR rated?
Yes, this ED2 frame breaker is HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can the ED22B015 be reverse fed?
Yes. Because it features a fixed, non-interchangeable thermal-magnetic trip unit, this breaker is not marked with line and load restrictions and is suitable for reverse feeding.
Does the ED22B015 mount directly to the bus in a Siemens P1 panelboard?
No. While it is designed for use in Siemens P1, P2, and P3 panelboards, bolt-on ED frame breakers require a separate mounting hardware kit or strap kit to connect to the panelboard bus.
