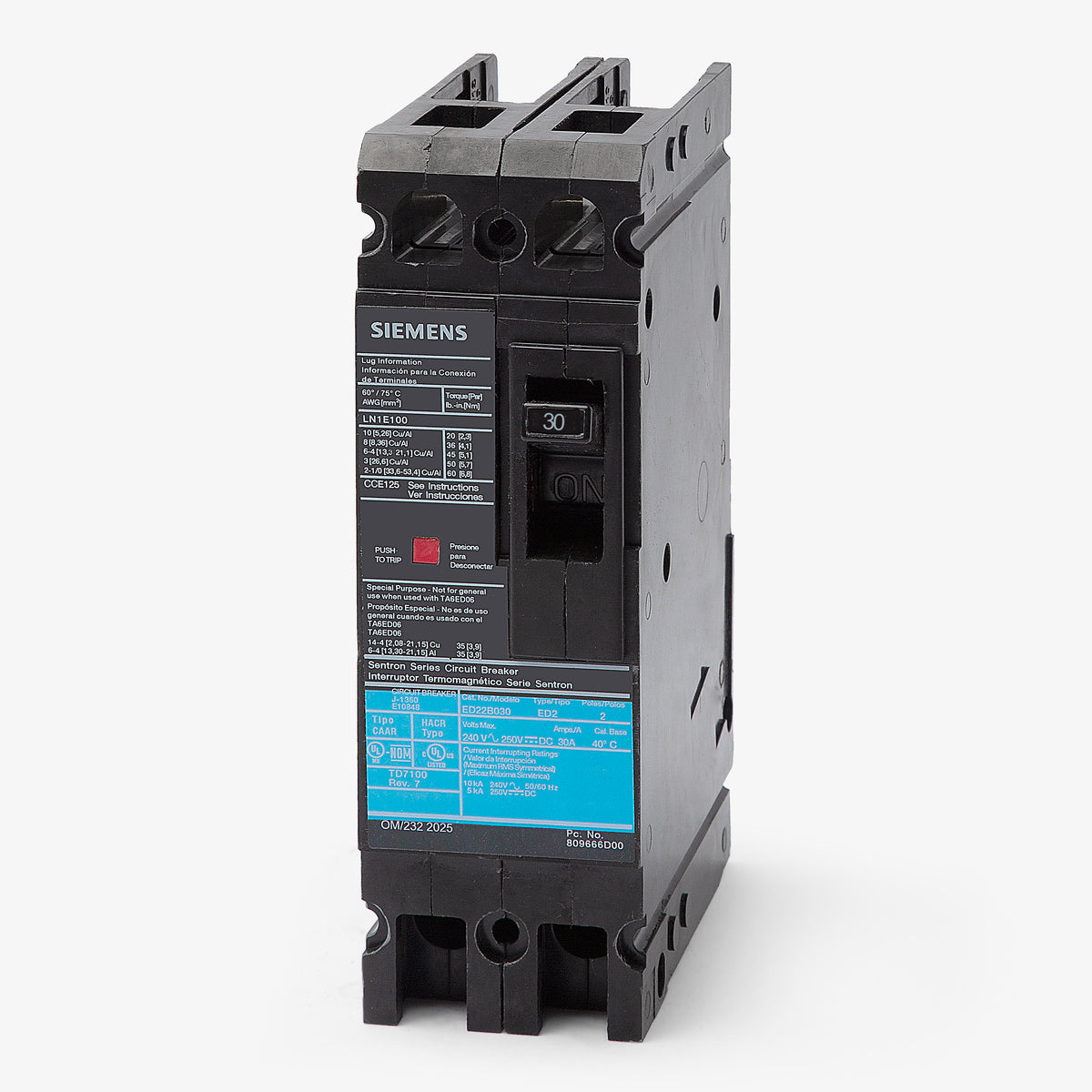

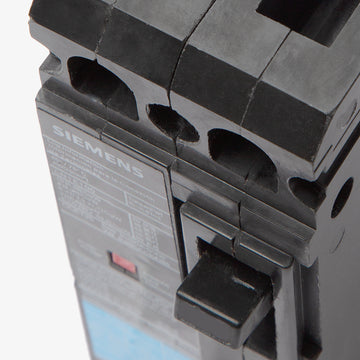

Siemens ED22B030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Siemens
ED22B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B030 |
| Series | ED2 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B030-R |
| Series | ED2 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for dependable commercial power management, the Siemens ED22B030 is a 30A, 2-pole molded case circuit breaker from the Sentron ED2 series. It utilizes a thermal-magnetic trip mechanism to defend against overloads and short circuits. The bolt-on design ensures a secure connection within Siemens P1, P2, and P3 panelboards or SB switchboards. Capable of reverse feeding, this HACR-rated breaker delivers a 10kAIC interrupting capacity at 240VAC for robust system safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B030 |
| Series | ED2 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersCan I use the Siemens ED22B030 to replace an older I-T-E breaker with the same catalog number?
Yes. Siemens acquired I-T-E, and the ED22B030 is the exact direct replacement for the older I-T-E branded versions, sharing the same physical dimensions and mounting.
Is the ED22B030 suitable for DC voltage applications?
Yes, this breaker is rated for up to 250VDC with a 5kA interrupting capacity, making it suitable for specific DC control circuits or battery systems.
Are lugs included with the ED22B030, and what wire types are supported?

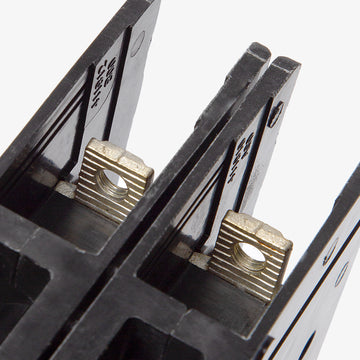

Yes, it includes standard lugs that accept 10 to 1/0 AWG wire. The terminals are rated for both copper (Cu) and aluminum (Al) conductors.
What hardware is required to install this breaker in a Siemens P1, P2, or P3 panelboard?
Installing an ED frame breaker in these panelboards requires a specific mounting kit. You will need an ED frame main or subfeed kit, or the appropriate twin mounting strap kit if installing it as a branch circuit.
What is the difference between the Siemens ED2 and ED4 frame circuit breakers?
The primary difference is the interrupting capacity. The ED2 series, like the ED22B030, is rated for 10kA at 240VAC, while the ED4 series offers a higher interrupting rating for systems with greater available fault current.
