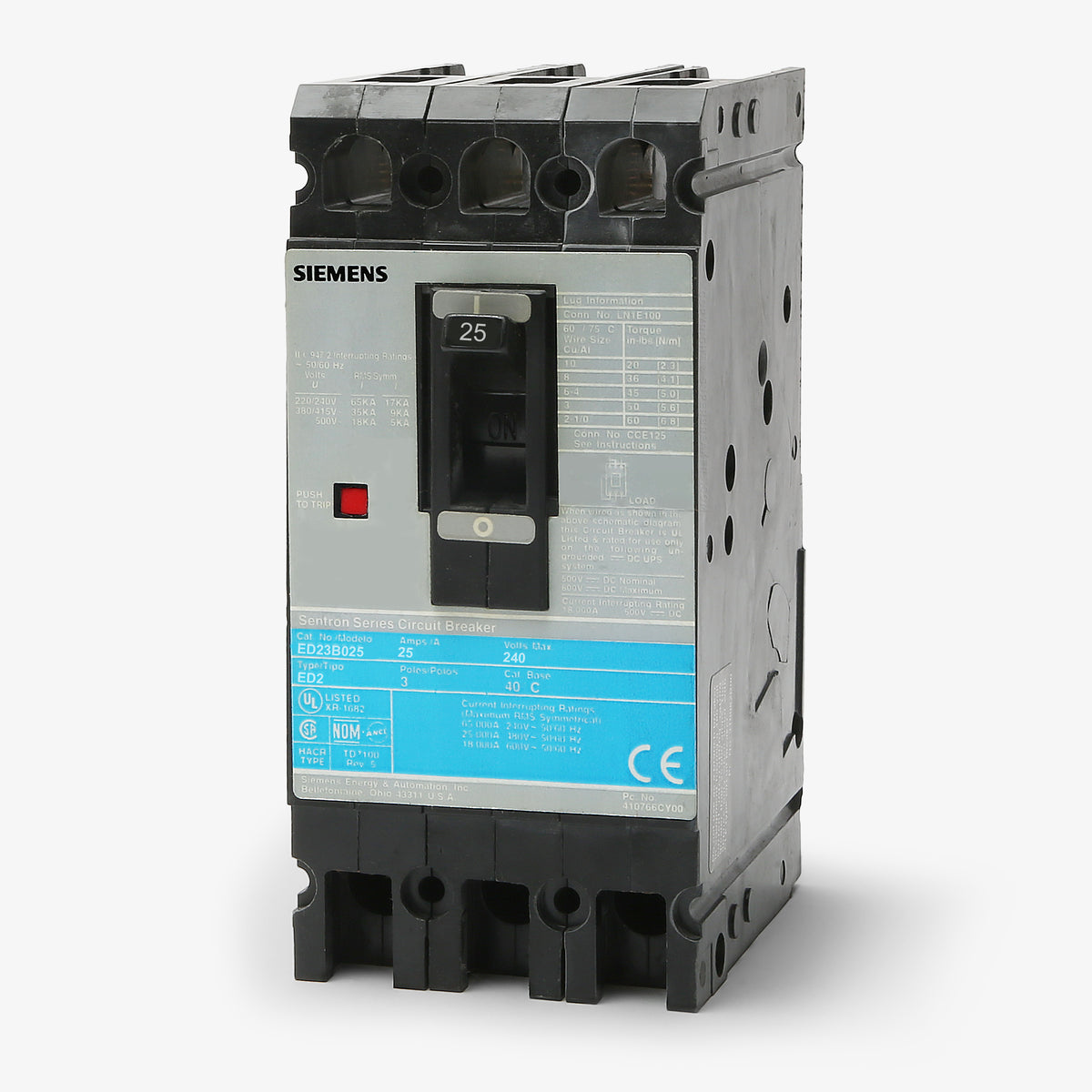

Siemens ED23B025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
ED23B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED23B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED23B025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED23B025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B025 |
| Series | ED2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED23B025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B025-R |
| Series | ED2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution, the ED23B025 is a 3-pole, 25A molded case circuit breaker from the Sentron ED2 family. It utilizes a fixed thermal-magnetic trip mechanism to deliver reliable protection for demanding electrical networks. This bolt-on breaker mounts into Siemens Sentron panelboards and SB switchboards. It features a 10 kAIC interrupt rating at 240VAC and is HACR rated. The unit is reverse feed capable and includes load lugs accommodating 14-10 AWG copper conductors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED23B025 |
| Series | ED2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panels are compatible with the ED23B025 circuit breaker?
This breaker is designed for use in Siemens Sentron panelboards and switchboards that accept ED frame bolt-on breakers.
Can the Siemens ED23B025 replace an older ITE breaker with the same catalog number?
Yes. Siemens acquired ITE, and the current Siemens ED23B025 is the direct replacement for legacy ITE ED23B025 breakers.
Is the ED23B025 circuit breaker HACR rated?
Yes, this ED frame breaker is HACR rated, making it suitable for branch circuit protection of heating, air conditioning, and refrigeration equipment.
Can the ED23B025 be reverse fed?
Yes. Siemens ED frame breakers with non-interchangeable trip units, including the ED23B025, are suitable for reverse feed applications according to UL 489 standards.
Does the ED23B025 come with load lugs installed?
Yes, this breaker includes factory-installed load side lugs (catalog number SA1E025) that accept 14-10 AWG copper or 12-10 AWG aluminum conductors.
What are the physical dimensions of the ED23B025 breaker?
This 3-pole ED frame breaker measures 3.00 inches wide, 6.4 inches high, and 3.92 inches deep.
