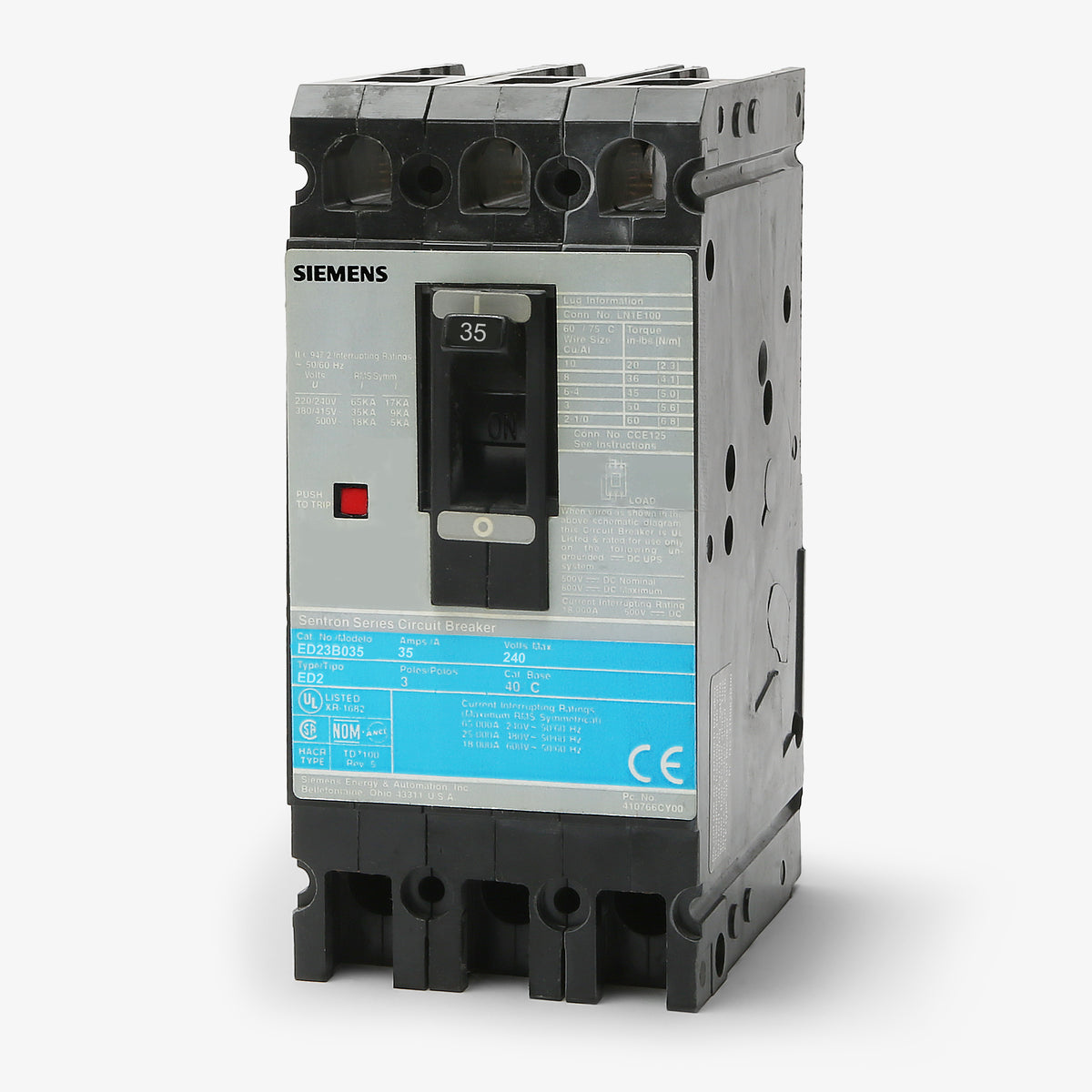

Siemens ED23B035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
ED23B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED23B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED23B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED23B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B035 |
| Series | ED2 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED23B035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B035-R |
| Series | ED2 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens ED23B035 is a 3-pole, 35A molded case circuit breaker from the Sentron ED2 frame family. It provides standard long-time and instantaneous trip functions. This unit features a secure bolt-on mounting style and installs into Siemens P1, P2, and P3 panelboards, along with SB switchboards. It accommodates 10-1/0 AWG wire via load side lugs. Rated for 10kAIC at 240VAC, the breaker is HACR rated for HVAC applications and supports reverse feeding.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED23B035 |
| Series | ED2 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the Siemens ED23B035 circuit breaker?
The ED23B035 is compatible with Siemens P1, P2, and P3 panelboards, as well as SB Switchboards. It also fits legacy I-T-E ED-frame panelboards.
Does the Siemens ED23B035 replace the legacy I-T-E ED23B035?
Yes. Siemens acquired I-T-E, and the current Siemens ED23B035 serves as the direct replacement for older I-T-E branded ED23B035 breakers.
Is the ED23B035 breaker HACR rated?
Yes, it is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Which lug kit is required for wire termination on the ED23B035?
This breaker uses the LN1E100 lug kit, which accommodates 10 to 1/0 AWG copper or aluminum conductors.
Why use a bolt-on breaker like the ED23B035 instead of a plug-on type?
Bolt-on breakers provide a secure, mechanically fastened connection to the busbar. This prevents the breaker from vibrating loose in commercial and industrial applications where equipment vibration or high fault currents are present.
