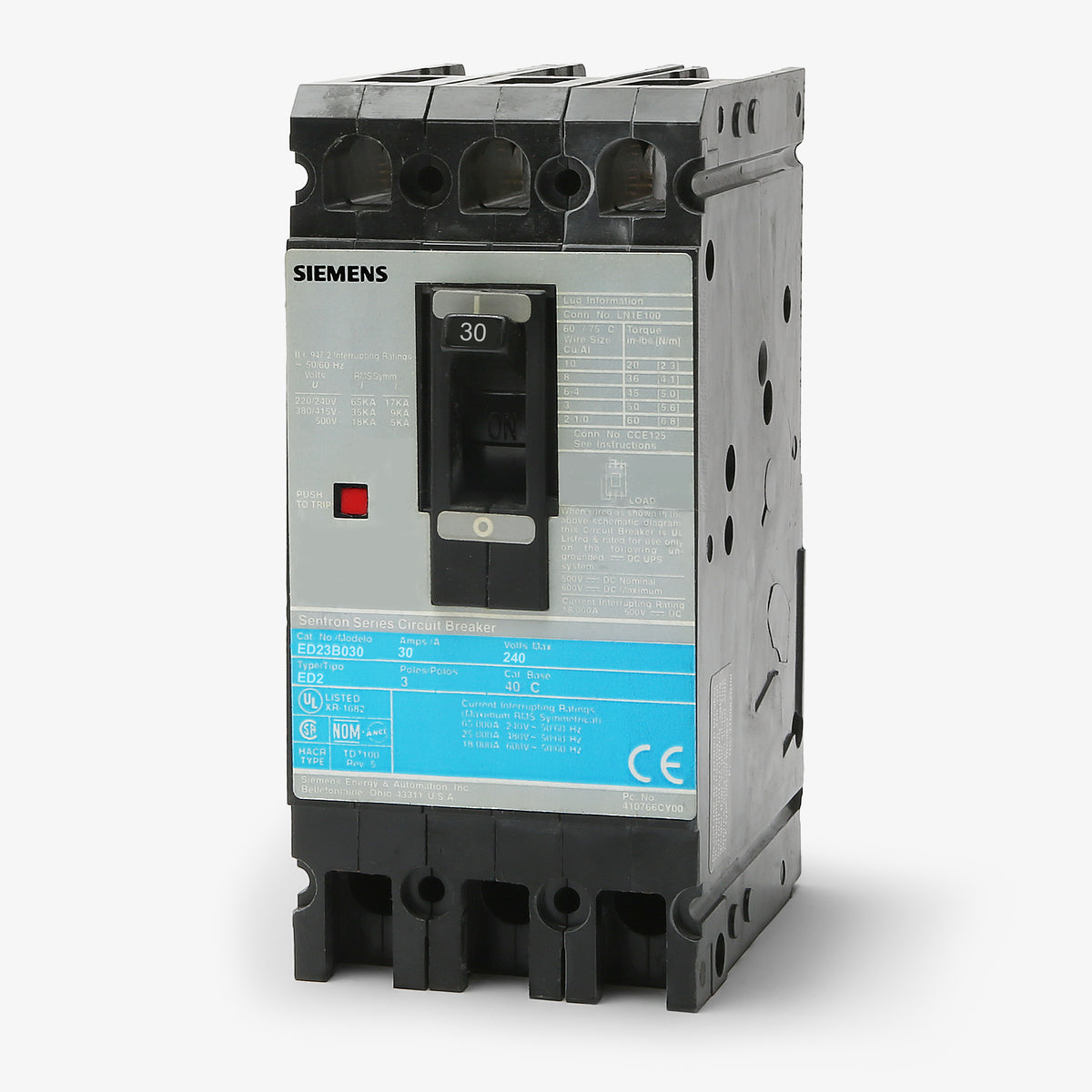

Siemens ED23B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
ED23B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED23B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED23B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED23B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B030 |
| Series | ED2 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED23B030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B030-R |
| Series | ED2 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens ED23B030 is a 3-pole, 30A molded case circuit breaker from the Sentron family. It provides robust long-time and instantaneous (LI) protection for branch circuits. This bolt-on MCCB installs into Siemens Sentron panelboards and switchboards. It includes load side lugs and supports reverse feed applications for flexible system configuration. Rated 10kAIC at 240VAC, this ED Frame breaker features fixed thermal-magnetic trip settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED23B030 |
| Series | ED2 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the ED23B030?
This breaker is designed for use in Siemens Sentron series panelboards and switchboards that accept bolt-on ED frame breakers.
Can the Siemens ED23B030 replace older ITE breakers?
Yes, Siemens acquired ITE, and the Siemens ED23B030 is a direct replacement for the older ITE ED23B030. They share the exact same physical dimensions and mounting footprint.
What type of wire can be used with the terminals on this breaker?
The factory-installed lugs accept 10 AWG to 1/0 AWG wire and are rated for both copper and aluminum conductors. Ensure proper torque specifications are followed during installation.
Can the ED23B030 be used in DC applications?
Yes, in addition to its standard AC ratings, this breaker is rated for 250VDC applications with an interrupting capacity of 5kAIC.
Is this breaker interchangeable with plug-in types?
No, the ED23B030 features a bolt-on connection. It cannot be used in load centers or panels that require plug-in or snap-in connections.
