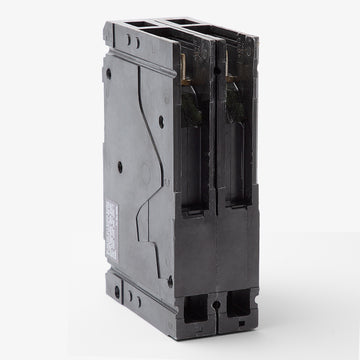

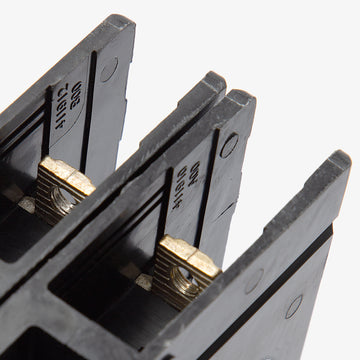

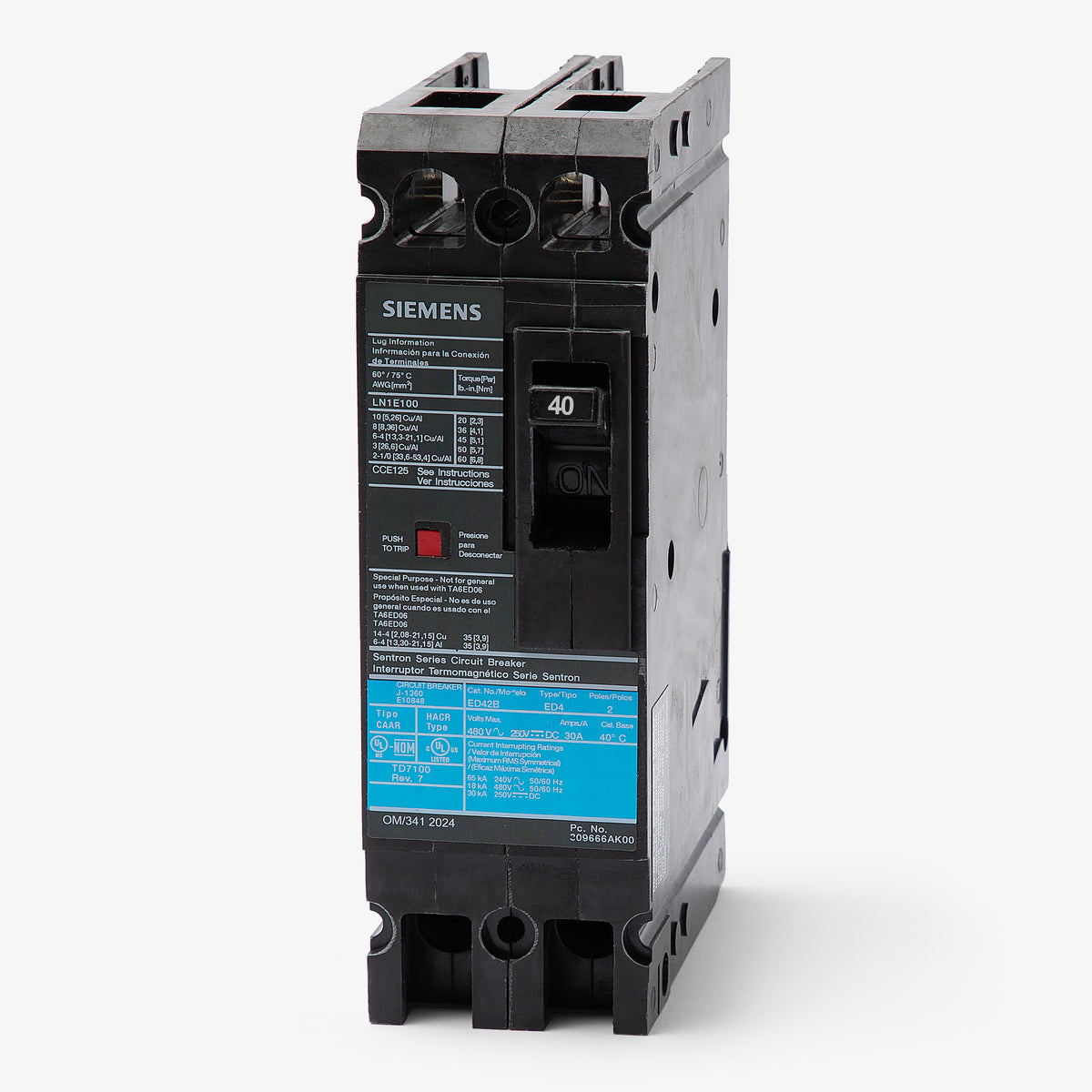

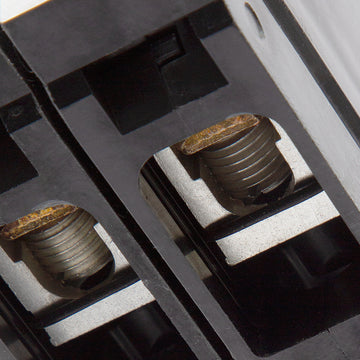

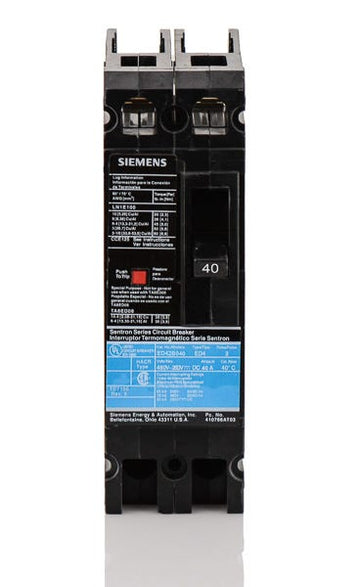

Siemens ED42B040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
ED42B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B040 |
| Series | ED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED42B040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B040-R |
| Series | ED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens ED42B040 is a 2-pole, 40A molded case circuit breaker. It utilizes a thermal magnetic trip unit to deliver reliable long-time and instantaneous (LI) overcurrent protection. This bolt-on MCCB mounts into Siemens Sentron panelboards and SB switchboards. It is configured with load-side lugs only, accepting 10-1/0 AWG copper or aluminum wire for secure terminations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B040 |
| Series | ED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens ED42B040?
The ED42B040 is an ED frame breaker designed for use in Siemens Sentron panelboards and switchboards. It is commonly installed in Siemens P1, P2, P3, P4, and P5 series panelboards, as well as older I-T-E distribution panels that accept ED frame molded case circuit breakers.
Can the ED42B040 be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for direct current applications. It has an interrupting rating of 30kA at 250VDC. When applied on a 250VDC system, it is typically wired with one pole on each leg of the supply circuit.
Can the Siemens ED42B040 be reverse fed?
Yes, standard Siemens ED frame thermal-magnetic circuit breakers with non-removable trip units, like the ED42B040, are suitable for reverse feed applications per UL 489 guidelines.
What is the difference between the Siemens ED4 and ED6 series breakers?
The primary difference is their interrupting capacity at 480VAC. The ED4 series, including the ED42B040, is rated at 18kAIC at 480VAC. The ED6 series is a higher-rated version, offering 25kAIC at 480VAC. Both share the exact same physical ED frame dimensions and mounting style.
Will the ED42B040 fit in a standard residential load center?
No, the ED42B040 is a bolt-on molded case circuit breaker designed for commercial and industrial panelboards and switchboards. It is not compatible with standard residential plug-on load centers that require QP or QT type breakers.
Does the ED42B040 provide ground fault or arc fault protection?
No, the ED42B040 is a standard thermal-magnetic circuit breaker that provides long-time and instantaneous trip functions for overcurrent and short-circuit protection. It does not include GFCI or AFCI safety features.
