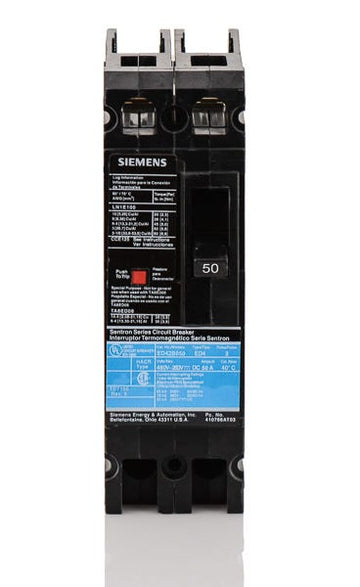

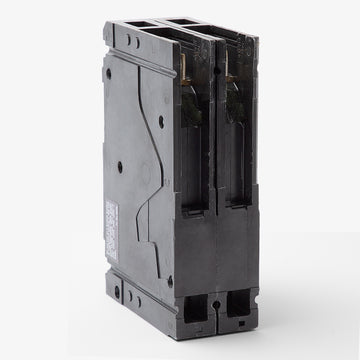

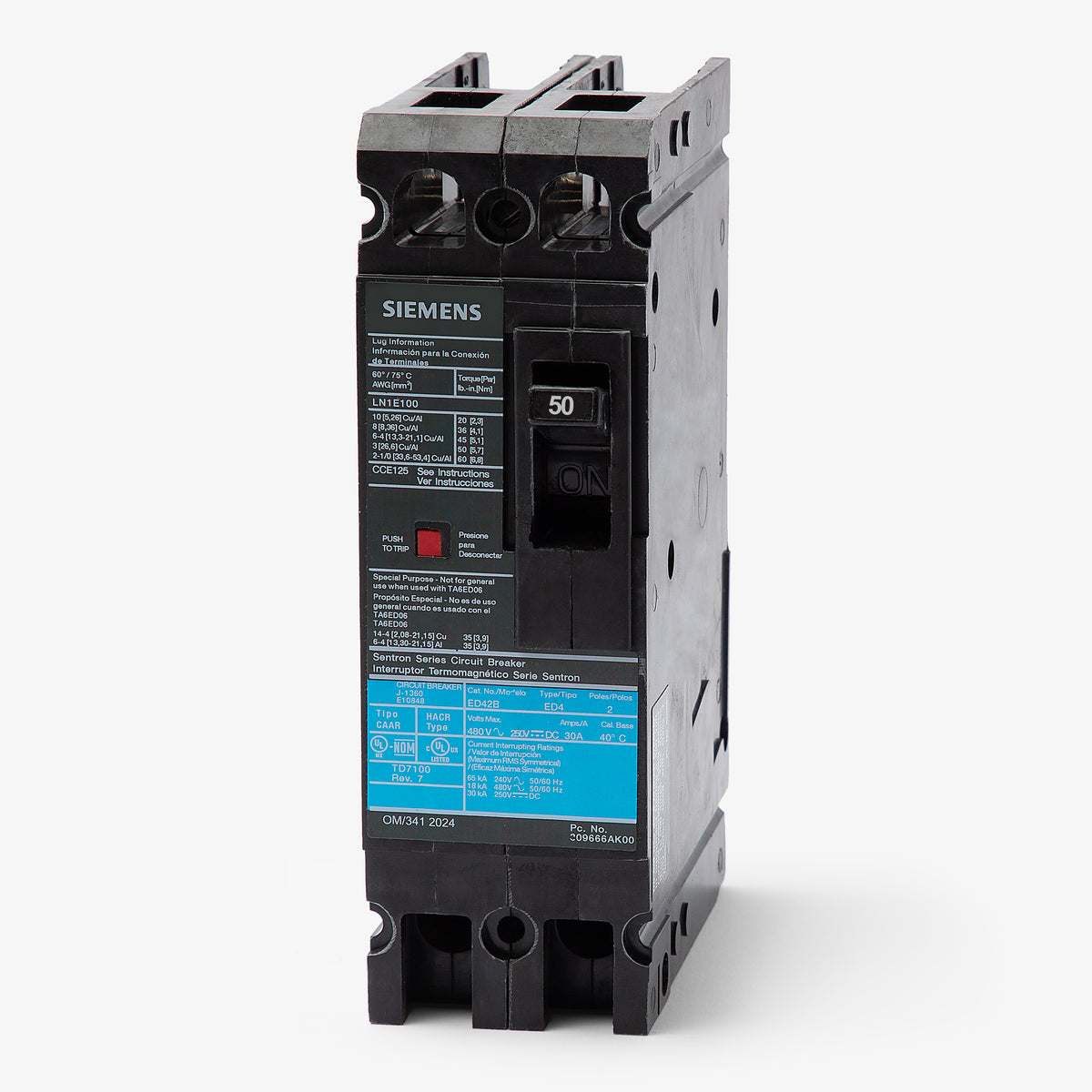

Siemens ED42B050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
ED42B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED42B050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Built to integrate with Siemens Sentron P1, P2, and P3 panelboards, this 50A bolt-on breaker delivers dependable thermal-magnetic LI protection. The ED4 frame unit features load-side lugs and supports reverse feed configurations in commercial settings. Delivering 65kAIC at 240VAC and 18kAIC at 480VAC, it meets rigorous industrial demands. For modern replacements, it crosses to the 3VA5150-4EC21-0AA0, which requires a specific mounting strap kit.Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the ED42B050 circuit breaker?
This bolt-on breaker is designed specifically for Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. It cannot be installed in standard residential load centers that require plug-in breakers.
What wire sizes are accepted by the lugs on the ED42B050?

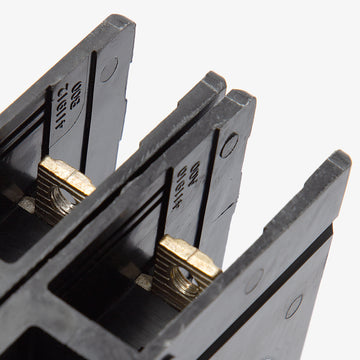

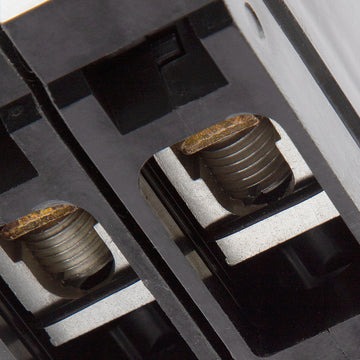

The factory installed lugs accept wire gauges ranging from 10 AWG up to 1/0 AWG. The terminals are rated for use with both copper and aluminum conductors.
Can the ED42B050 be used in DC electrical systems?
Yes, this breaker is rated for direct current applications up to 250VDC. When used in a 250VDC system, it provides an interrupting capacity of 30kAIC.
Is the Siemens ED42B050 a direct replacement for older I-T-E breakers?
Yes. Siemens acquired I-T-E and continues to manufacture the Sentron ED4 frame. The Siemens ED42B050 serves as a direct, drop-in replacement for legacy I-T-E breakers bearing the exact same catalog number.
Are the trip settings on the ED42B050 adjustable?
No, this molded case circuit breaker features fixed thermal and fixed magnetic trip elements. The long time and instantaneous trip functions are set at the factory and cannot be modified in the field.
Can I use the ED42B050 in a 240V system?
Yes, while it has a maximum AC voltage rating of 480VAC, it is fully compatible with lower voltage systems such as 240VAC. When used at 240VAC, the interrupting rating increases to 65kAIC.
How does the ED42B050 mount into an electrical enclosure?
The ED42B050 is a bolt-on circuit breaker. It secures directly to the busbars of compatible Siemens Sentron panelboards or switchboards using mounting screws, ensuring a secure and reliable connection under heavy loads.
