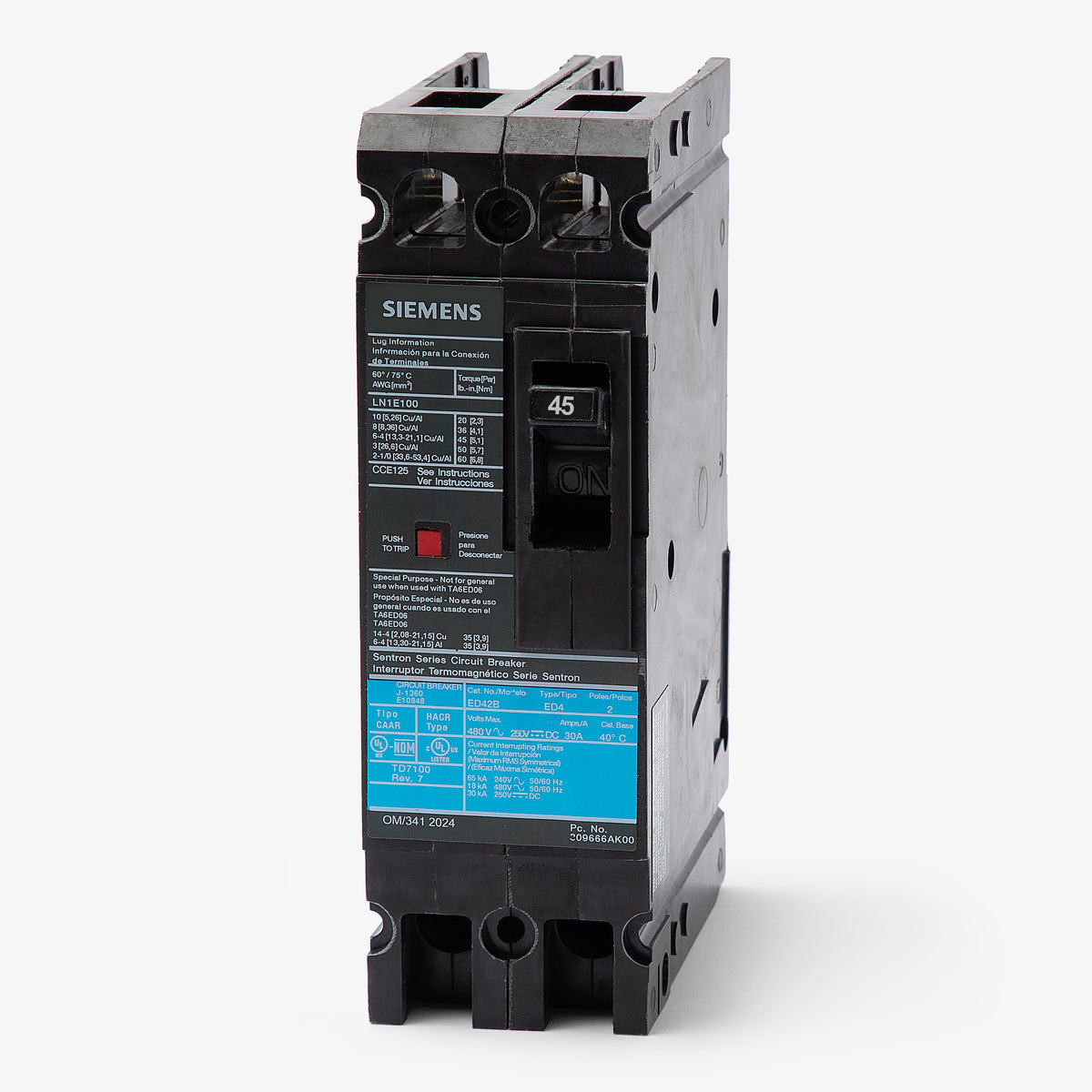

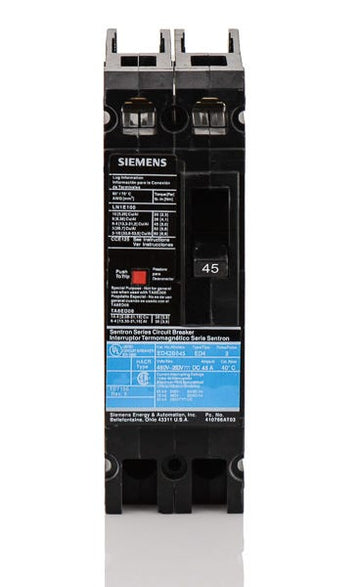

Siemens ED42B045 Molded Case Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Siemens
ED42B045
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B045 |
| Series | ED4 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED42B045 - 45A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B045-R |
| Series | ED4 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Operating within commercial distribution systems, this 45A bolt-on molded case circuit breaker provides essential long-time and instantaneous protection. It mounts securely into Siemens P1, P2, and P3 panelboards or compatible switchboards. The ED4 frame device features a 65kA interrupting capacity at 240VAC and includes standard load lugs. Note that this specific model is transitioning to the newer 3VA5145-4ED21-0AA0 replacement, which requires an additional mounting kit for panel integration.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B045 |
| Series | ED4 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the ED42B045 circuit breaker?
This ED frame breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards. It requires the appropriate ED frame mounting hardware or twin mounting kit for your specific panelboard type.
Can the Siemens ED42B045 replace older ITE circuit breakers?
Yes. Siemens acquired ITE, and the current Siemens ED42B045 is a direct, exact replacement for the older ITE ED42B045 circuit breaker. It shares the same physical dimensions, mounting style, and ED frame design.
Is the ED42B045 suitable for reverse feeding applications?
Yes. Because this ED frame breaker features a non-interchangeable trip unit, it is suitable for reverse feed applications where power flows from the load side to the line side, in accordance with UL 489 standards.
What type of wire connections does the ED42B045 support?
This breaker features bolt-on mounting and includes standard lugs that accept 10 AWG to 1/0 AWG copper or aluminum wire. Always torque the lug screws to the manufacturer specifications printed directly on the breaker label during installation.
Does this breaker provide ground fault or arc fault protection?
No. The ED42B045 is a standard thermal-magnetic circuit breaker providing long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include GFCI or AFCI functionality.
