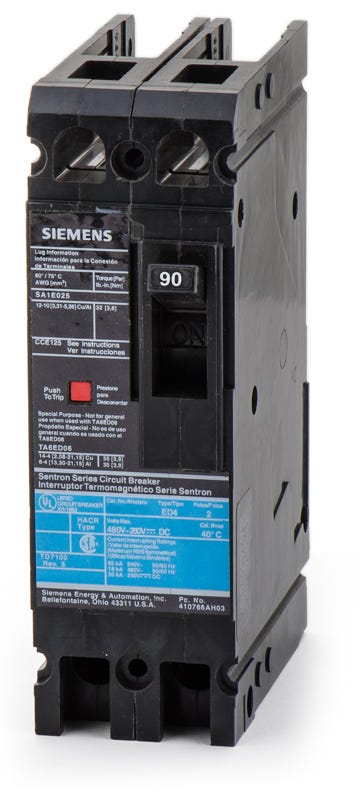

Siemens ED42B090L Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Siemens
ED42B090L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B090L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B090L - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens ED42B090L provides robust overcurrent protection. This 2-pole, 90A MCCB is part of the Sentron ED frame family. The unit mount configuration installs into Siemens P1 through P5 panelboards and switchboards. It includes factory-installed line and load lugs, accepting 10-1/0 AWG wire. Rated for 65kAIC at 240V and 18kAIC at 480V, it features fixed thermal magnetic trip technology. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B090L |
| Series | ED4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line & Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the difference between the ED42B090 and the ED42B090L?
The ED42B090L includes factory-installed line and load lugs (lug kit LN1E100) for unit mount, feed-thru applications. The standard ED42B090 is typically configured for panelboard mounting.
What wire sizes are accepted by the factory-installed lugs on this breaker?
The included LN1E100 line and load lugs accept 10 AWG to 1/0 AWG copper or aluminum wire.
Is the Siemens ED42B090L HACR rated?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the ED42B090L be reverse fed?
Yes, this breaker is reverse feed capable, allowing it to be wired with the line connections on either the top or bottom terminals.
Is the trip unit on the ED42B090L adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It is non-interchangeable and cannot be adjusted in the field.
Can this breaker replace older I-T-E ED4 frame breakers?
Yes, Siemens Sentron ED4 frame breakers are direct replacements for legacy I-T-E ED4 frame breakers with matching specifications.
What panelboards are compatible with the ED42B090L?
This unit mount breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards and switchboards that accommodate feed-thru configurations.
