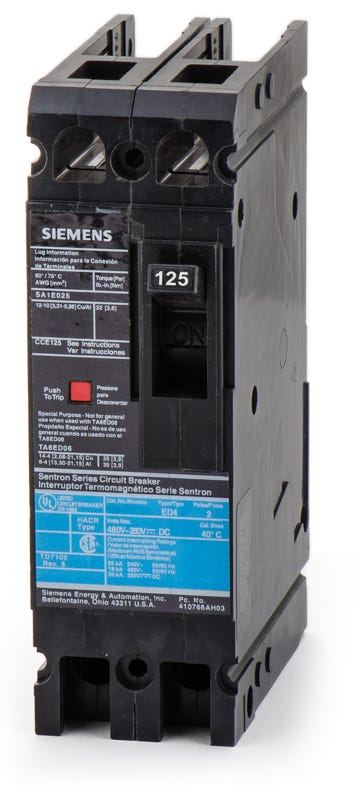

Siemens ED42B125L Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Siemens
ED42B125L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B125L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

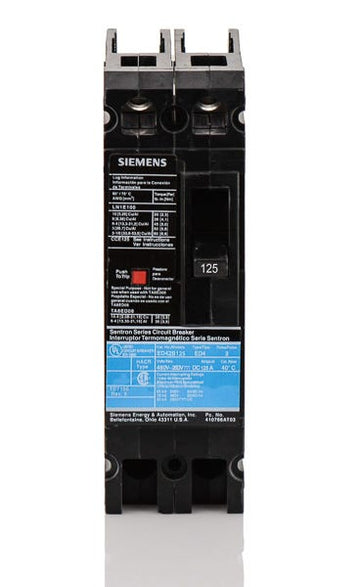

Siemens ED42B125L - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for standalone industrial applications, this 125A unit mount breaker delivers dependable thermal-magnetic trip functionality. The "L" suffix designates the inclusion of both line and load lugs, making it ready for installation into individual enclosures and switchboards. It provides a robust 65kAIC interrupting capacity at 240VAC and supports reverse feed configurations. This Sentron ED4 frame component ensures strict compliance with UL 489 standards for heavy-duty electrical systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B125L |
| Series | ED4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line & Load Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan the Siemens ED42B125L replace older I-T-E circuit breakers?
Yes. Siemens acquired I-T-E and continues to manufacture the ED4 frame. The ED42B125L serves as a direct replacement for legacy I-T-E ED4 breakers with matching specifications.
What does the L suffix in the ED42B125L catalog number indicate?
The L signifies that the breaker is supplied with factory-installed line and load side lugs.
What wire sizes are compatible with the lugs on the ED42B125L?
The standard lugs accept 3 to 3/0 AWG copper wire or 1 to 2/0 AWG aluminum wire. Installers must apply the specific torque values printed on the breaker faceplate.
Is the ED42B125L suitable for DC power systems?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, where it provides a 30kA interrupting capacity.
Where is the ED42B125L typically installed?
As a unit mount, feed-thru breaker, it is designed for installation in Siemens switchboards and individual enclosures rather than standard load centers.
Are the trip settings adjustable on the ED42B125L?
No. This breaker features a fixed thermal and fixed magnetic trip unit, providing standard long-time and instantaneous (LI) protection without adjustable dials.
