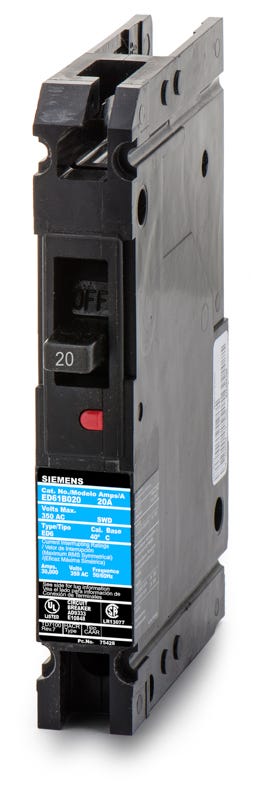

Siemens ED61B020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Siemens
ED61B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED61B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED61B020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, this 20A ED6 frame device provides reliable long-time and instantaneous trip functions. The Sentron family component handles demanding electrical loads within a compact 1-inch width. Installation into Siemens P1, P2, and P3 panelboards or motor control centers is simple. The bolt-on mounting style ensures a secure connection. Rated for 30kA interrupting capacity at 347VAC, it meets strict UL 489 standards and features a HACR-rated design.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED61B020 |
| Series | ED6 |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 347VAC |
| Phase | 1 |
| AIC Rating | 30kA @ 347VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
