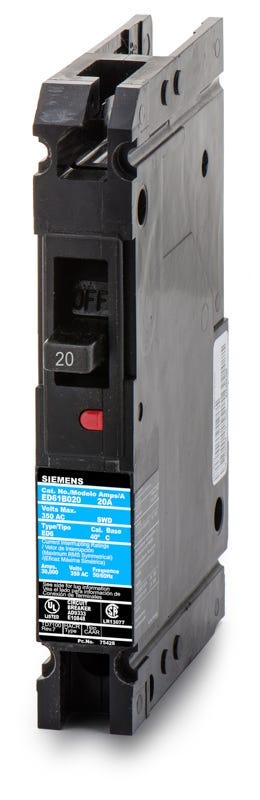

Siemens ED61B045 Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
Siemens
ED61B045
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED61B045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED61B045 - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Designed to safeguard commercial systems, the Siemens ED61B045 is a 1-pole, 45A molded case circuit breaker. It features a fixed thermal-magnetic trip unit that delivers precise long-time and instantaneous (LI) protection. This ED frame breaker utilizes a bolt-on configuration, allowing it to install into Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. It includes load side lugs for 10-1/0 AWG wire.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED61B045 |
| Series | ED6 |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 347VAC |
| Phase | 1 |
| AIC Rating | 30kA @ 347VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the ED61B045 circuit breaker?
This ED Frame breaker is designed for seamless integration into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and motor control centers.
Can the Siemens ED61B045 replace an older I-T-E breaker?
Yes, the Siemens ED61B045 is the direct replacement for the legacy I-T-E ED61B045. Both share the exact same physical dimensions, ED Frame footprint, and bolt-on mounting style.
Is the ED61B045 suitable for reverse feeding?
Yes, this breaker features a non-interchangeable thermal-magnetic trip unit, making it suitable for reverse feed applications in commercial and industrial systems per UL 489 standards.
Is the Siemens ED61B045 HACR rated?
Yes, this 45-amp breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific protection.
What applications typically require the 347VAC rating on the ED61B045?
The 347VAC rating indicates this 1-pole breaker is commonly used in 600Y/347V commercial and industrial systems. This voltage is frequently found in Canadian electrical distributions or specific heavy-duty industrial lighting applications.
