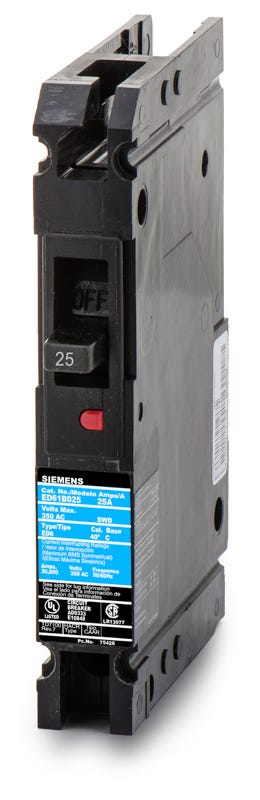

Siemens ED61B025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Unit Mount
Siemens
ED61B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED61B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED61B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Operating within industrial power systems, this 25A unit mount breaker delivers essential long-time and instantaneous protection. The thermal-magnetic mechanism is housed in a durable ED6 frame. It fits into Siemens P1, P2, and P3 panelboards. For modern upgrades, this model is replaced by the 3VA4125-5ED14-0AA0, requiring a retrofit kit. Capable of handling 30kA fault currents at 347VAC, the HACR-rated unit provides dependable reverse feed capabilities and fixed trip settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED61B025 |
| Series | ED6 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 347VAC |
| Phase | 1 |
| AIC Rating | 30kA @ 347VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
4 answersWhich panelboards are compatible with the ED61B025 circuit breaker?
This bolt-on breaker is designed for commercial and industrial applications, specifically fitting Siemens P1, P2, and P3 panelboards as well as compatible Siemens switchboards. It is not intended for standard residential plug-on load centers.
Can I use the Siemens ED61B025 to replace an older ITE breaker?
Yes. Siemens acquired ITE and continues to manufacture the Sentron series. The ED61B025 serves as a direct, exact replacement for the legacy ITE ED61B025.
How is the ED61B025 secured inside the panel?
It features a unit mount, bolt-on connection type. The breaker bolts directly to the bus assembly in compatible Siemens panelboards and switchboards, ensuring a secure and reliable electrical connection.
How does the thermal magnetic trip unit operate on this ED frame breaker?
The breaker utilizes fixed long-time and instantaneous (LI) trip functions. The thermal component responds to sustained overloads by heating a bimetallic strip, while the magnetic component provides immediate tripping during high-fault short circuits.
