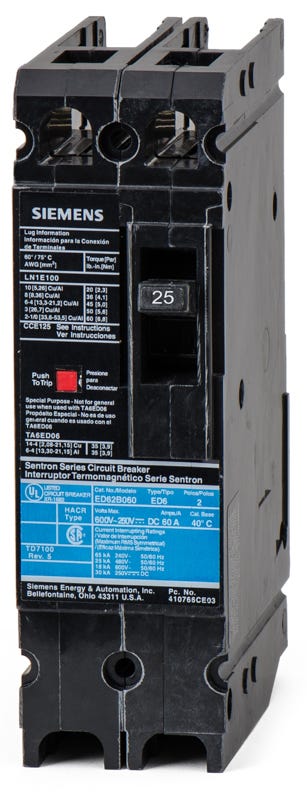

Siemens ED62B025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Unit Mount
Siemens
ED62B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED62B025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B025 |
| Series | ED6 |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed Capable |
Quantity
Siemens ED62B025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B025-R |
| Series | ED6 |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed Capable |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built to handle 25-amp commercial and industrial loads, this Sentron series MCCB delivers proven long-time and instantaneous protection. The unit mount design allows for seamless integration into Siemens P1, P2, and P3 panelboards as well as compatible switchboards. Note that this legacy ED6 frame is officially replaced by the 3VA5125-5ED21-0AA0, which requires a retrofit kit for older panels. It features a robust 65kAIC interrupting capacity at 240V and includes standard load-side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B025 |
| Series | ED6 |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed Capable |
Product FAQs
5 answersHow is the ED62B025 installed into Siemens panelboards?
While compatible with Siemens P1, P2, and P3 panelboards, this unit-mount breaker does not plug directly into the bus. It requires a separate strap or mounting kit, such as the MBKED1 or MBKED3, depending on your specific panelboard generation and phase configuration.
Can I use the Siemens ED62B025 to replace an older ITE or Gould breaker?
Yes. Siemens acquired ITE and Gould, making the current Siemens ED6 frame a direct replacement for obsolete ITE and Gould ED6 circuit breakers with matching specifications.
What is the replacement lug kit part number for the ED62B025?
The standard replacement lug kit for this 25A ED frame breaker is Siemens part number SA1E025, which accepts 14-10 AWG copper or 12-10 AWG aluminum wire.
Can the ED62B025 be installed in a standalone enclosure?
Yes. This ED frame breaker can be mounted in compatible Siemens standalone enclosures, such as the E2N3R for outdoor NEMA 3R applications.
Is the ED62B025 interchangeable with CED6 current-limiting breakers?
No. While both belong to the Siemens ED frame family, CED6 breakers are current-limiting with substantially higher interrupting ratings and different mounting requirements. The standard ED6 cannot replace a CED6 unless explicitly permitted by the equipment listing.
