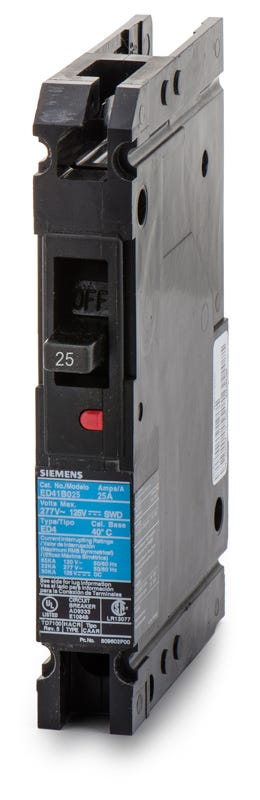

Siemens ED41B025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Siemens
ED41B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED41B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B025 |
| Series | ED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 40C Ambient Calibration |
Sold out
Quantity
Siemens ED41B025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B025-R |
| Series | ED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 40C Ambient Calibration |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED4 series, the Siemens ED41B025 is a 1-pole, 25A molded case circuit breaker for commercial distribution. It features fixed thermal and magnetic trip units for reliable protection. This unit installs into Siemens P1, P2, and P3 panelboards. It utilizes a bolt-on mount and includes load-side lugs accepting 14-10 AWG copper wire. Rated 65kAIC at 120VAC, it provides robust fault clearing. It is HACR rated and replaced by the 3VA5125-4ED11-0AA0 (requires strap kit).Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B025 |
| Series | ED4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 40C Ambient Calibration |
Product FAQs
5 answersWhich panelboards accept the ED41B025 circuit breaker?
This bolt-on breaker is designed for installation in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
How is the ED41B025 connected within a panel?
The line side of this breaker bolts directly to the panelboard bus, while the load side comes factory-equipped with lugs for wire termination.
Can the ED41B025 be reverse fed?
Yes, Siemens ED frame circuit breakers are designed to allow reverse connection, making them suitable for back-fed applications.
Is this breaker a suitable replacement for older I-T-E models?
Yes. Siemens acquired I-T-E, and current Sentron ED4 frame breakers serve as direct replacements for legacy I-T-E and Gould ED4 breakers with matching specifications.
Is the ED41B025 suitable for protecting HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
