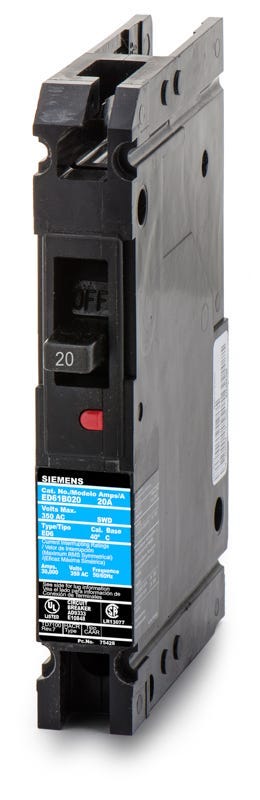

Siemens ED61B060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Siemens
ED61B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED61B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED61B060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
45A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, this 60A, 1-pole molded case circuit breaker belongs to the Siemens Sentron ED Frame series. It delivers robust thermal-magnetic protection for 347VAC applications. The bolt-on configuration mounts into Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. Delivering a 30kAIC interrupting rating at 347V, the ED61B060 includes load lugs only and features reverse feed capability for flexible installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED61B060 |
| Series | ED6 |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 347VAC |
| Phase | 1 |
| AIC Rating | 30kA @ 347VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersWhat panelboards are compatible with the ED61B060 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and motor control centers.
What wire sizes and conductor materials are supported by the standard lugs?
The factory-installed lugs accommodate 10 AWG to 1/0 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
What applications typically require the 347VAC rating of this 1-pole breaker?
A 347VAC rating is standard for 600Y/347V distribution systems, which are frequently used in industrial facilities and Canadian commercial electrical systems for lighting and general loads.
Are alternative lug kits available for this ED frame breaker?
Yes, Siemens offers compatible accessory lugs for ED frame breakers, such as the CCE125 compression lug kit which supports 1-pole 30 to 125 amp breakers.
What type of trip protection does the ED61B060 provide?
It utilizes a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions to protect against sustained overloads and sudden short circuits.
Is the ED61B060 suitable for reverse-feed installations?
Yes, this thermal-magnetic molded case circuit breaker features reverse-feed capability, allowing for flexible wiring configurations in control panels and switchboards.
How does the bolt-on connection benefit industrial installations?
Bolt-on mounting provides a secure, mechanically fastened connection to the panelboard bus, which reduces the risk of arcing and maintains continuity in high-vibration environments.
What does the 30kAIC interrupting rating signify at 347VAC?
The 30kAIC rating indicates that the breaker can safely clear a fault current of up to 30,000 amps at 347VAC without catastrophic failure, ensuring panel and personnel safety during severe short circuits.
What does the ED frame designation mean for this breaker?
The ED frame is part of the Siemens Sentron family of molded case circuit breakers, sharing standardized physical dimensions and accessories with other ED-frame breakers to simplify panel design and maintenance.
