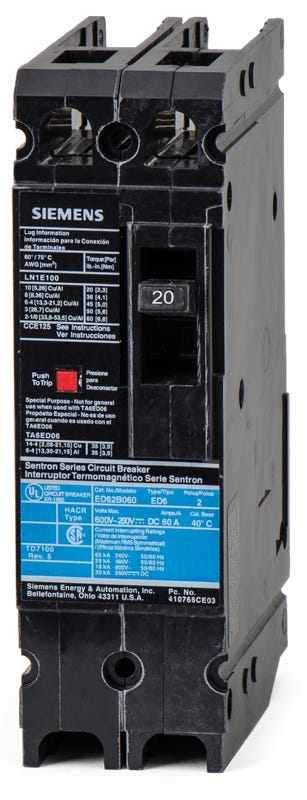

Siemens ED62B020 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Unit Mount
Siemens
ED62B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED62B020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B020 |
| Series | ED6 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Siemens ED62B020 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B020-R |
| Series | ED6 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial power systems, this 20-amp Sentron breaker provides reliable long-time and instantaneous overcurrent protection. The unit-mount configuration installs easily into Siemens P1, P2, and P3 panelboards or industrial switchboards. Capable of reverse feeding and carrying an HACR rating, it handles up to 65kA fault currents at 240VAC. When replacing this specific model, the 3VA5120-5ED21-0AA0 serves as the manufacturer's designated substitute alongside a retrofit kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B020 |
| Series | ED6 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens ED62B020?
This unit mount breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. It requires a bolt-on connection to secure it to the bus.
What wire sizes are accepted by the lugs on this breaker?
The standard factory lugs accept 14 to 10 AWG copper conductors or 12 to 10 AWG aluminum conductors. Always verify the specific torque requirements printed on the breaker faceplate before terminating the wires.
Can this breaker be utilized in direct current systems?
Yes, this model is rated for DC applications up to 250VDC, providing an interrupting capacity of 30kA for direct current circuits.
Are the trip settings adjustable on this 20A ED frame breaker?
No, this specific model features a thermal magnetic trip unit with fixed long time and fixed instantaneous trip functions. It does not include field-adjustable trip dials.
What product family does the ED62B020 belong to?
It is part of the Siemens Sentron family of molded case circuit breakers. It utilizes the standard ED frame footprint, making it a direct fit for enclosures designed for ED-frame dimensions.
