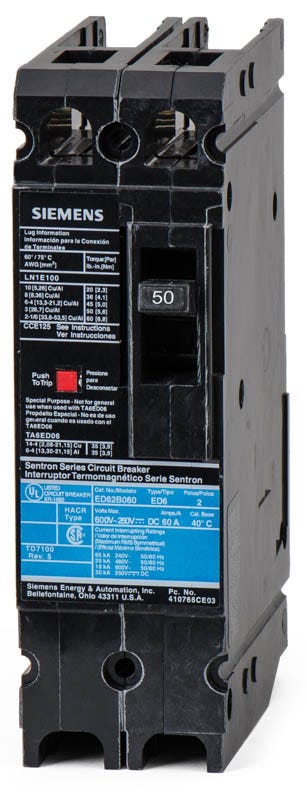

Siemens ED62B050L Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Siemens
ED62B050L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B050L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B050L - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the Siemens Sentron family, this 2-pole, 50A molded case circuit breaker provides thermal-magnetic (LI) protection for commercial systems. It ensures reliable defense against overloads and short circuits. Designed for individual mounting, this unit-mount MCCB installs into standalone enclosures and switchboards. It comes factory-equipped with line and load side lugs, accommodating 10-1/0 AWG wire. Rated for 600VAC, it delivers a 65kA interrupting capacity at 240V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B050L |
| Series | ED6 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line & Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersWhat does the L suffix mean in the ED62B050L catalog number?
The L suffix indicates that the circuit breaker comes factory-equipped with lugs on both the line and load sides.
Which Siemens panelboards are compatible with the ED62B050L?
This Sentron ED-frame breaker can be installed in Siemens P2, P3, P4, and P5 panelboards and switchboards. It is also suitable for individual mounting in standalone enclosures.
Can the ED62B050L circuit breaker be reverse fed?
Yes, this thermal magnetic molded case circuit breaker is reverse feed capable, allowing power to be supplied to either the line or load terminals.
Is the ED62B050L suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
