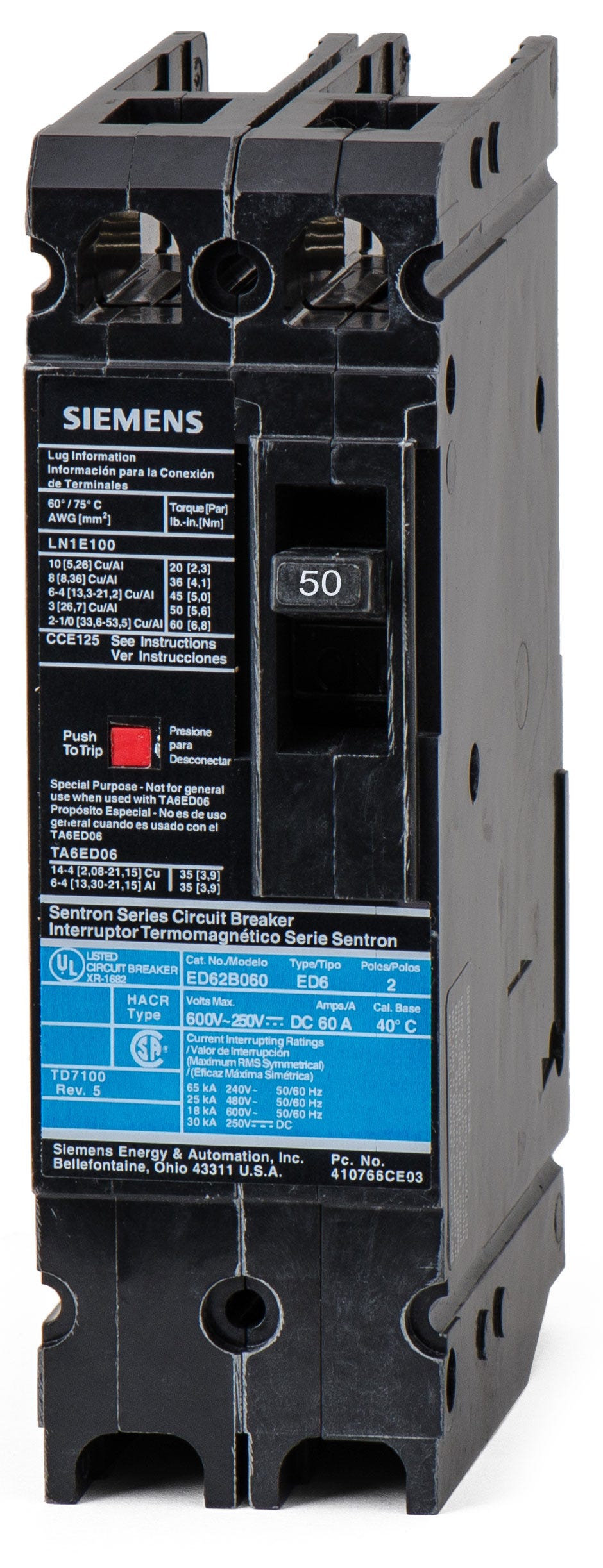

Siemens ED62B050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
ED62B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED62B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B050 |
| Series | ED6 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED62B050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B050-R |
| Series | ED6 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, the Siemens ED62B050 is a 2-pole, 50A molded case circuit breaker from the Sentron family. It provides reliable long-time and instantaneous (LI) overcurrent protection. This bolt-on MCCB installs into Siemens P2, P3, P4, and P5 panelboards. It accepts 10-1/0 AWG copper or aluminum wire via load-side lugs, ensuring secure terminations. Rated for 600VAC, it features an interrupting capacity of 65kA at 240V. It is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B050 |
| Series | ED6 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
8 answersWhat panelboards are compatible with the ED62B050?
The ED62B050 is designed for bolt-on installation in Siemens P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
What wire sizes are accepted by the standard lugs?
The factory lugs accommodate 10 AWG through 1/0 AWG conductors. Both copper and aluminum wires are supported.
Is this breaker suitable for direct current applications?
Yes, it carries a DC rating of 250VDC with a 30kAIC interrupting capacity, allowing integration into supported direct current systems.
Can the trip curve be adjusted in the field?
No, this breaker utilizes a fixed thermal-magnetic trip unit. The long-time and instantaneous trip thresholds are factory set and non-adjustable.
Does the ED62B050 mount to a standard DIN rail?
No, this is a molded case circuit breaker that requires a bolt-on connection directly to the panelboard bus. It is not designed for DIN rail mounting.
Can this replace legacy I-T-E circuit breakers?
Yes, Siemens manufactures the Sentron series as the direct successor to legacy I-T-E breakers. The ED62B050 can replace older I-T-E ED6 frame breakers with matching specifications.
What type of protection does the LI trip function provide?
The LI designation indicates Long-Time and Instantaneous protection. The thermal element protects against sustained overloads, while the magnetic element trips immediately during a short circuit.
Is it permissible to reverse feed this circuit breaker?
Standard Siemens ED frame thermal-magnetic breakers can generally be reverse fed. Always verify that the breaker faceplate lacks specific Line and Load markings before wiring in a reverse feed configuration.
