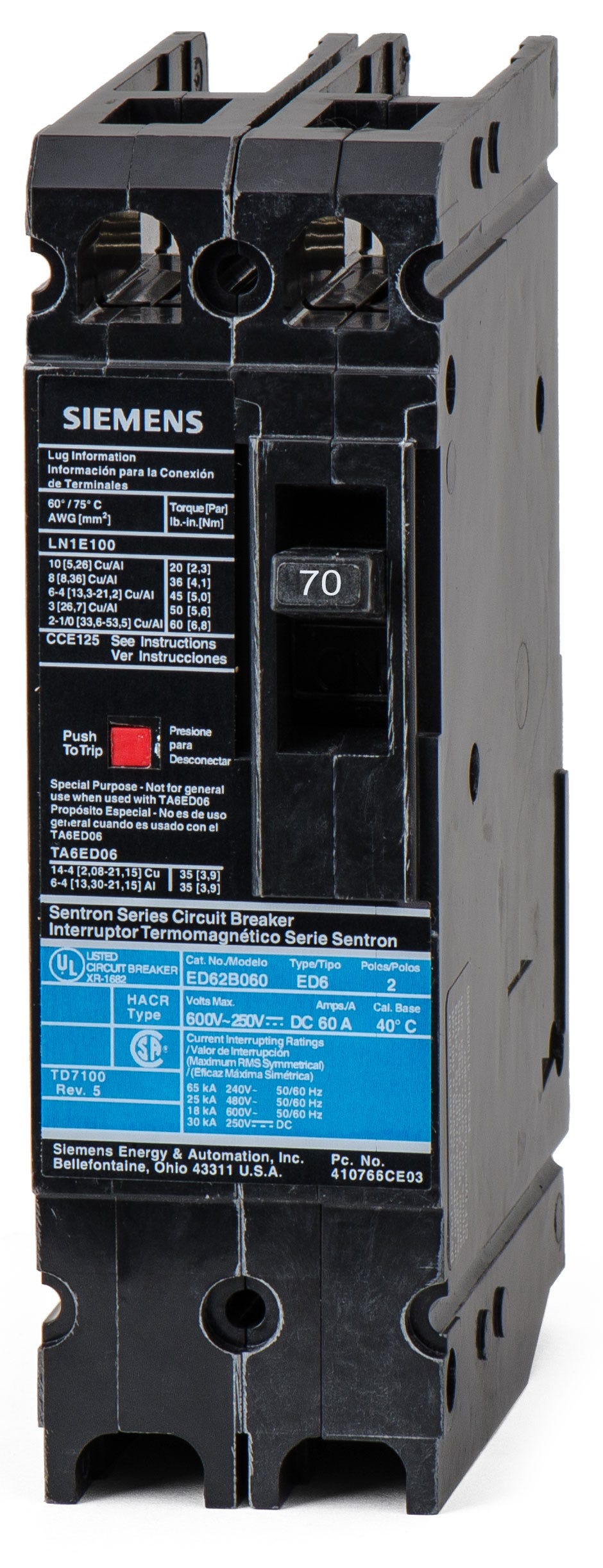

Siemens ED62B070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
ED62B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens ED62B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B070 |
| Series | ED6 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Siemens ED62B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B070-R |
| Series | ED6 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial electrical systems, the Siemens ED62B070 is a 70-amp, two-pole molded case circuit breaker. As part of the Sentron ED frame family, it utilizes proven thermal-magnetic trip technology for dependable overcurrent protection. This breaker installs into Siemens P2, P3, P4, and P5 panelboards. The bolt-on design ensures a tight, secure fit for industrial switchboards. It offers a 65kAIC rating at 240VAC and includes load side lugs. The unit is fully HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B070-R |
| Series | ED6 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhat panelboards are compatible with the ED62B070 circuit breaker?
This ED frame breaker is designed for installation in Siemens P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
Does the Siemens ED62B070 replace legacy I-T-E breakers?
Yes. Siemens acquired I-T-E and retained the Sentron catalog numbering system. The Siemens ED62B070 is the direct, drop-in replacement for the older I-T-E ED62B070.
What lug kit is standard for the 70A ED62B070?
The standard line and load lug kit for this 70A ED frame breaker is the LN1E100, which accommodates 10 to 1/0 AWG copper or aluminum conductors.
Can the ED62B070 be reverse fed?
Yes. Because this ED frame breaker features a fixed, non-interchangeable thermal-magnetic trip unit, it is suitable for reverse feed applications according to UL 489 standards.
Is the ED62B070 suitable for direct current (DC) systems?
Yes, this breaker is rated for DC applications, providing a 30kA interrupting capacity at 250VDC. When used in 250VDC systems, a two-pole breaker is typically wired with one pole on each leg of the supply circuit.
