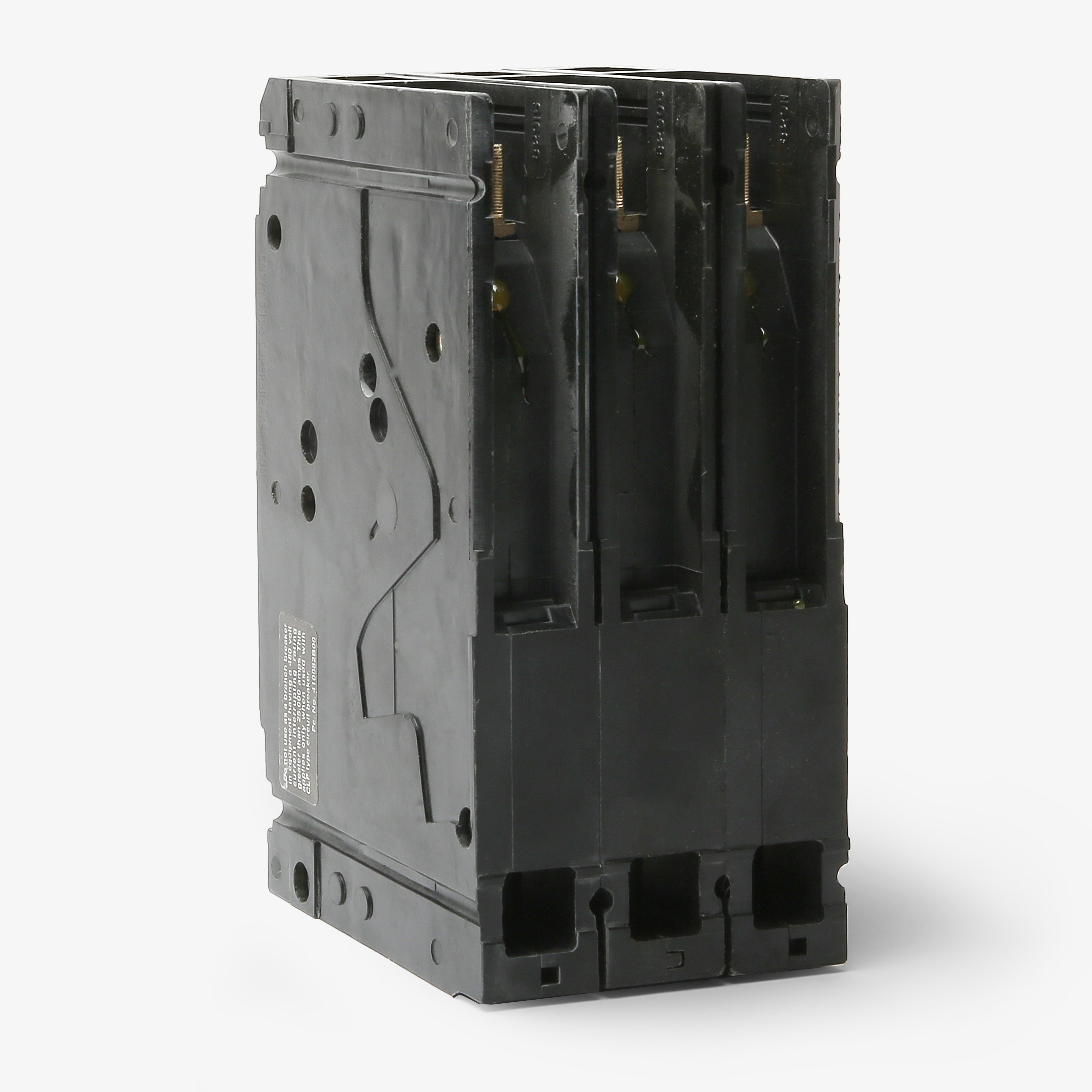

Siemens ED63B045 - 45A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED63B045
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens ED63B045 - 45A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED63B045
Select Item Condition
Earn 589 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens ED63B045 - 45A 3 Pole Molded Case Circuit Breaker

New

$589.97 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed for heavy-duty industrial environments, this 45A thermal-magnetic breaker ensures consistent overcurrent protection across three phases. The bolt-on design integrates seamlessly into Siemens P1, P2, and P3 panelboards, alongside compatible motor control centers. For future upgrades, Siemens notes this model is replaced by the 3VA5145-5EC31-0AA0 with an appropriate mounting kit. It carries a versatile 65kAIC rating at 240V and is fully HACR rated for HVAC equipment applications.

Specifications

Brand Siemens
Series ED6
Amperage 45A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC

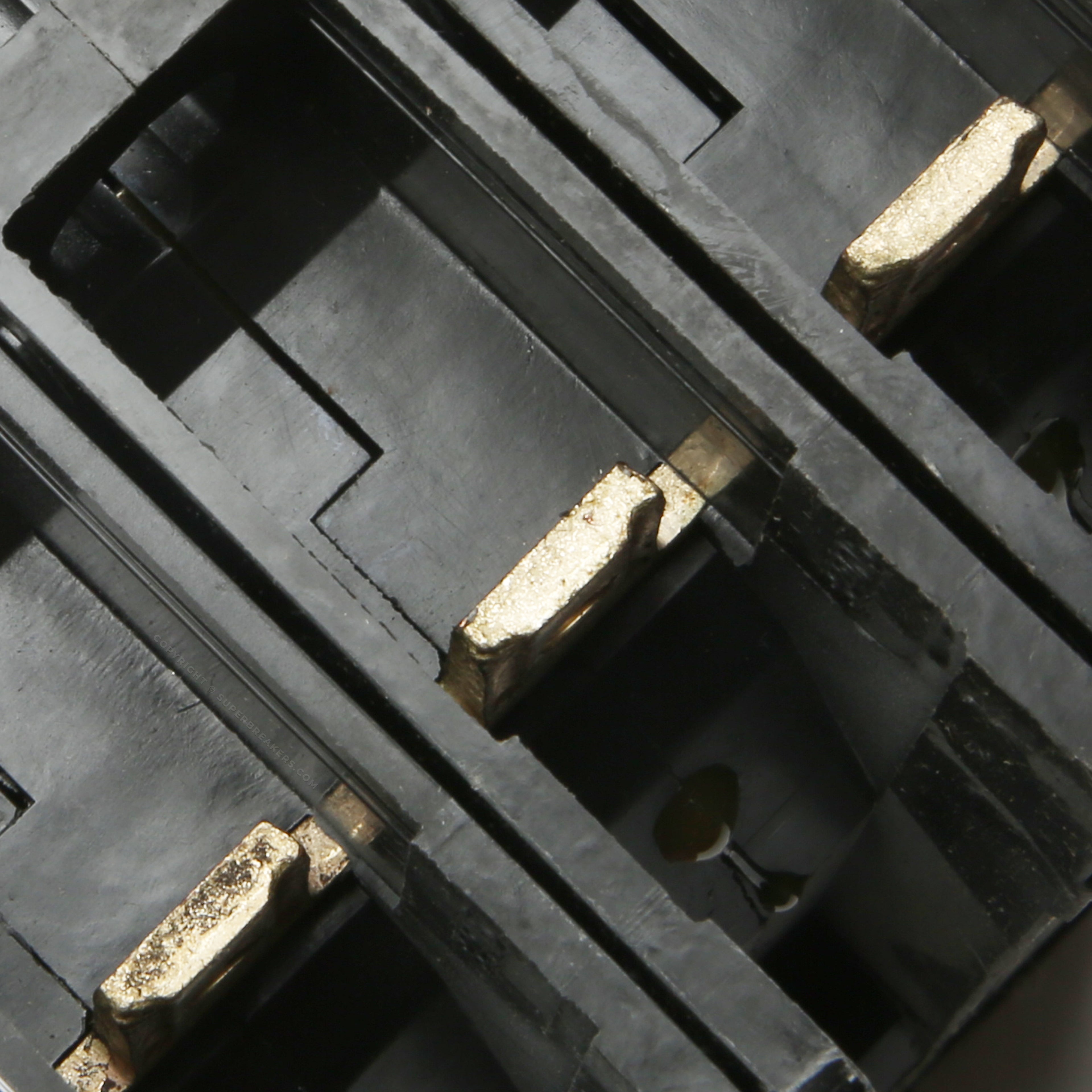

Mounting Style Bolt-On

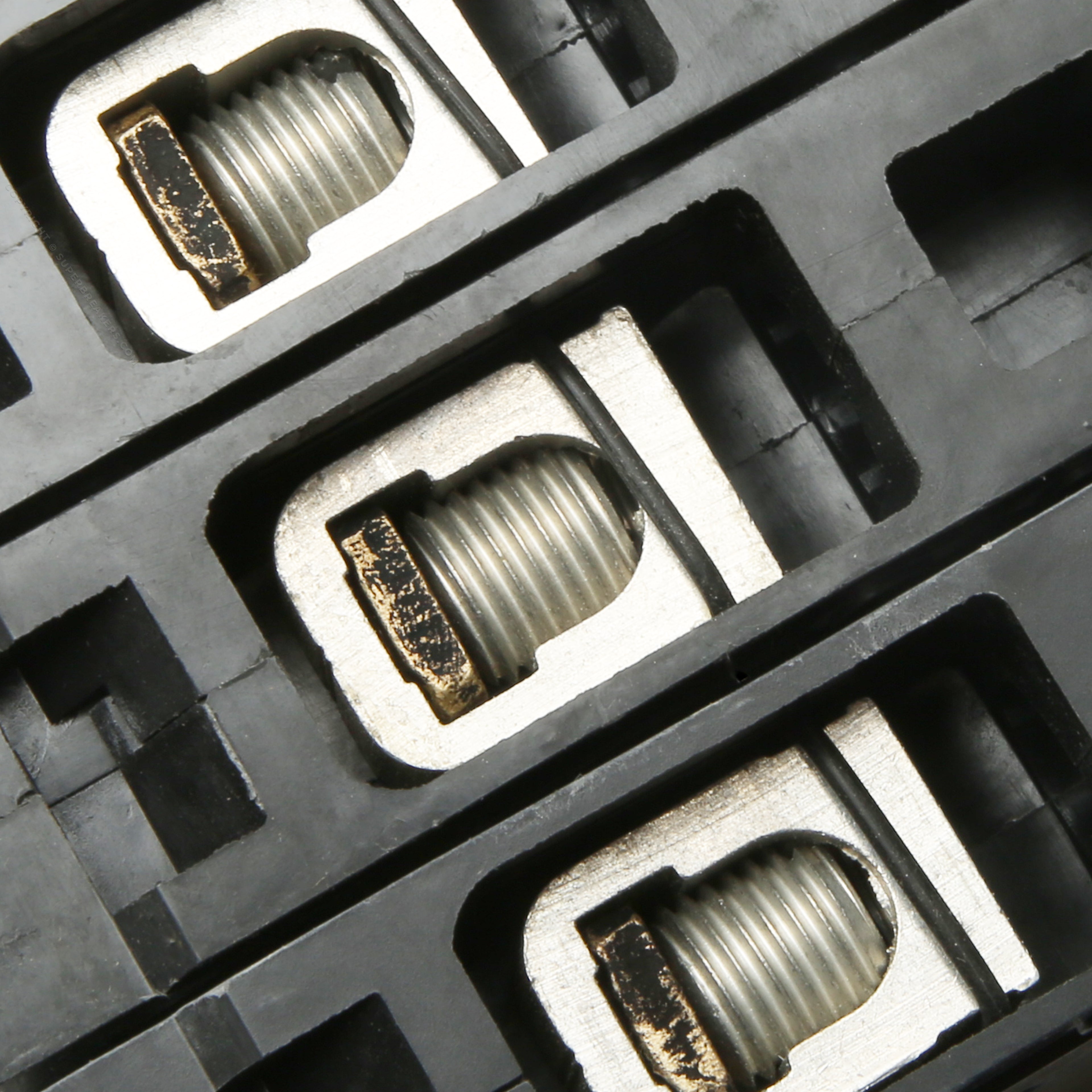

Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 10-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 10 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release
Accessories Load Side Lug (LN1E100)
Standards CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip
