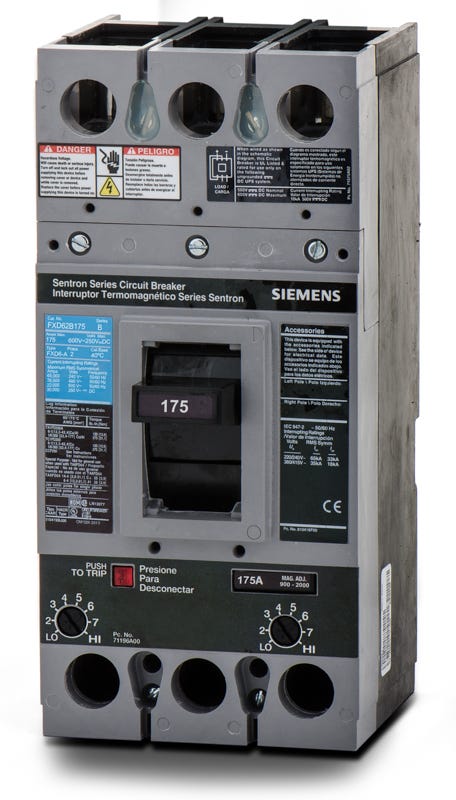

Siemens FXD62B175L Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Siemens
FXD62B175L
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD62B175L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD62B175L - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens FXD62B175L brings 2-pole, 175A capabilities to the proven FD frame lineup. Unlike the standard FXD62B175, this model comes complete with factory-installed line and load lugs accepting 6 AWG to 350 kcmil wire. It offers a 35 kAIC rating at 480VAC and features fixed thermal and adjustable magnetic trip functions. The breaker mounts into Siemens P1, P2, and P3 panelboards, Sentron enclosures, and motor control centers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD62B175L |
| Series | FXD6 |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Mechanical Interlock |
|---|---|
| Accessories | Line & Load Lugs (Factory Installed) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the L suffix in the FXD62B175L catalog number indicate?
The L signifies that the breaker includes factory-installed line and load lugs. The provided lugs are rated to accept 6 AWG to 350 kcmil copper or aluminum conductors.
Which Siemens panelboards accept this FD frame breaker?
The FXD62B175L is compatible with Siemens P1, P2, and P3 panelboards. It can also be installed in Sentron switchboards, motor control centers, and standalone Sentron enclosures.
How is the trip unit configured on the FXD62B175L?
This breaker uses a thermal-magnetic trip unit. It provides fixed thermal protection for long-time overloads and features an adjustable magnetic dial on the front for instantaneous short-circuit protection.
How is a unit mount breaker installed compared to a standard branch breaker?
The FXD62B175L is a unit mount, feed-thru breaker. It bolts directly to a backpan or mounting plate and uses cables for both line and load connections, rather than plugging into or bolting directly to a panelboard busbar.
Can this breaker replace legacy I-T-E FD frame breakers?
Yes, Siemens Sentron FXD6 breakers are direct replacements for older I-T-E and Siemens-Allis FD6 and FXD6 frame circuit breakers, provided the amperage, voltage, and pole requirements match your specific application.
