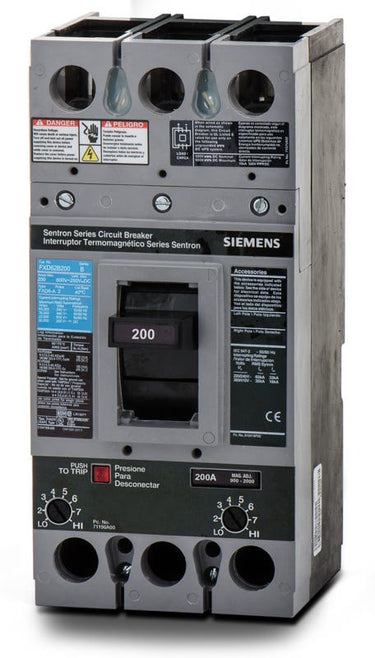

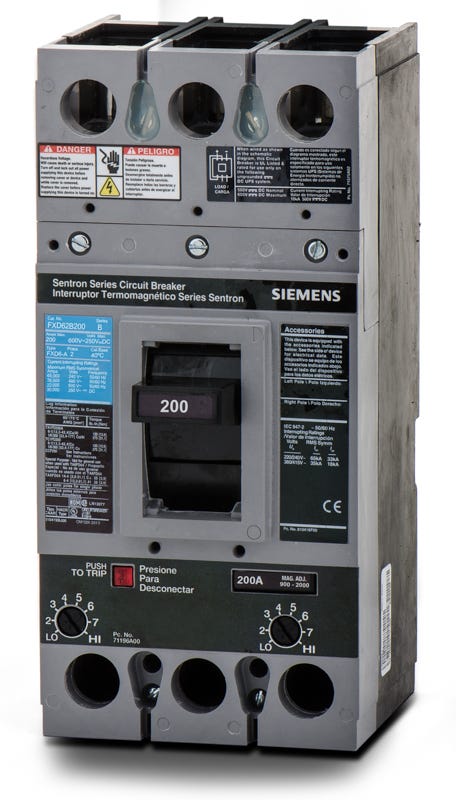

Siemens FXD62B200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Siemens
FXD62B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD62B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD62B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD62B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | No Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens FXD62B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | No Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
225A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens FXD62B200 is a 2-pole, 200A Sentron series MCCB. It provides robust long-time and instantaneous (LI) trip functions. This unit mount breaker integrates into Siemens P1, P2, and P3 panelboards and switchboards. Supplied without lugs, it allows for customized terminal configurations. Rated for 35kAIC at 480VAC, the breaker features a non-interchangeable trip unit, HACR certification, and adjustable magnetic settings.Specifications
| Brand | Siemens |
|---|---|
| Series | FXD6 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits |
|---|---|
| Accessories | No Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures accept the FXD62B200 breaker?
This breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as Sentron switchboards, motor control centers, and Sentron enclosures.
Are lugs included with the FXD62B200?
No, this breaker is supplied without lugs. You must source the appropriate lug kit separately, such as the TA1FD350A, which accepts #6 AWG to 350 kcmil copper or aluminum wire.
How is the trip unit configured on the FXD62B200?
It features a thermal magnetic trip unit with a fixed thermal setting and an adjustable magnetic trip. This allows you to adjust the instantaneous short-circuit response to suit your specific load requirements.
Can the Siemens FXD62B200 replace a legacy I-T-E breaker?
Yes, this is a direct replacement for the older I-T-E FXD62B200. Siemens retained the original I-T-E catalog numbers and physical dimensions for the Sentron FD frame series.
Is the FXD62B200 rated for DC applications?
Yes, this breaker is rated for direct current systems up to 250VDC, where it provides an interrupting rating of 30kAIC.
Does the FXD62B200 include ground fault or arc fault protection?
No, this is a standard thermal magnetic molded case circuit breaker. It does not provide GFCI or AFCI equipment protection.
