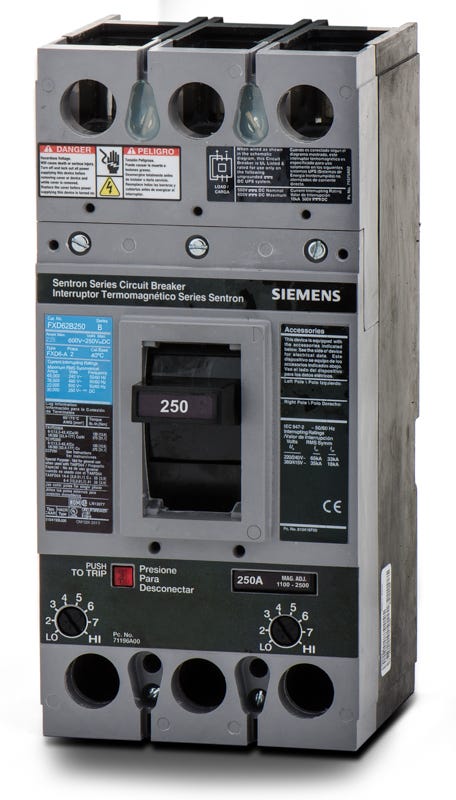

Siemens FXD62B250L Molded Case Circuit Breaker
- 250A
- 2 Pole
- Unit Mount
Siemens
FXD62B250L
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD62B250L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD62B250L - 250A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Built for efficient deployment, this 250A MCCB includes factory-installed lugs to save time on site. The FD-frame device utilizes thermal-magnetic trip technology to deliver precise LI fault protection. The unit integrates seamlessly into Siemens Sentron P1, P2, and P3 panelboards, as well as compatible switchboards. It accepts 6 AWG to 350 kcmil copper or aluminum wire. Delivering 65kAIC at 240VAC, this breaker features an adjustable magnetic trip and a HACR rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD62B250L |
| Series | FXD6 |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line & Load Lugs (Factory Installed) |
| Standards | HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the FXD62B250 and the FXD62B250L?
The L suffix indicates that the breaker includes factory-installed line and load lugs. Both models share the same 250A FD frame and thermal-magnetic trip unit.
How does the FXD6 series differ from the FD6 series?
The FXD6 series features a non-interchangeable, fixed thermal trip unit. The FD6 series allows for interchangeable trip units. Both use the same physical FD frame size.
Which Siemens enclosures are compatible with this FD frame breaker?
This breaker fits in Sentron FD frame enclosures. Compatible models include the F6N1S for NEMA 1 surface mounting, F6N1F for NEMA 1 flush mounting, F6N3R for NEMA 3R outdoor applications, and FD6SS4 for NEMA 4/4X environments.
How is the magnetic trip adjusted on the FXD62B250L?
While the thermal trip is fixed at 250A, the instantaneous magnetic trip can be adjusted from 1100A to 2500A using the dial on the front of the breaker. This allows you to fine-tune short-circuit protection for your specific application.
Can I install this unit mount breaker directly into a Siemens P1 or P2 panelboard?
Yes, but because it is a unit mount, feed-thru breaker, it does not plug directly onto the bus. You will need the correct mounting strap kit or hardware specific to your P1, P2, or P3 panelboard to complete the installation.
Is the FXD62B250L suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use in heating, air conditioning, and refrigeration motor circuits.
