Siemens HEB3B020B Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Siemens
HEB3B020B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HEB3B020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

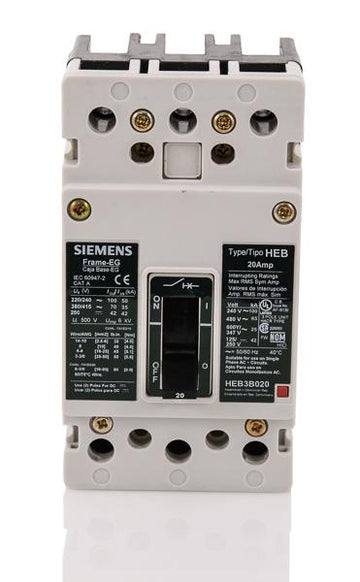

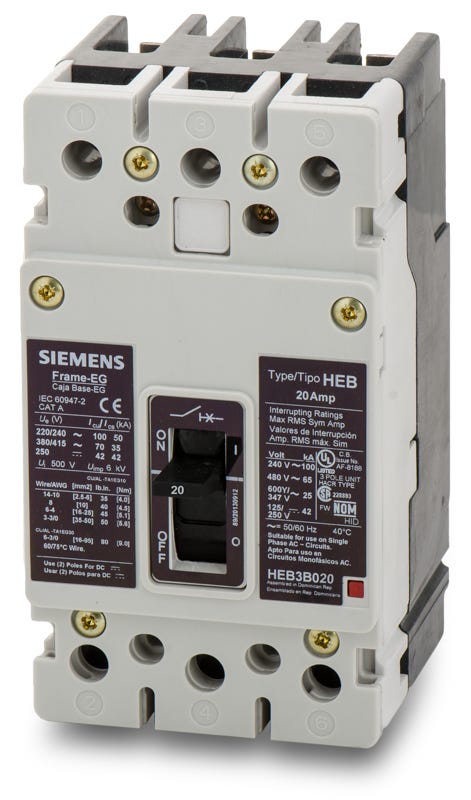

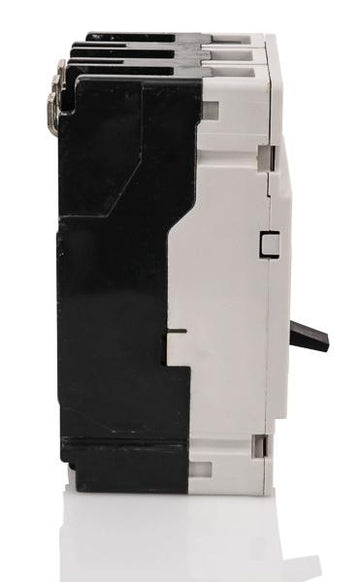

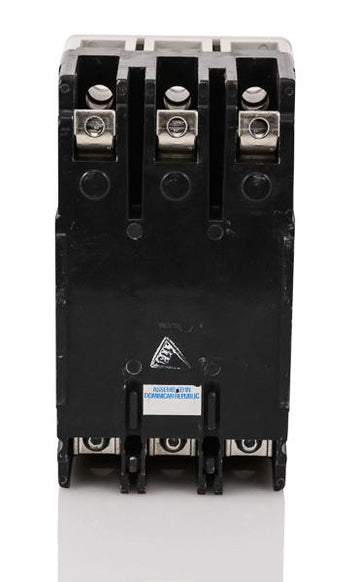

Siemens HEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B020B |
| Series | HEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity |
Quantity
Siemens HEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | HEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, this 20A, 3-pole MCCB belongs to the Siemens SENTRON family. It delivers dependable long-time and instantaneous trip functions for facility power management. The breaker installs into Siemens P1, P2, and P3 panelboards via a standard bolt-on configuration. Note that this legacy HEB frame is replaced by the 3VA4120-6ED34-0AA0, which requires a 3VA41 strap kit. It features a 100kAIC rating at 240VAC and includes load side lugs for quick wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HEB3B020B |
| Series | HEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity |
Product FAQs
5 answersCan the HEB3B020B be installed in residential Siemens load centers?
No. This circuit breaker utilizes a bolt-on connection designed strictly for commercial and industrial Siemens P1, P2, and P3 panelboards. It will not physically fit or safely connect to the bus bars in standard plug-on residential load centers.
What is the difference between Siemens NEB and HEB frame breakers?
Both are part of the Siemens EG frame family and share the same physical dimensions, but the HEB frame is the high-interrupting version. The HEB provides superior short-circuit protection, reaching up to 100kAIC at 240VAC and 65kAIC at 480VAC. The standard NEB frame carries lower maximum interrupting ratings at these voltages.
Does the HEB3B020B include wire lugs for both the line and load sides?
No. Because this is a panelboard-mount breaker, the line side bolts directly to the internal bus bars of the panel. Wire lugs are only provided on the load side for landing your outgoing branch circuit conductors.
Can the trip settings be modified in the field on the HEB3B020B?
No, the thermal-magnetic trip unit is completely fixed. Both the long-time overload and instantaneous short-circuit protection thresholds are permanently factory-calibrated for a 20-amp load and cannot be field-adjusted.
Is it code-compliant to install this HEB frame breaker in a non-Siemens panelboard?
No. For safety and UL compliance, Siemens bolt-on breakers must only be installed in approved Siemens commercial panelboards. Retrofitting them into panels from other manufacturers compromises the electrical connection and violates electrical safety codes.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
