Siemens HEB3B030B Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
HEB3B030B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HEB3B030B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

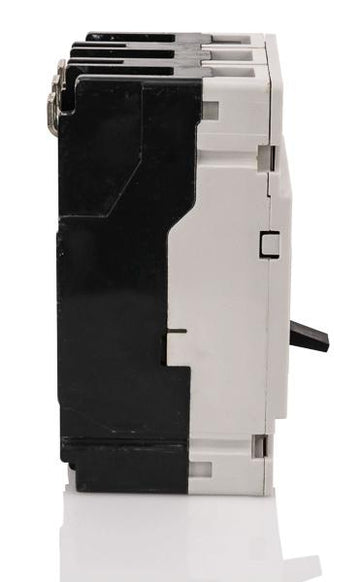

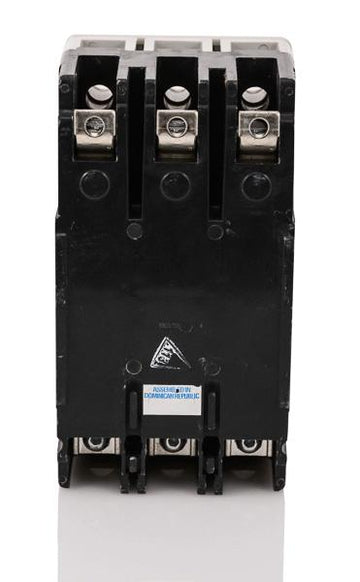

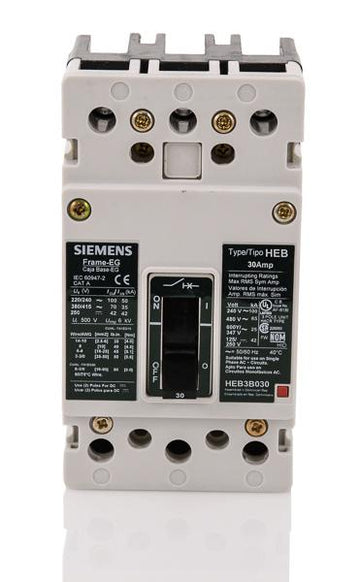

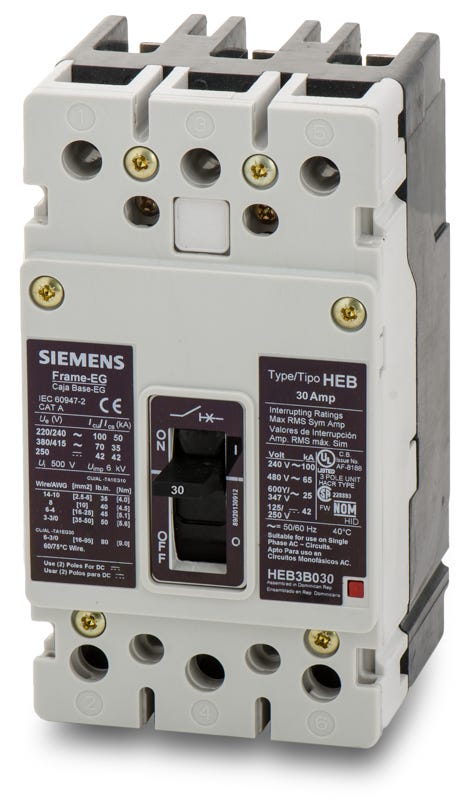

Siemens HEB3B030B - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens HEB3B030B - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B030B |
| Series | HEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (3TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Quantity
Siemens HEB3B030B - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B030B-R |
| Series | HEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (3TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Designed for demanding industrial environments, the Siemens HEB3B030B is a 30A, 3-pole MCCB providing long-time and instantaneous protection. This bolt-on EG-frame device mounts securely into Siemens P3, P4, and P5 panelboards. For maintenance scenarios, Siemens designates the HEG3B030B as the direct substitute. Capable of clearing significant faults, it boasts a 65 kAIC rating at 480VAC. It includes factory-installed load side lugs and carries HACR and HID ratings for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HEB3B030B-R |
| Series | HEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (3TA1EG10) |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhich Siemens panelboards accept the HEB3B030B circuit breaker?
This breaker secures directly to the busbars of Siemens P3, P4, and P5 panelboards using a standard bolt-on connection.
Can the HEB3B030B be used to upgrade an existing NEB frame breaker?
Yes, HEB and NEB breakers share identical physical dimensions and panelboard mounting styles. Upgrading to the HEB3B030B provides a higher short-circuit interrupting rating of 65kA at 480VAC, compared to the standard 35kA rating of the NEB series.
What conductor sizes and materials do the factory lugs accept?
The factory-installed connections on this breaker accept 14 AWG through 1/0 AWG copper (Cu) or aluminum (Al) wire.
Is this circuit breaker approved for direct current (DC) systems?
Yes, the HEB3B030B is rated for use in DC applications up to 250VDC, where it provides a 42kA interrupting capacity.
Is the HEB3B030B HACR rated for HVAC loads?
Yes, this molded case circuit breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment circuits.
Are the thermal and magnetic trip settings adjustable on this model?
No, this unit features a fixed thermal and fixed magnetic trip mechanism for long-time and instantaneous (LI) overcurrent protection. If your application requires field-adjustable trip curves, you will need to select a breaker with an electronic trip unit.
