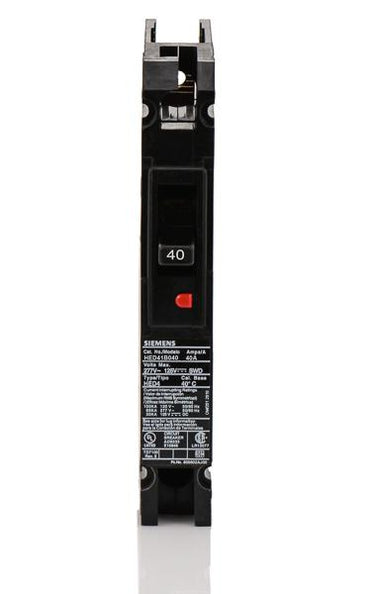

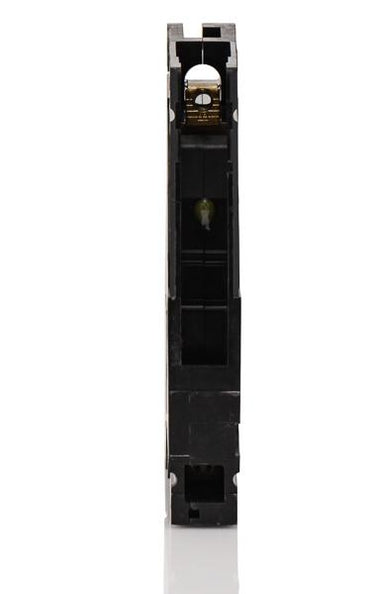

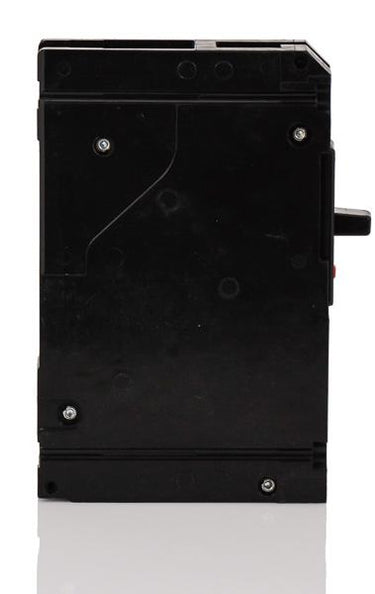

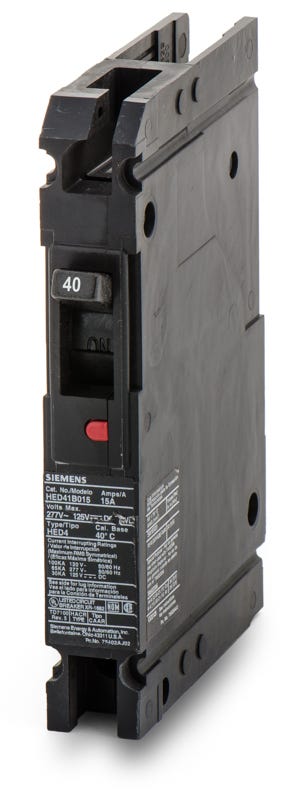

Siemens HED41B040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Siemens
HED41B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED41B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED41B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED41B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B040 |
| Series | HED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 240VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Siemens HED41B040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B040-R |
| Series | HED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 240VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens HED41B040 is a 1-pole, 40A molded case circuit breaker from the Sentron ED-Frame family. It provides reliable thermal-magnetic protection for demanding electrical systems. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards, as well as SB switchboards. For future upgrades, it is replaced by the 3VA5140-6ED11-0AA0 when using a retrofit kit. Rated for 100kAIC at 120VAC, it features a non-interchangeable trip.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED41B040 |
| Series | HED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 240VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich panelboards are compatible with the HED41B040 circuit breaker?
This bolt-on branch breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as SB switchboards.
Can the HED41B040 be used in DC electrical systems?
Yes, this breaker is rated for 125VDC applications and provides an interrupting capacity of 30kA at that voltage.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 10 AWG to 4 AWG copper (Cu) or aluminum (Al) conductors.
What is the difference between the HED4 and ED4 breaker series?
The HED4 series is the high-interrupting version of the standard ED4 frame. It offers higher short-circuit protection, such as a 25kAIC rating at 277VAC, for more demanding commercial and industrial applications.
What does the LI trip function mean on the HED41B040?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection against overloads and Instantaneous (I) protection against short circuits.
