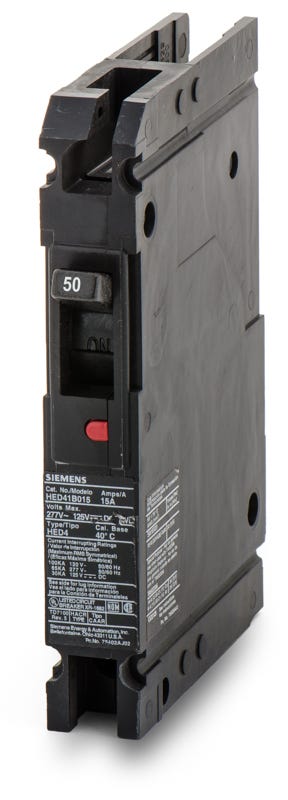

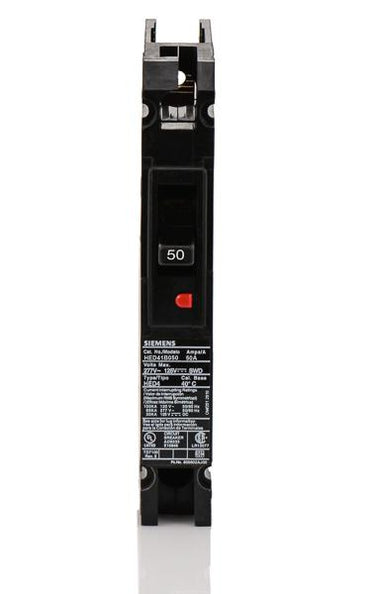

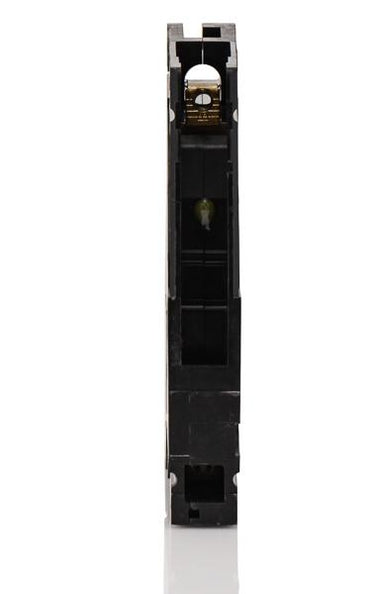

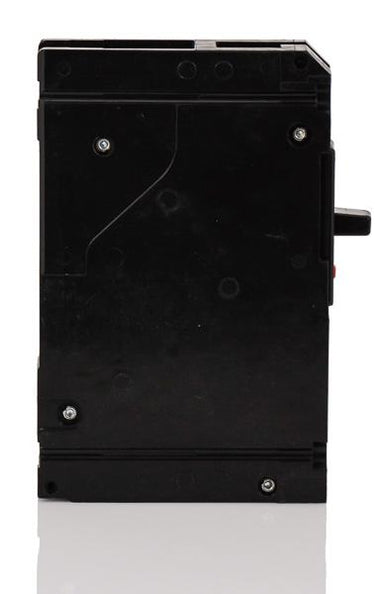

Siemens HED41B050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Siemens
HED41B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED41B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED41B050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED41B050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B050 |
| Series | HED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Siemens HED41B050 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED41B050-R |
| Series | HED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial power systems, the Siemens HED41B050 delivers dependable thermal-magnetic trip functions. This 1-pole, 50A MCCB belongs to the rugged Sentron ED Frame series. It mounts into Siemens P1, P2, and P3 panelboards. It is replaced by the 3VA5150-6ED11-0AA0, which requires a retrofit kit for panelboard integration. Delivering 100kAIC at 120VAC, the breaker includes a trip-free mechanism, reverse feed support, and HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED41B050 |
| Series | HED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the HED41B050?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as SB switchboards. It mounts directly to the bus using a secure bolt-on connection.
Can I use the HED41B050 to replace a standard ED41B050 breaker?
Yes, the HED41B050 shares the exact same physical dimensions and ED frame footprint as the standard ED41B050. The HED4 version provides a higher interrupting rating (25kAIC at 277VAC compared to 22kAIC for the ED4), making it a safe, direct upgrade for systems requiring higher fault protection.
Is there a higher interrupting 1-pole ED frame breaker than the HED41B050?
No, the HED41B050 provides the highest interrupting rating available for a 1-pole Siemens ED frame breaker. The extra-high interrupting HHED6 breakers are only manufactured in 2-pole and 3-pole configurations.
Can the HED41B050 be reverse fed?
Yes, this breaker features a non-interchangeable trip unit and is UL listed for reverse feed applications. This allows power to flow from the OFF end toward the ON end, providing flexibility for specific panel configurations.
Is the HED41B050 HACR rated?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
Does this breaker have a trip-free mechanism?
Yes, it features a trip-free mechanism. This ensures the breaker will trip during an overcurrent or short circuit event even if the handle is physically held in the ON position.
