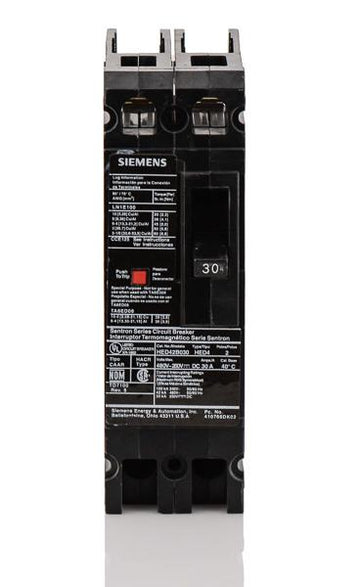

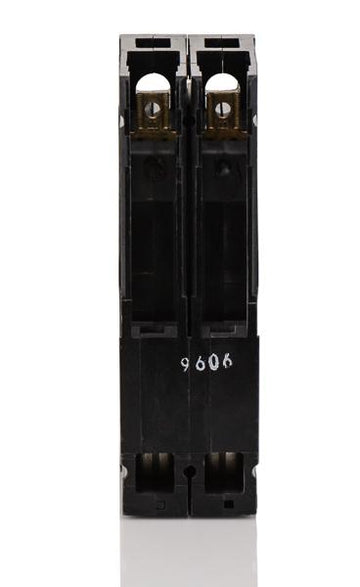

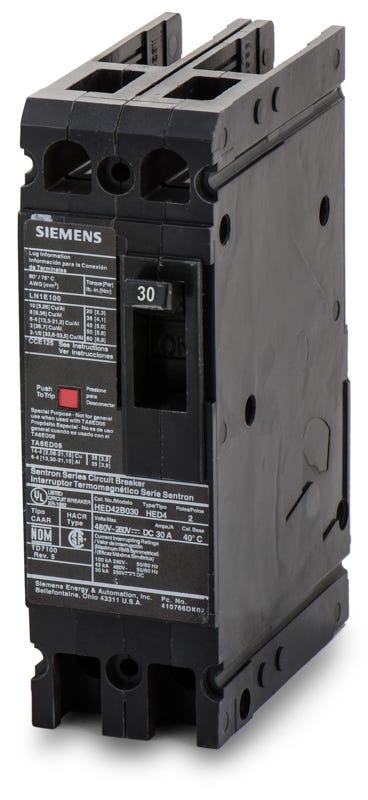

Siemens HED42B030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Siemens
HED42B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED42B030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED42B030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B030 |
| Series | HED4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens HED42B030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B030-R |
| Series | HED4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Part of the Sentron family, this 30-amp, two-pole MCCB provides reliable thermal-magnetic protection for commercial facilities. The bolt-on design installs into Siemens Sentron panelboards and SB switchboards. It can be replaced by the newer 3VA5130-6ED21-0AA0 frame. Rated for 100kA interrupting capacity at 240VAC, it handles demanding fault conditions. The unit features non-interchangeable trips and an HACR rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B030 |
| Series | HED4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panels and enclosures are compatible with the HED42B030?
This breaker is designed for use in Siemens Sentron panelboards, SB switchboards, and compatible motor control centers.
How does the HED42B030 differ from the standard ED42B030?
The HED42B030 is the high-interrupting version of the ED frame, providing a 42kAIC rating at 480VAC. The standard ED42B030 offers an 18kAIC rating at 480VAC.
What wire sizes are accepted by the standard lugs on this breaker?
The factory lugs accept copper or aluminum wire ranging from 10 AWG to 1/0 AWG.
How does the HED42B030 mount into a panel?
It features a bolt-on connection type, requiring it to be bolted directly to the busbars of the panelboard or switchboard.
Can this breaker be used in direct current applications?
Yes, it is rated for up to 250VDC with an interrupting capacity of 30kA, making it suitable for specific DC circuits.
What type of trip unit is installed in the HED42B030?
It features a fixed thermal magnetic trip unit providing long-time and instantaneous (LI) overcurrent protection.
What frame size does the HED42B030 belong to?
It is part of the Siemens Sentron ED Frame group, specifically the HED frame type.
