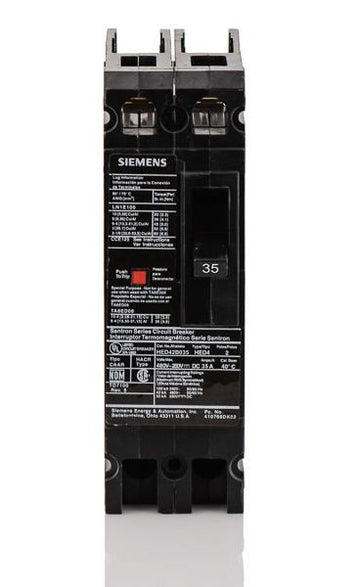

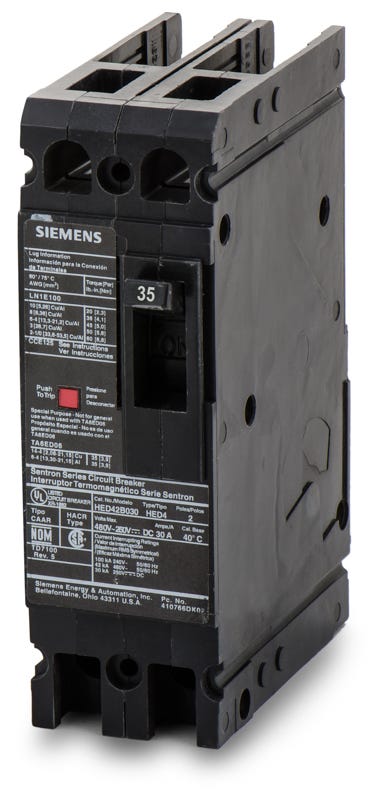

Siemens HED42B035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Siemens
HED42B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED42B035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED42B035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B035 |
| Series | HED4 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens HED42B035 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B035-R |
| Series | HED4 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED-frame family, this 35-amp, two-pole molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial electrical systems. It mounts into Siemens P2 and P3 panelboards or switchboards to secure branch circuits. Rated for 100kAIC at 240VAC and 42kAIC at 480VAC, the unit features non-interchangeable trips and includes load-side lugs. Note that this legacy model is replaced by the 3VA5135-6EC21-0AA0, which requires a mounting kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B035 |
| Series | HED4 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Siemens HED42B035 and the standard ED42B035?
The HED42B035 is the high-interrupting version of the ED4 frame. It provides an interrupting rating of 42kA at 480VAC, while the standard ED42B035 is rated for 18kA at 480VAC.
Which panelboards are compatible with the HED42B035 circuit breaker?
This bolt-on breaker is designed for installation in Siemens Sentron P2 and P3 panelboards, as well as compatible Siemens switchboards.
Is the Siemens HED42B035 suitable for DC voltage applications?
Yes, this breaker is rated for DC applications up to 250VDC, providing a 30kA interrupting capacity for direct current systems.
Can this ED frame breaker be reverse fed?
Yes, Siemens ED frame molded case circuit breakers, including the HED42B035, are reverse feed capable for flexible installation.
Is the HED42B035 breaker HACR rated?
Yes, this breaker carries an HACR rating, making it approved for use with heating, air conditioning, and refrigeration equipment motor loads.
Does this breaker mount on a standard DIN rail?
No, the HED42B035 is a bolt-on molded case circuit breaker designed specifically for chassis mounting in Siemens panelboards and switchboards. It is not compatible with DIN rail installation.
