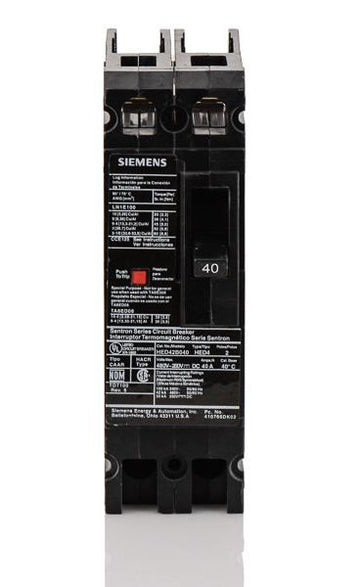

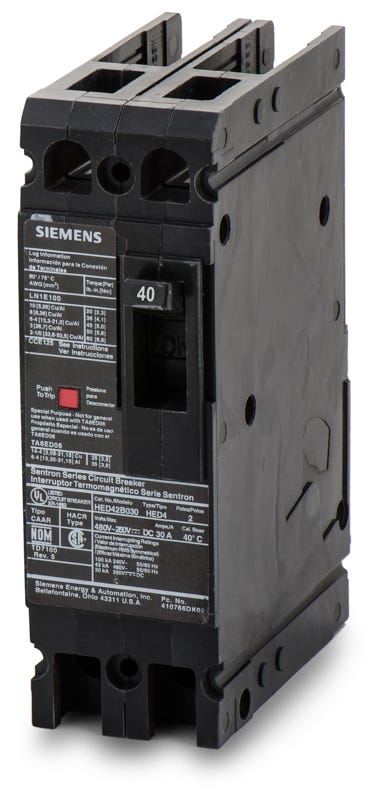

Siemens HED42B040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
HED42B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED42B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED42B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B040 |
| Series | HED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens HED42B040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED42B040-R |
| Series | HED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust industrial power distribution, this 40-amp, two-pole breaker provides essential long-time and instantaneous trip functions. The bolt-on unit is engineered to fit Siemens Sentron panelboards and SB switchboards, ensuring stable connections for critical branch circuits. With an impressive 100kAIC rating at 240VAC and 42kAIC at 480VAC, it handles severe fault currents. For future upgrades, this model crosses over to the 3VA5140-6EC21-0AA0 using a specific strap kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B040 |
| Series | HED4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the HED42B040 circuit breaker?
This bolt-on breaker installs into Siemens Sentron Panelboards, including P1, P2, P3, P4, and P5 series, as well as Siemens SB Switchboards.
Can the Siemens HED42B040 be reverse fed?
Yes, Siemens ED-frame circuit breakers are suitable for reverse feed applications. The terminals are not restricted to line or load, allowing power to be fed from either direction.
Is the HED42B040 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for the specific protection requirements of heating, air conditioning, and refrigeration equipment.
What is the difference between Siemens ED4 and HED4 circuit breakers?
The HED4 is the high-interrupting capacity version of the standard ED4 frame. The HED42B040 provides an interrupting rating of 42kAIC at 480VAC, whereas standard ED4 breakers have a lower short-circuit rating.
Is this breaker suitable for DC applications?
Yes, the HED42B040 is rated for use in direct current systems up to 250VDC, providing an interrupting rating of 30kAIC.
Are the trip settings on the HED42B040 adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. The trip settings cannot be adjusted in the field.
