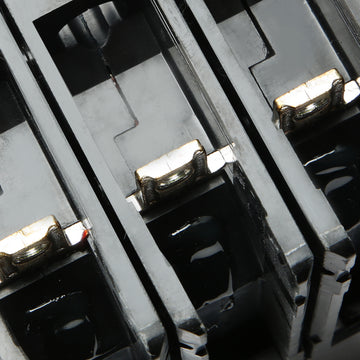

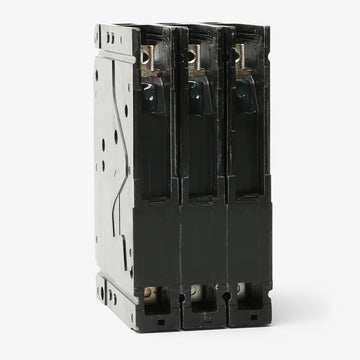

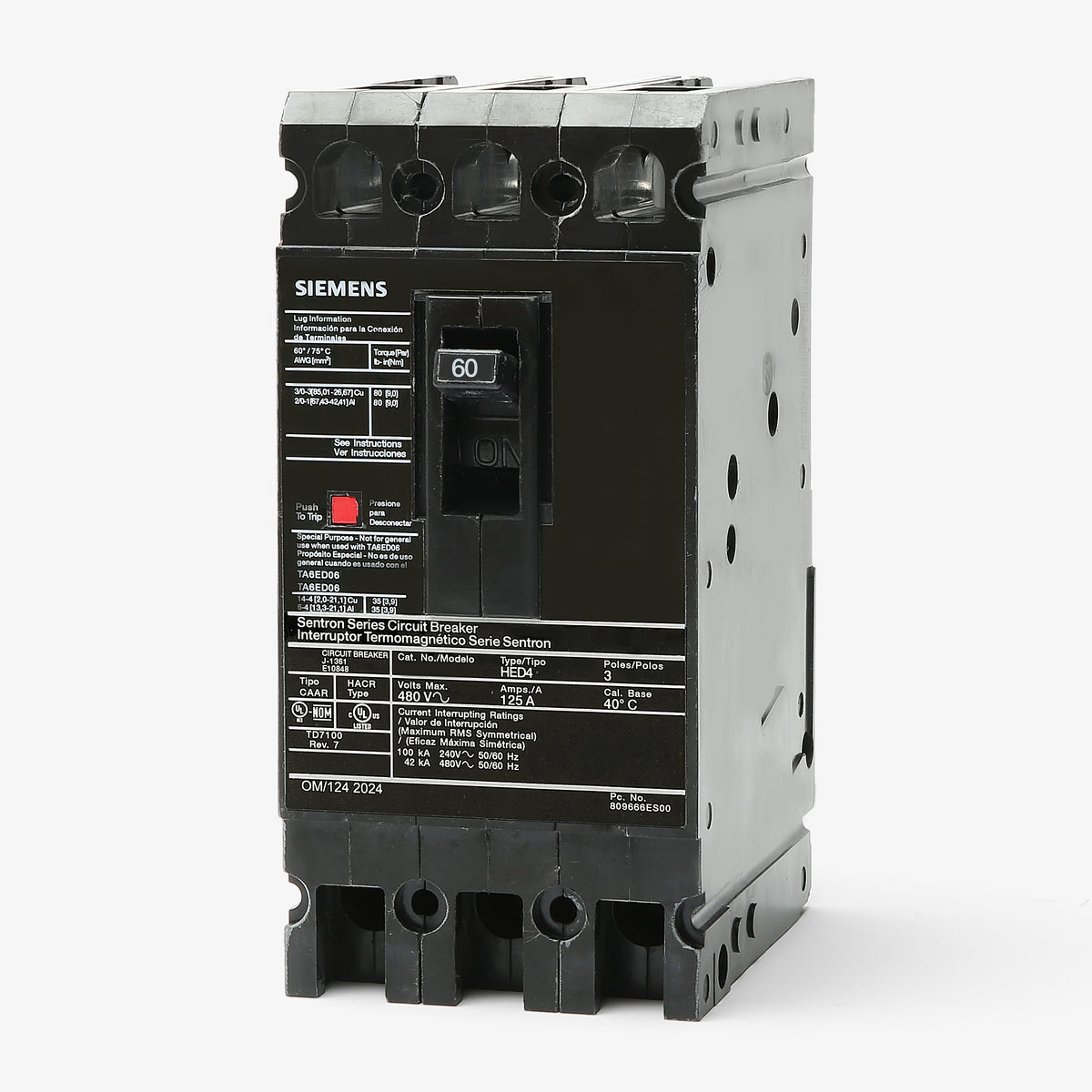

Siemens HED43B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
HED43B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED43B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B060 |
| Series | HED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens HED43B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B060-R |
| Series | HED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for Siemens Sentron panelboards and SB switchboards, the HED43B060 is a 3-pole, 60A bolt-on MCCB. It delivers dependable thermal-magnetic protection with fixed LI trip functions for commercial applications. This ED frame breaker features a bolt-on connection and includes load side lugs. Note that this model is replaced by the 3VA5160-6EC31-0AA0, which requires a mounting strap kit for panelboard installation. With a 42kAIC rating at 480VAC, this HACR-rated breaker safely clears faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B060 |
| Series | HED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards accept the HED43B060 circuit breaker?
This ED-frame breaker is designed to bolt directly into the bus work of Siemens Sentron series panelboards and SB series switchboards.

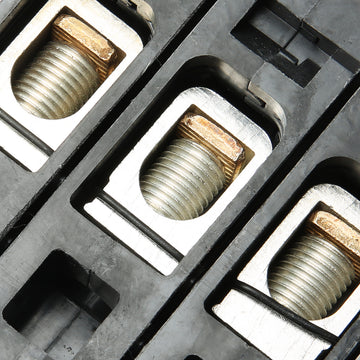

Does the HED43B060 include line and load lugs?
Standard HED43B060 breakers are supplied with load-side lugs only, utilizing lug kit LN1E100. The line side is designed to bolt directly to the panelboard bus. If your application requires unit mounting with cables on both sides, you will need to source line lugs separately or order the lugged version (catalog number HED43B060L).
Can the thermal-magnetic trip settings be adjusted?
No, this breaker features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time overcurrent and instantaneous short-circuit trip thresholds are factory calibrated and cannot be field modified.
Is the HED43B060 suitable for reverse feed applications?
Yes, Siemens ED-frame molded case circuit breakers can be reverse connected. They are safe to back-feed when utilized as a main breaker, provided the installation complies with current NEC guidelines.
Can I use this Siemens breaker to replace an older ITE HED43B060?
Yes, Siemens manufactures the Sentron line that was originally developed by ITE. The modern Siemens HED43B060 is an exact, UL-listed, drop-in replacement for the legacy ITE catalog number.
What is the ambient calibration temperature for this breaker?
The internal thermal elements for this molded case circuit breaker are calibrated for a standard 40 degrees Celsius (104 degrees Fahrenheit) ambient temperature environment.
Does this breaker provide GFCI or AFCI protection?
No, the HED43B060 provides standard overcurrent and short-circuit protection only. It does not contain ground fault or arc fault detection circuitry.
