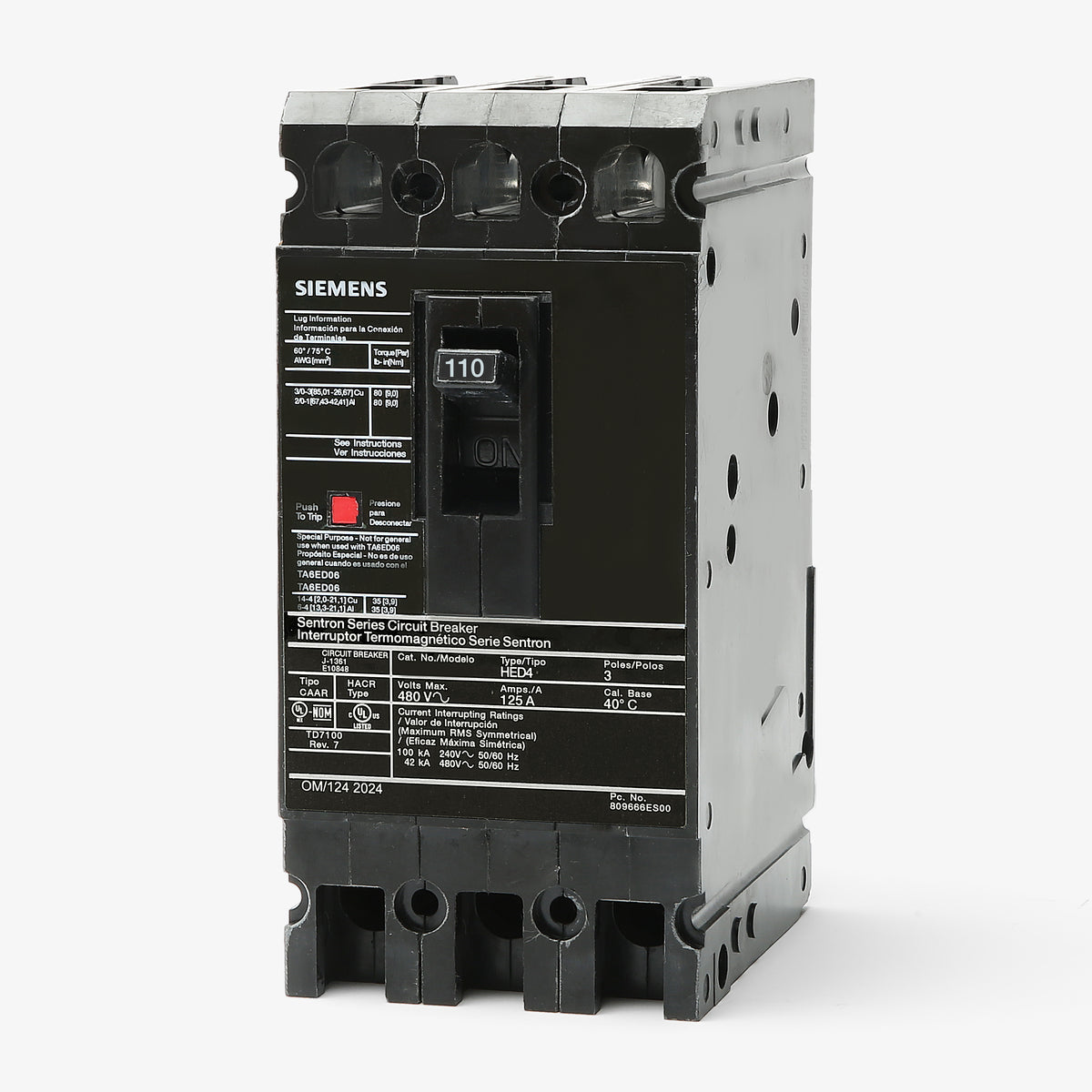

Siemens HED43B110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
HED43B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED43B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B110 |
| Series | HED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens HED43B110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B110-R |
| Series | HED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 110A bolt-on breaker provides essential thermal-magnetic protection. It is engineered for integration within Siemens Sentron panelboards and SB switchboards. The device secures firmly to the busbar and includes load-side lugs. When transitioning to newer infrastructure, this model is superseded by the 3VA5111-6EC31-0AA0. Delivering a 42kA interrupting rating at 480VAC, the HACR-rated unit handles significant fault currents safely.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B110 |
| Series | HED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Siemens HED43B110 and the ED43B110?
While both are 110-amp, 3-pole ED frame breakers, they differ in their short-circuit interrupting capabilities. The HED43B110 is a high-interrupting breaker rated for 42kAIC at 480VAC, whereas the standard ED43B110 is rated for 18kAIC at 480VAC.
Can the Siemens HED43B110 be reverse fed?
Yes. Siemens ED frame thermal-magnetic circuit breakers, including the HED43B110, do not have Line and Load markings and are suitable for reverse feed applications.
Will the Siemens HED43B110 replace an older I-T-E HED43B110?
Yes. Siemens acquired I-T-E and retained the original ED frame footprint. A new Siemens HED43B110 will physically fit and function as a direct replacement for an obsolete I-T-E breaker with the exact same catalog number.
Are the trip units on the HED43B110 adjustable or interchangeable?
No. The HED43B110 features a fixed thermal and fixed magnetic trip unit. Additionally, Siemens ED frame breakers do not have removable trip units, meaning the amperage rating cannot be modified in the field.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the breaker provides Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function provides immediate tripping during severe short circuits.
What enclosures and panels are compatible with the HED43B110?
This bolt-on breaker is designed for installation in Siemens Sentron panelboards, SB switchboards, and motor control centers. It requires standard ED frame mounting hardware to attach to the bus.
