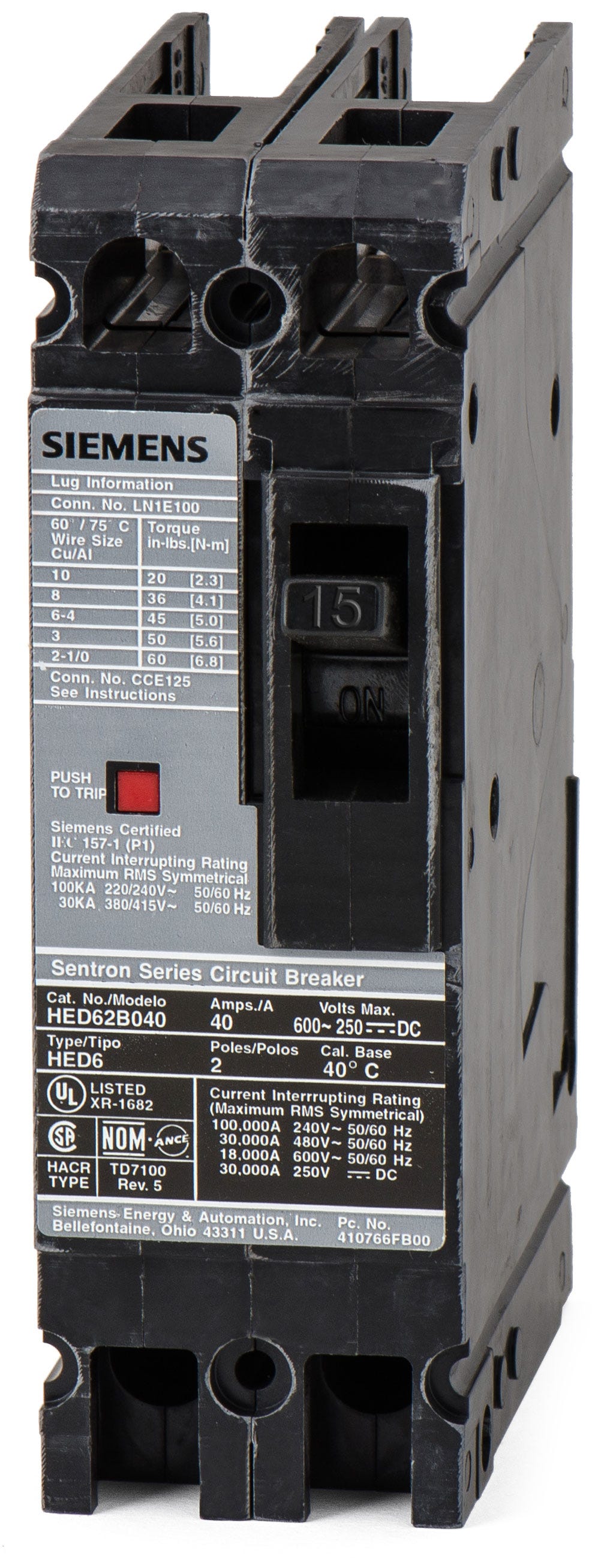

Siemens HHED62B015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
HHED62B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
HHED62B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HHED62B015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HHED62B015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED62B015 |
| Series | HHED6 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Siemens HHED62B015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED62B015-R |
| Series | HHED6 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial environments, the Siemens HHED62B015 provides reliable overcurrent protection. This 15A, 2-pole molded case circuit breaker features a rugged bolt-on design for secure power distribution. It installs into Siemens P1, P2, and P3 panelboards or switchboards. For modern upgrades, this ED-frame unit is replaced by the 3VA series using a mounting kit. Rated for 600VAC, it delivers an extra-high interrupting capacity of 65kA at 480VAC with fixed thermal-magnetic trip.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HHED62B015 |
| Series | HHED6 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the HHED62B015 breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can I install this breaker in a standard residential load center?
No, the HHED62B015 is a bolt-on breaker designed for commercial panelboards and switchboards. It will not fit in standard residential plug-on load centers.
What wire sizes are accepted by the lugs on this breaker?
The terminal lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Does this breaker snap into place or require hardware to install?
The HHED62B015 is a bolt-on circuit breaker, meaning it requires mounting hardware to secure it directly to the panelboard bus bars.
Can this breaker be used in direct current (DC) systems?
Yes, it is rated for use in DC applications up to 250VDC, providing an interrupting capacity of 30kA at that voltage.
Are the thermal and magnetic trip settings adjustable on the HHED62B015?
No, this breaker features fixed thermal and fixed magnetic trip settings for its long-time and instantaneous protection functions.
What frame family does this circuit breaker belong to?
It is part of the Siemens SENTRON series and belongs to the ED frame group, specifically the HHED frame type.
