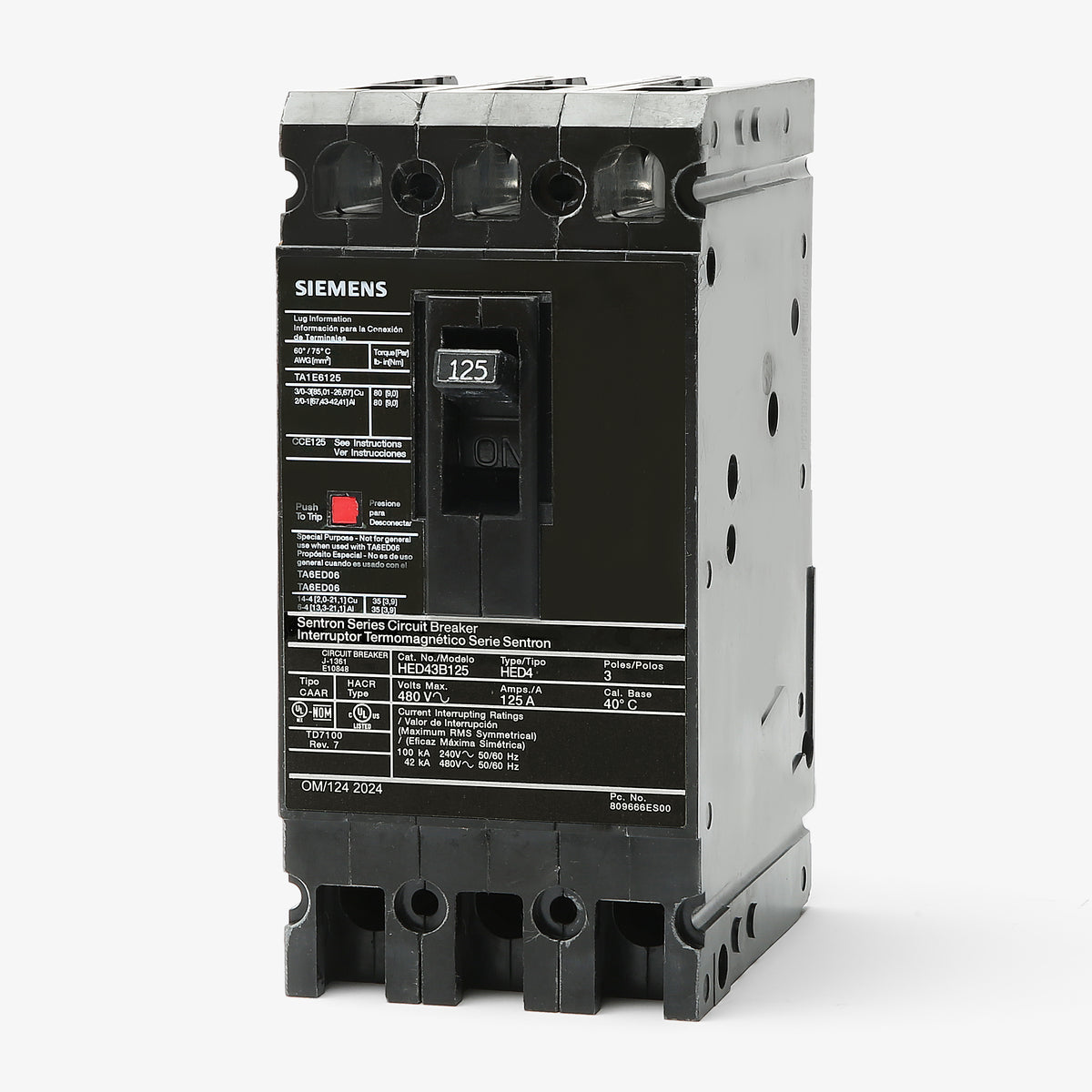

Siemens HHED63B125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Siemens
HHED63B125
Molded Case Circuit Breaker
Brand
Siemens
SKU
HHED63B125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HHED63B125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens HHED63B125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B125 |
| Series | HHED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Quantity
Siemens HHED63B125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B125-R |
| Series | HHED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial applications, the Siemens HHED63B125 is a 3-pole, 125A molded case circuit breaker. This SENTRON ED frame device provides reliable thermal-magnetic protection for systems up to 600VAC. It installs into Siemens P1, P2, and P3 panelboards using a secure bolt-on connection. For modern upgrades, this unit is replaced by the 3VA series with an adapter kit. The breaker delivers an extra high 65kAIC rating at 480V and features fixed LI trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HHED63B125-R |
| Series | HHED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | HHED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Product FAQs
6 answersWhich panelboards are compatible with the HHED63B125?
This ED frame breaker mounts directly into Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards designed for bolt-on breakers.
What distinguishes the HHED6 series from standard ED4 or ED6 breakers?
The HHED6 series designates a much higher short-circuit interrupting rating within the Sentron ED frame family. It provides up to 65kAIC at 480VAC and 100kAIC at 240VAC, allowing it to be installed in systems with higher available fault currents than standard ED4, ED6, or HED4 models.
Can the HHED63B125 replace an older ED6 or HED4 breaker?
Yes. Because they share the exact same physical dimensions and bolt-on mounting configuration within the Siemens ED frame family, this breaker can physically replace lower-rated ED4, ED6, or HED4 models while upgrading the overall short-circuit rating of the circuit.
What wire sizes do the factory lugs on this breaker accept?
The standard installed lugs accept 3 AWG to 3/0 AWG copper wire or 1 AWG to 2/0 AWG aluminum wire. Always refer to the label on the side of the breaker for specific torque requirements during termination.
Is the trip unit on the HHED63B125 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are preset at the factory and cannot be adjusted by the installer.
Can this 3-pole breaker be utilized on DC circuits?
Yes, in addition to its standard AC ratings, this breaker is certified for use on 250VDC systems with a DC interrupting capacity of 30kA.
