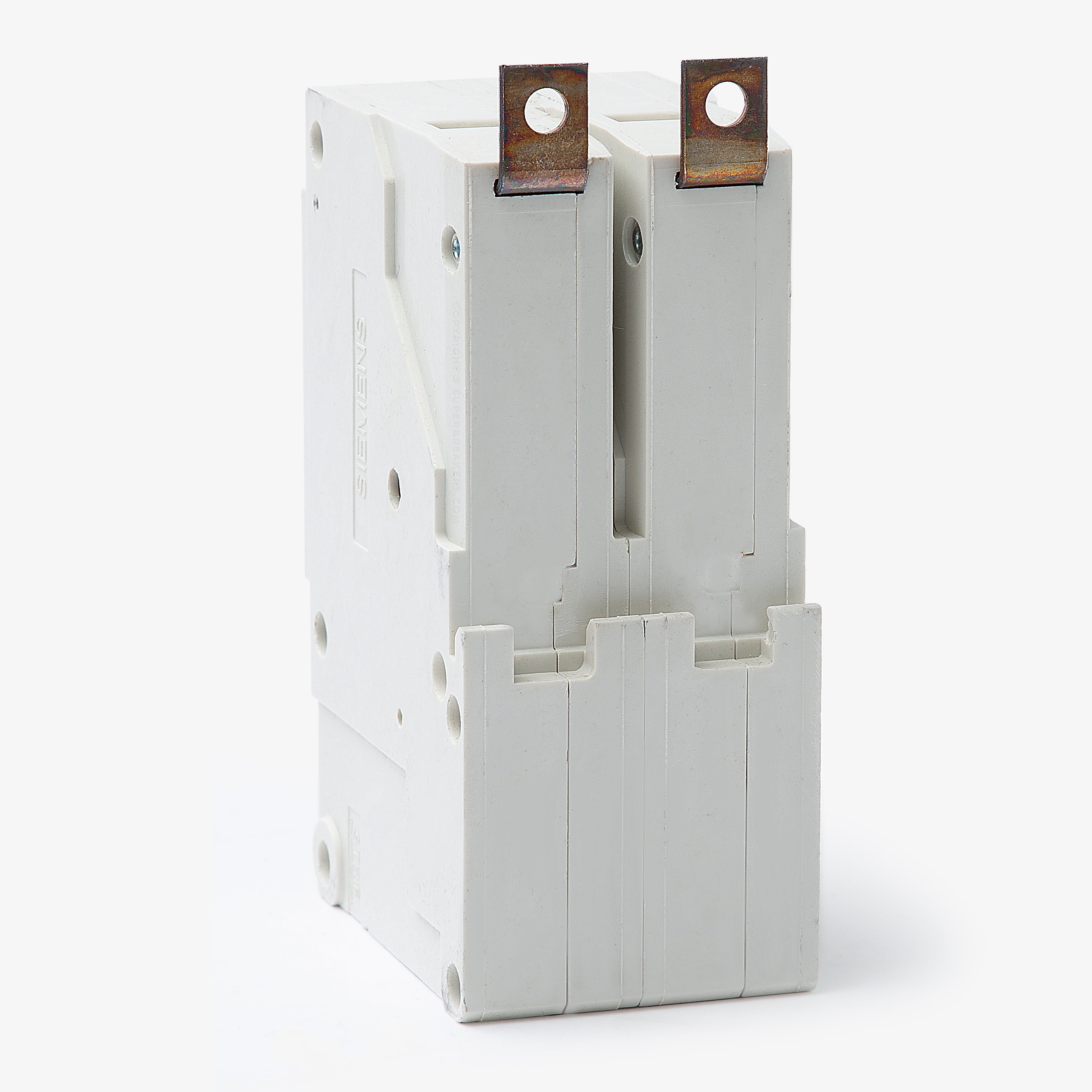

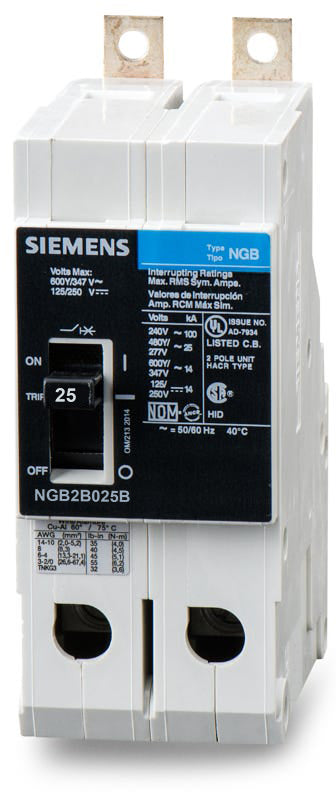

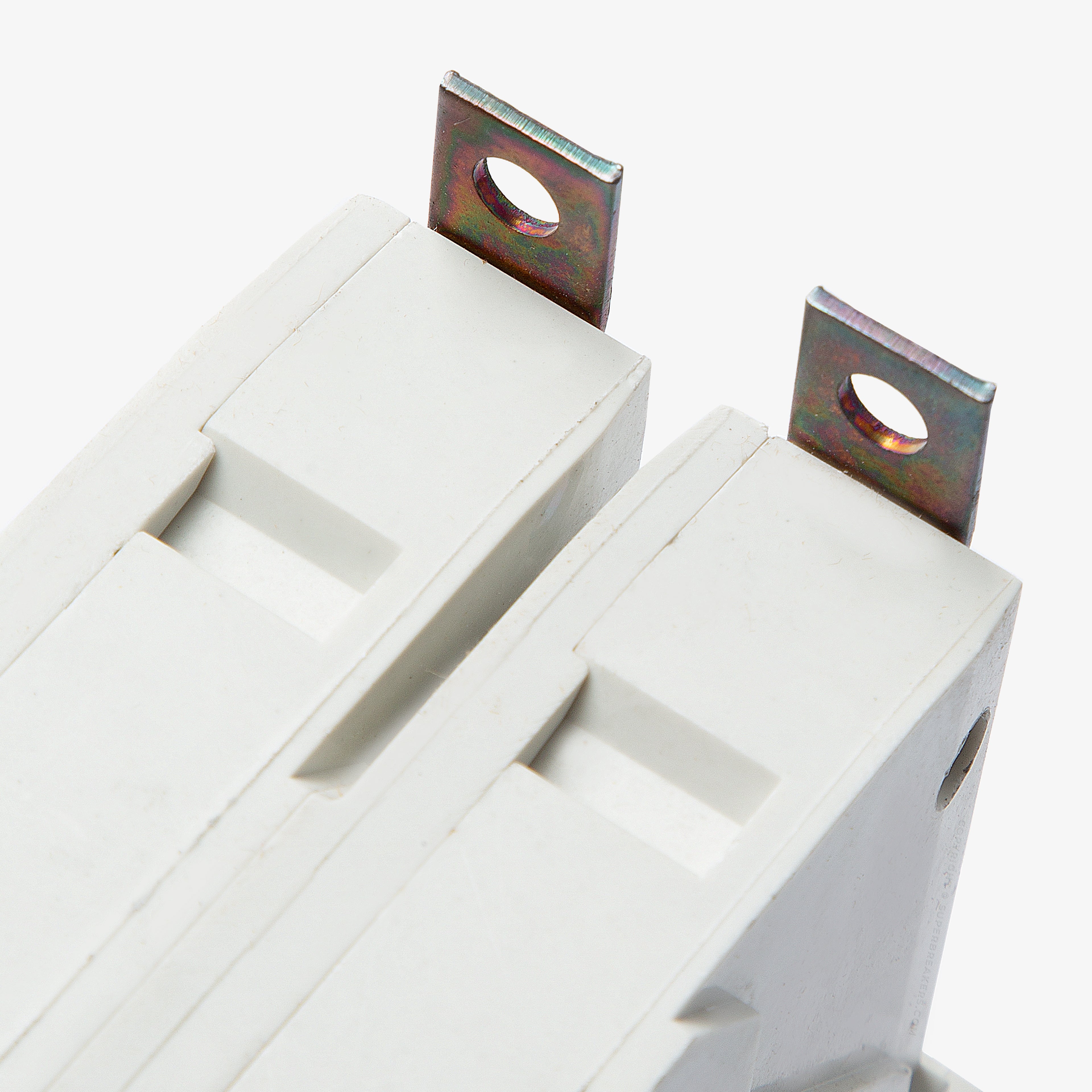

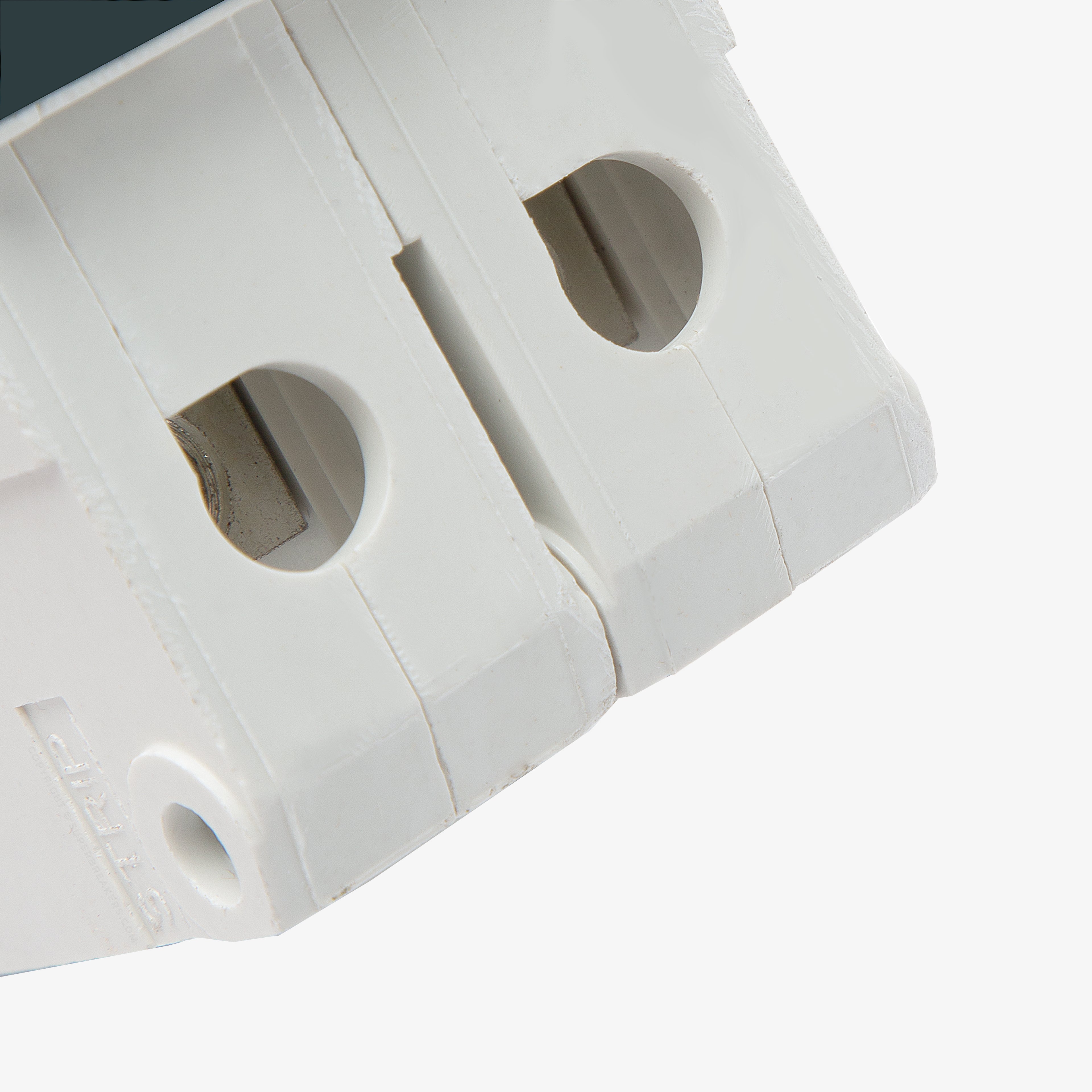

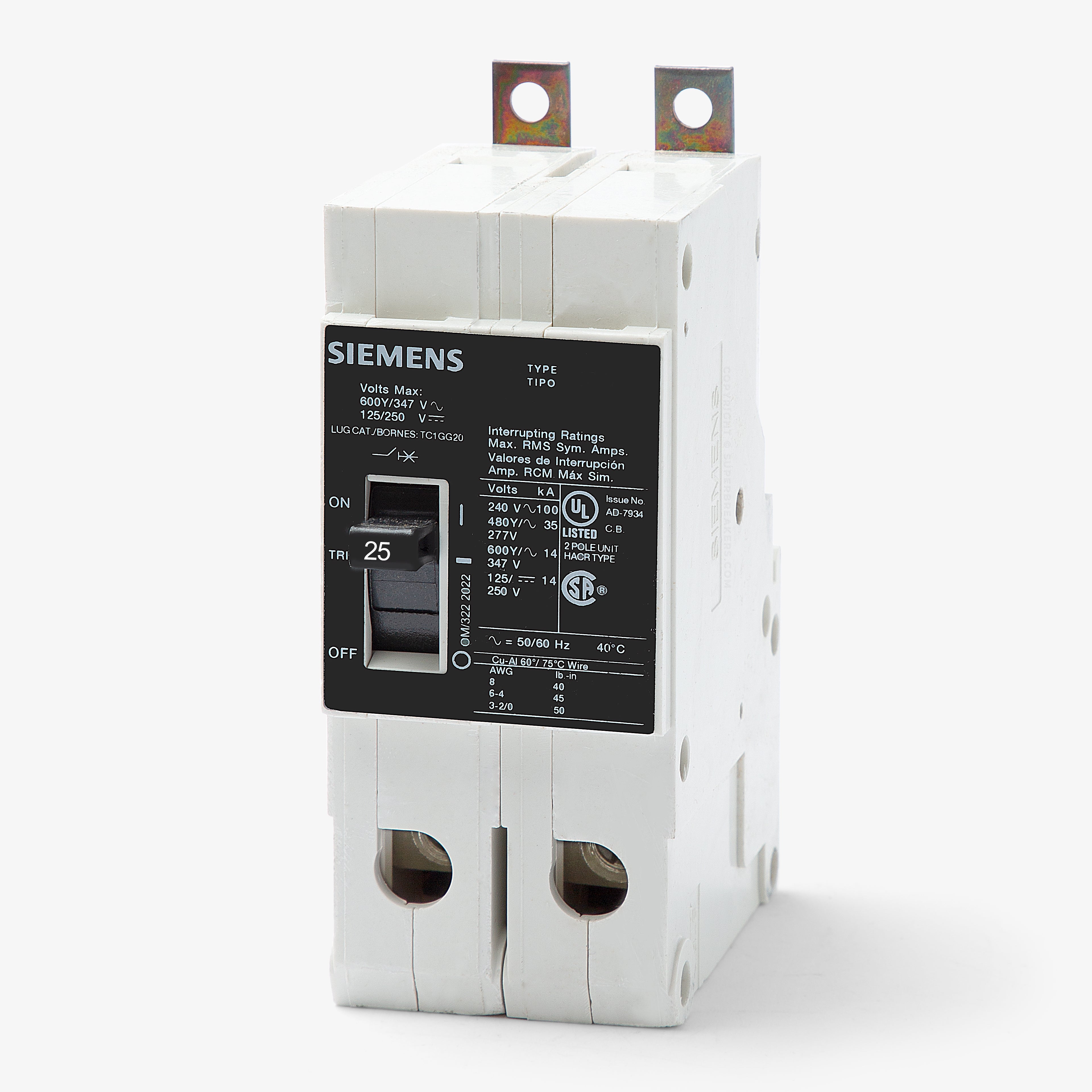

Siemens NGB2B025B - 25A 2 Pole Molded Case Circuit Breaker

New

$312.95 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed for commercial power distribution, the Siemens NGB2B025B is a 2-pole molded case circuit breaker rated for 25 amps. It utilizes proven thermal-magnetic trip technology to protect circuits effectively. This bolt-on breaker installs easily into Siemens P1, P2, P3, P4, and P5 panelboards. It is officially succeeded by the 3VA51 series when used with an adapter kit. With an interrupting rating of 100kAIC at 240V, the unit includes load side lugs and is fully HACR and HID rated.

Specifications

Brand Siemens
Series NGB
Amperage 25A
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Poles 2
Phase 1
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3, P4, P5 Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-6 AWG (Cu), 12-6 AWG (Al)
Max Wire 6 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, UL 489, NEMA AB 1
Approval CSA, HACR, HID, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed
