Siemens Q340 Miniature Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Siemens
Q340
Miniature Circuit Breaker
Brand
Siemens
SKU
Q340
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

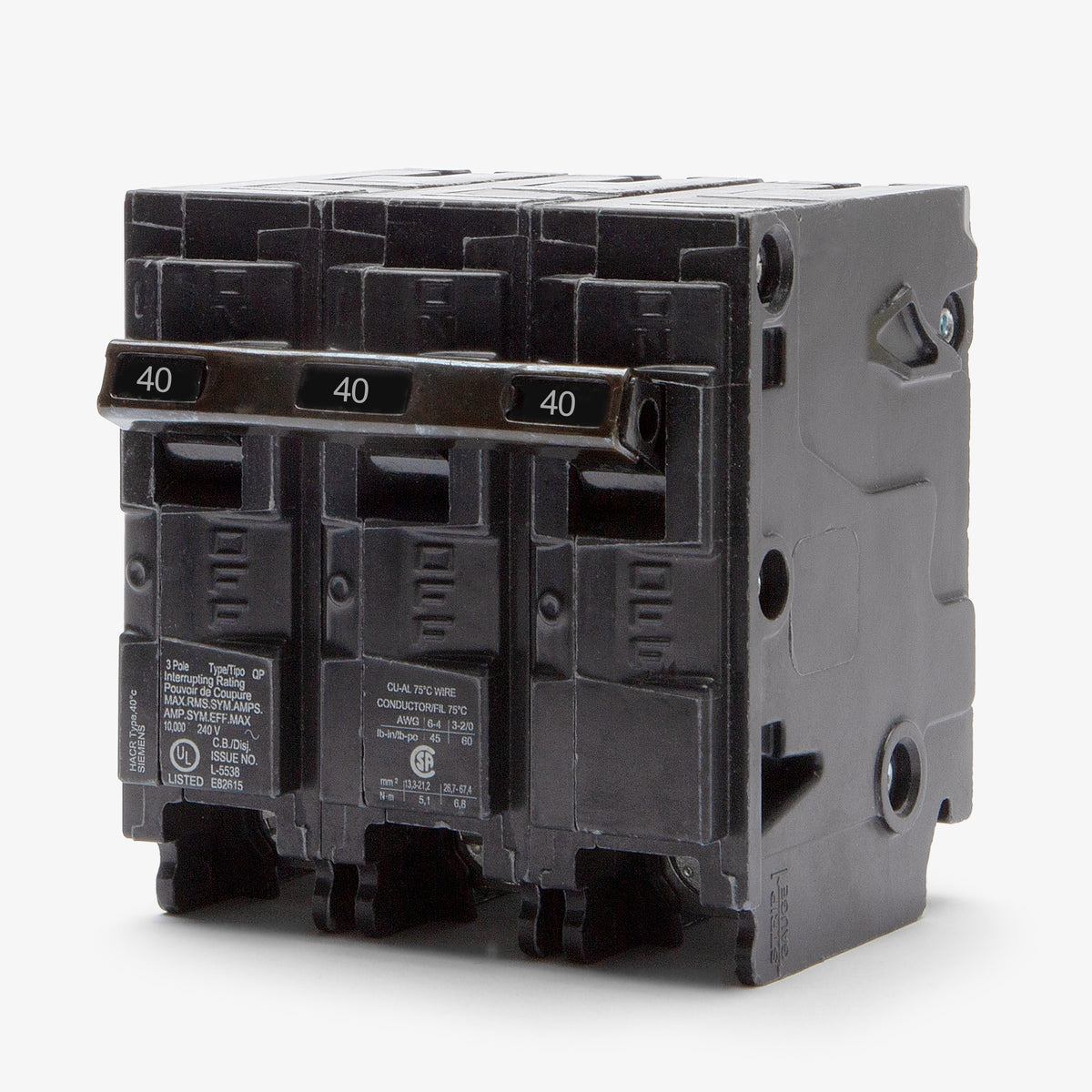

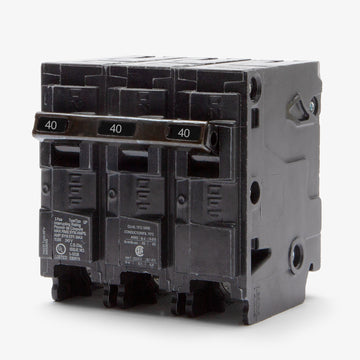

Siemens Q340 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens Q340 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q340 |
| Series | Q |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens Q340 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q340-R |
| Series | Q |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
25A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Part of the QP series, the Siemens Q340 provides 40A, 3-pole circuit protection for commercial and industrial applications. It utilizes thermal-magnetic technology to safely interrupt overloads. This plug-on breaker installs into compatible Siemens load centers and panelboards. It serves as a seamless replacement for discontinued MP340 breakers, making it ideal for system maintenance. Rated for 10kAIC at 240VAC, the unit features a common trip mechanism and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q340-R |
| Series | Q |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhich load centers accept the Siemens Q340 circuit breaker?
The Q340 Type QP breaker is designed for use in Siemens 3-phase PL, PN, SN, and ES series load centers, as well as compatible Siemens commercial panelboards.
Can the Q340 be used to replace legacy Murray or ITE breakers?
Yes. Siemens has officially designated Type QP breakers as the UL listed replacements for discontinued Murray Type MP breakers. The Q340 directly replaces the legacy Murray MP340 and original ITE Q340.
How much panel space is required to install the Q340?
As a 3-pole breaker with a standard 1-inch width per pole, the Q340 requires three adjacent full-size spaces in a 3-phase panelboard.
What are the catalog numbers for the higher interrupting rating versions of the Q340?
The standard Q340 has a 10kAIC rating. For systems with higher available fault current requirements, use the Q340H (Type QPH) for 22kAIC or the Q340HH (Type HQP) for 65kAIC at 240VAC.
Is the Siemens Q340 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires certified group motor protection.
Can a 3-pole Q340 be installed in a standard single-phase residential load center?
No. Three-pole circuit breakers require a 3-phase load center or commercial panelboard to properly align with and connect to three distinct internal bus bars.
