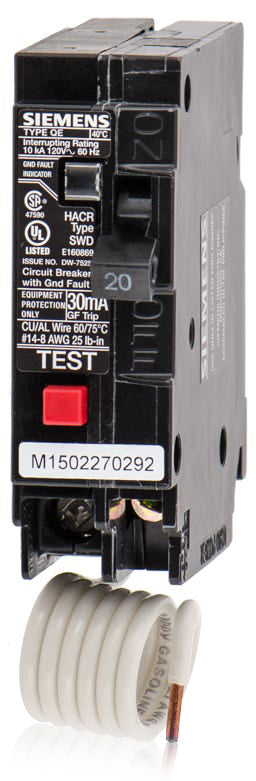

Siemens QE120H GFEP Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Siemens
QE120H
GFEP Miniature Circuit Breaker
Brand
Siemens
SKU
QE120H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QE120H - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Description
Engineered for equipment-level ground fault protection, this 20-amp single-pole unit features a 30mA trip sensitivity to safeguard machinery rather than personnel. It installs into Siemens EQ, PL, ES, and Ultimate load centers utilizing a standard plug-on configuration. Offering a higher 22kAIC interrupting capacity, this HACR and SWD rated component provides robust thermal-magnetic defense. Note that this specific model has been superseded by the Q120EGH in newer catalog updates.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QE120H |
| Series | QE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 10 AWG (Cu), 8 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, High Interrupting Capacity, Insta-Wire |
Product FAQs
6 answersWhat is the ground fault trip threshold for the QE120H?
The QE120H is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold. It is designed to protect equipment from damage, unlike Class A GFCI breakers which have a 4mA to 6mA threshold for personnel protection.
What is the difference between the Siemens QE120 and the QE120H?
The H suffix indicates a higher interrupting rating. The QE120H is rated for 22kAIC at 120V, whereas the standard QE120 is rated for 10kAIC.
What applications typically require a 30mA GFEP breaker?
GFEP breakers are commonly required by the NEC for fixed electric space heating, snow melting equipment, roof de-icing cables, and heat trace systems where a standard 5mA GFCI would be prone to nuisance tripping.
Is the Siemens QE120H compatible with older ITE load centers?
Yes, Siemens QE series breakers are UL listed for use in older ITE load centers that specify EQ, EQ-P, or QP type breakers on the panel label.
How is the neutral connection wired on the QE120H?
This breaker features a pigtail neutral wire. The coiled white wire must be terminated directly at the panel neutral bus bar to power the internal ground fault sensing circuitry.
Can the QE120H be installed in a Siemens plug-on neutral (PON) load center?
While it can physically fit in a Siemens PON load center, it does not utilize the plug-on neutral bus. You must still manually route and terminate the attached pigtail wire to the neutral bar.
