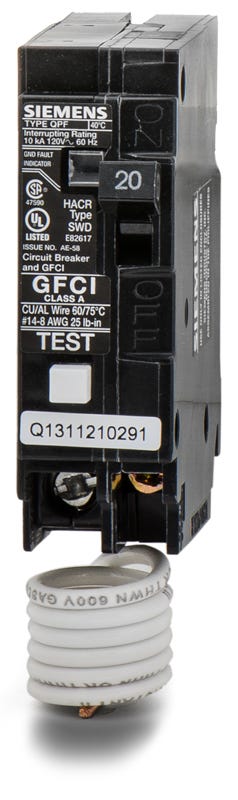

Siemens QF120P GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Siemens
QF120P
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF120P
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF120P - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
25A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Functioning as a drop-in replacement for the older QF120 model, this 20-amp single-pole interrupter provides essential 5mA Class A ground-fault safety. It mounts into traditional Siemens EQ, ES, PL, and Ultimate load centers utilizing a standard pigtail neutral connection. Engineered for residential wet locations like kitchens and bathrooms, the 10kAIC rated unit features automated self-testing to ensure ongoing reliability and compliance with the latest National Electrical Code requirements.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF120P |
| Series | QF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens EQ, ES, PL, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Self-Test |
Product FAQs
6 answersWhich load centers are compatible with the Siemens QF120P circuit breaker?
This breaker is designed for use in Siemens EQ, ES, PL, and Ultimate load centers. It mounts using a standard plug-in connection.
Does the QF120P require a plug-on neutral load center?
No. This breaker features a standard pigtail neutral connection. The white pigtail wire must be manually connected to the panel neutral bus bar for the ground fault protection to function.
What level of ground fault protection does the QF120P provide?
It provides Class A ground fault protection, which trips when a ground fault of 5mA is detected. This meets NEC requirements for personnel protection in wet locations like kitchens and bathrooms.
Does this breaker include an automated self-test feature?
Yes. It features a self-test and lockout function that continuously monitors the device to ensure the ground fault protection is operating correctly, complying with current UL 943 standards.
Can the QF120P replace older Siemens GFCI breakers?
Yes, it functions as a direct drop-in replacement for the older QF120 model, upgrading the circuit with modern self-testing capabilities.
Is the QF120P rated for HACR and SWD applications?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment, and SWD rated for switching duty applications.
