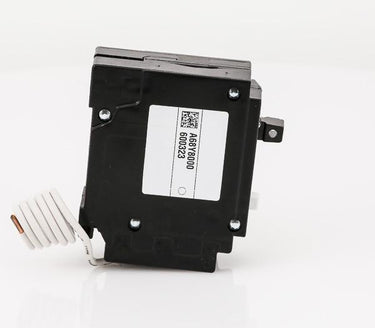

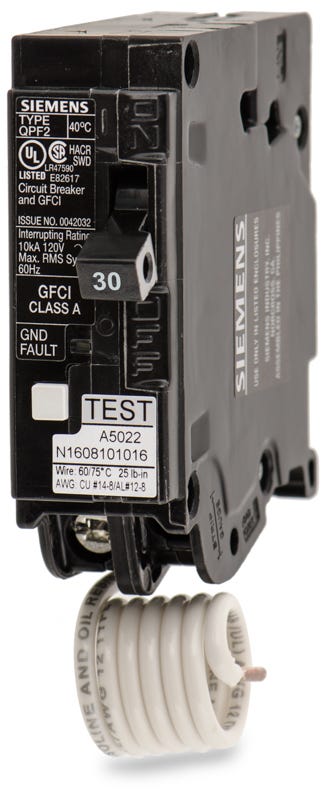

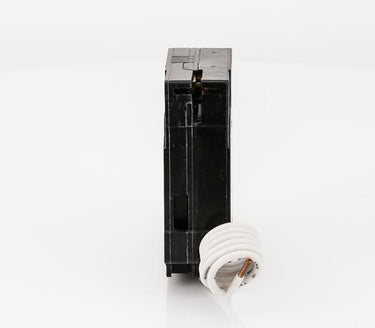

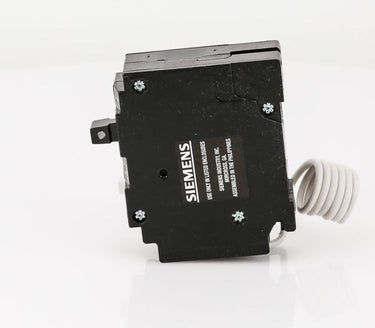

Siemens QF130A GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Siemens
QF130A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF130A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF130A - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
25A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Engineered for residential and commercial applications, this 30-amp ground fault circuit interrupter provides essential 5mA personnel protection. It mounts into standard Siemens PL, ES, EQ, and Ultimate series load centers, serving as a reliable replacement for older QF130 models. Featuring a traditional pigtail neutral wire and a 10kAIC rating, the unit ensures compliance with modern NEC requirements for damp or wet locations while offering convenient self-testing capabilities.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF130A |
| Series | QF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Insta-Wire |
Product FAQs
8 answersWhich load centers are compatible with the QF130A?
This breaker is designed for use in Siemens PL, ES, EQ, and Ultimate series load centers.
Can I use the Siemens QF130A in an older Murray panel?
Yes, Siemens QP and QF style breakers are the UL-listed replacements for legacy Murray load centers that require plug-on breakers.
What level of ground fault protection does the QF130A provide?
It provides Class A ground fault protection, meaning it is designed to trip when a ground fault of 5mA or higher is detected.
How does the neutral connection work on the QF130A?
This breaker features a traditional pigtail neutral wire, which must be connected directly to the panel neutral bus bar for the GFCI protection to function properly.
What is the difference between the QF130A and the QF130AN?
The QF130A uses a traditional pigtail neutral wire, while the QF130AN is a Plug-On Neutral breaker that connects directly to the neutral bar without a pigtail. The QF130AN is designed specifically for Siemens SN and PN series load centers.
Does this breaker require a dedicated neutral?
Yes, as a 1-pole GFCI breaker, it requires a dedicated neutral for the circuit it protects. The circuit neutral wire connects to the breaker, and the breaker pigtail connects to the panel neutral bus.
Does the QF130A include Arc Fault protection?
No, the QF130A is strictly a Ground Fault Circuit Interrupter. It does not provide arc fault protection.
Does the QF130A replace the older QF130 model?
Yes, the QF130A is the direct replacement for the legacy QF130. The updated A version adds modern self-testing capabilities required by updated UL 943 standards.
